Loading Port:Shanghai
Payment Terms:TT
Min Order Qty:1 piece pc
Supply Capability:100000 pieces /month pc/month

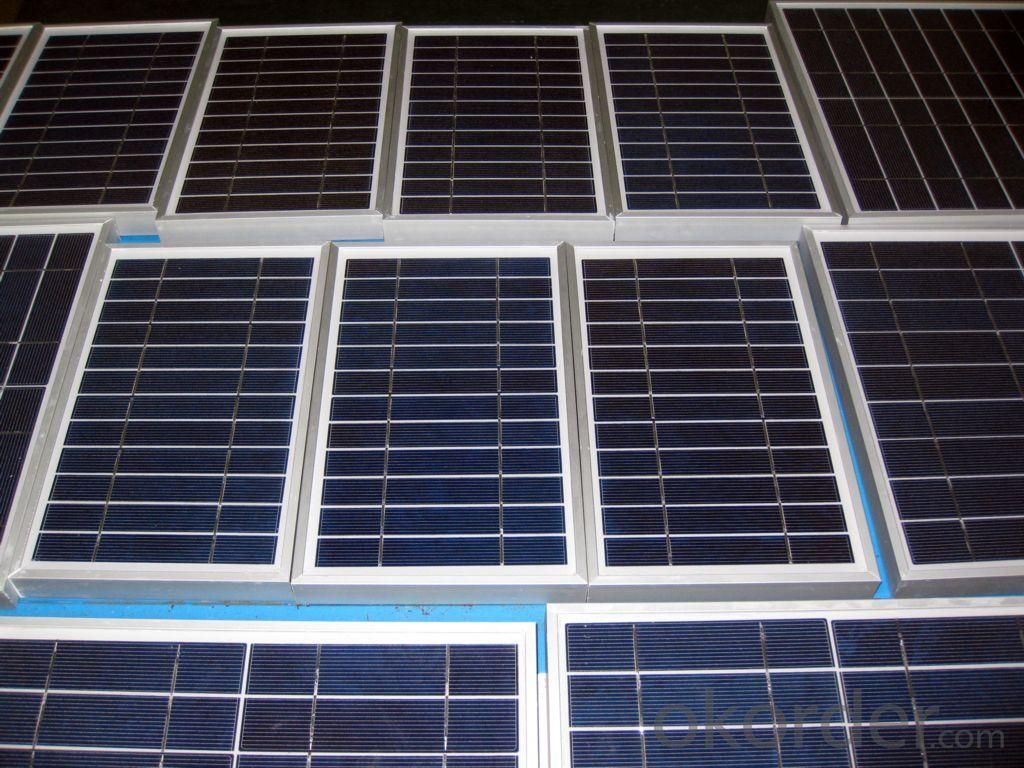

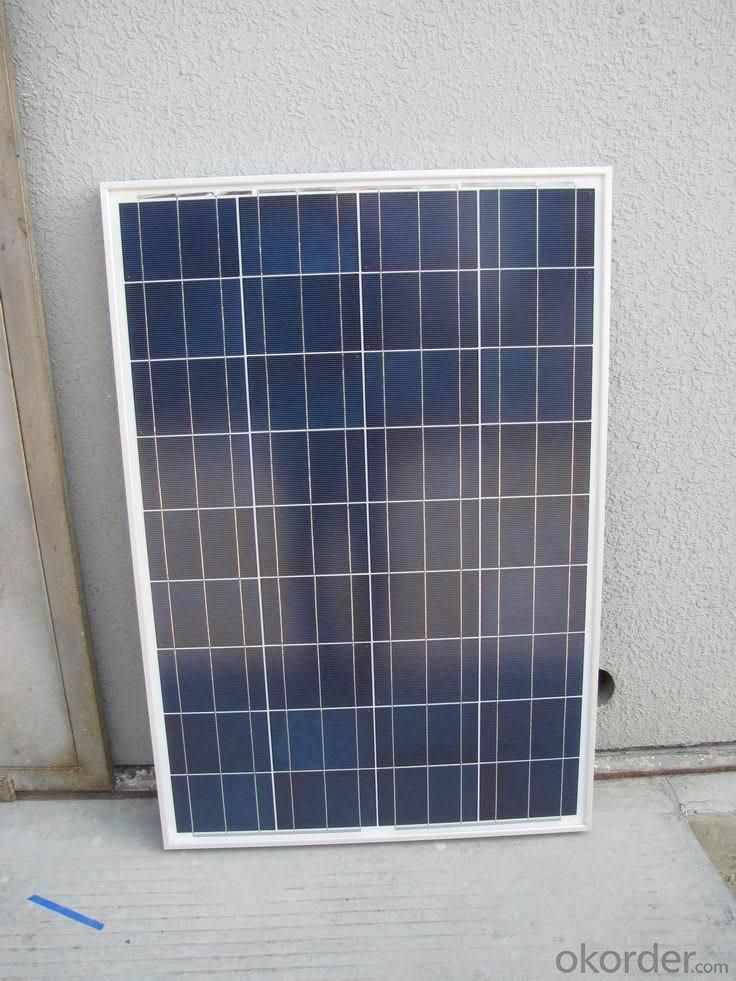

Solar Poly Panels (100W-120W)
Introduction of Solar Poly Panel (100W-120W)
High and stable conversion efficiency based on over 8 years professional experience
High reliability with guaranteed ±3% output
Power tolerance proven materials, tempered front glass, and a sturdy anodized aluminum frame
allow modules to operate reliably in multiple mountily configuration.
Combination of high efficiency and attractive appearance
Characteristics of Solar Poly Panel (100W-120W)
I Solar Cell : High efficiency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.
II Tempered glass (toughened glass): Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
III EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.
IV AI frame: Without screw, corner connection. 6 holes on the frame can be installed easily.
V Junction box: Multi function junction box with water proof.
VI Long lifetime: ≥25 years; Less power decrease.
VII Good performance of preventing from atrocious weather such as wind and hails.
VIII Resisting moisture and etching effectively, not effected by geology. .
Standard Test Conditions of Solar Poly Panel (100W-120W)
The opto-electrical specifications shown below are stabilized values being measured at Standard Test Conditions of multicrystalline silicon Solar Panel, Irradiance: 1000W/m2, Spectrum: AM1.5 at 25°C, The info below is subject to manufacturing tolerances. Where appropriate minutes of measurement are available and are used for the dimensioning of the installation.
Advantages of Solar Poly Panel (100W-120W)
• CNBM Solar performance guarantees for 25 years
• 2 years guarantee for workmanship for multicrystalline silicon Solar Panel
• Timeliness of delivery
Characteristics of Solar Poly Panel (100W-120W)
Max Power Voltage Vmp (V) | 17.8V | 18.4V | 17.8V |
Max Power Current Imp (A) | 6.18A | 6.52A | 6.74A |
Open Circuit Voltage Voc (V) | 22.4V | 23.0V | 22.4V |
Short Circuit Current Isc (A) | 6.61A | 6.97A | 7.21A |
Max Power Pm (W) | 100W | 110W | 120W |
Temperature Coefficient of Cells
NOCT | 47℃±2℃ |
Temperature Coefficients of Isc (%/℃) | 0.064 |
Temperature Coefficients of Voc (%/℃) | -0.33 |
Temperature Coefficients of Pmp (%/℃) | -0.45 |
Mechanical Data of Solar Poly Panel (100W-120W)
Power | 100W | 110W | 120W |
Dimension | 1120×670×30 mm | 1190×670×30 mm | 1330×670×30 mm |
Weight | 9.1kg | 9.5kg | 10.6kg |
Tolerance | ±3% | ±3% | ±3% |
The dimension of the modules can be changed according to the demand of clients
Limits
Operating Temperature | –40 °C to +85°C |
Storage Temperature | –40 °C to +85°C |
Max System Voltage | 700V |
Guarantee of Solar Poly Panel (100W-120W)
Products Guarantee | 2 yrs free from defects in materials and workmanship |
Performance Guarantee | No less than 90% within 10yrs and no less than 80% within 20yrs |
Certificates | IEC, ISO, TUV, CE |
The Equipment of Solar Poly Panel (100W-120W)
The Production Line of Solar Poly Panel (100W-120W)
