Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:-
Supply Capability:-

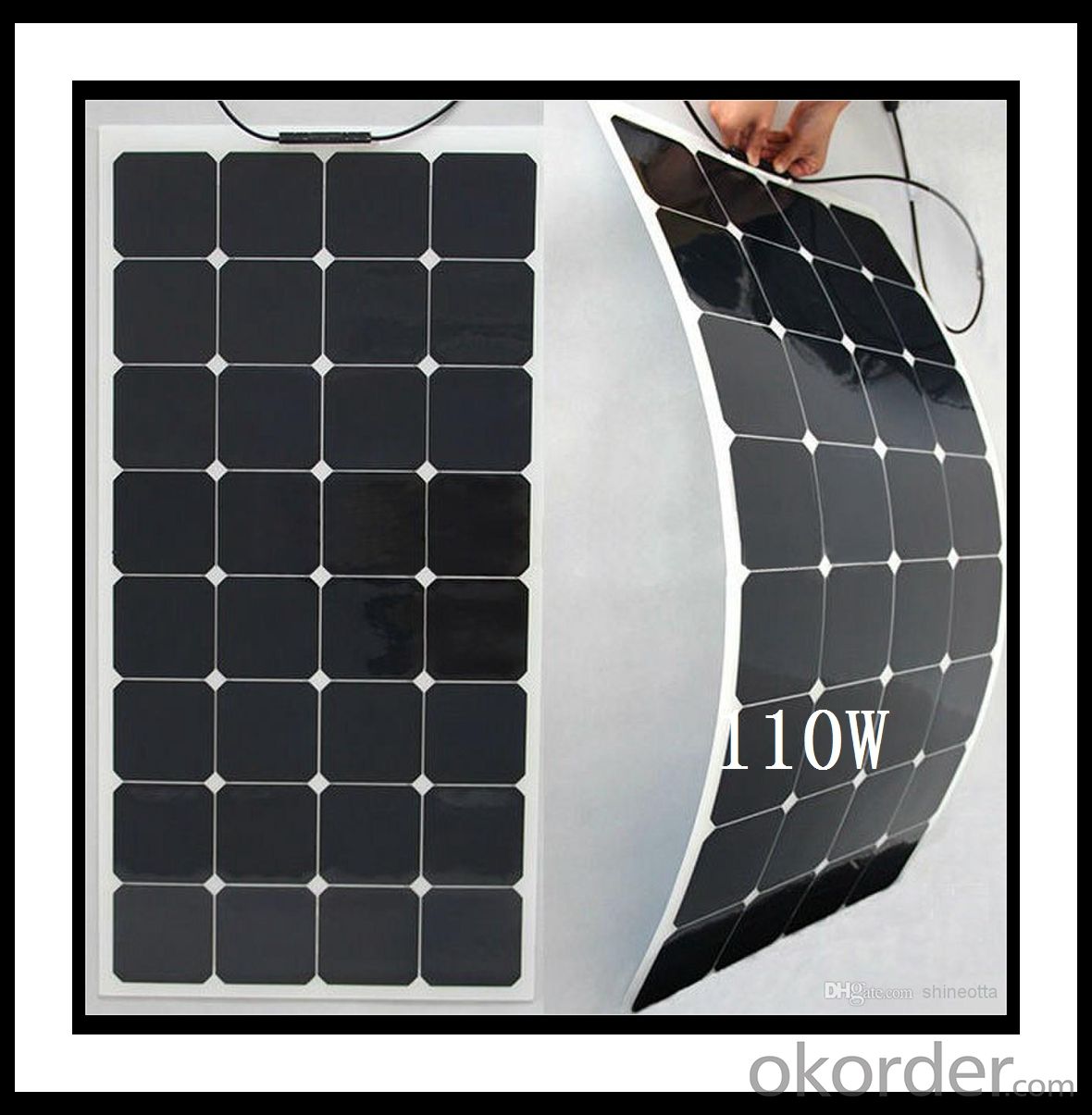

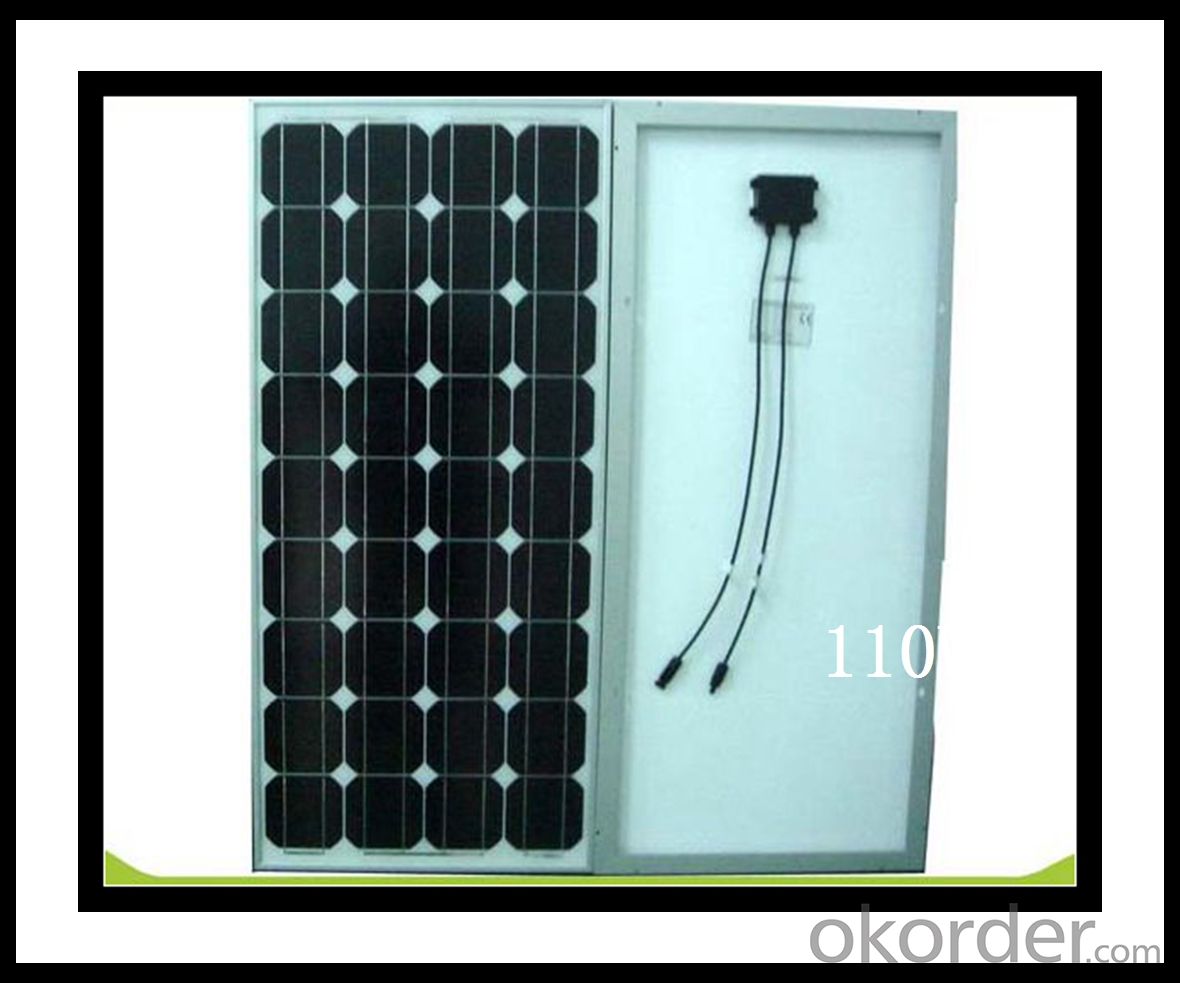

Solar Module Descriptions:
Our solar module are designed as per the set industry standards and can be bought at market leading Available with us in various dimensions, these modules are stringently tested under define parameters before the final dispatch by our professional who hold rich industry experience in this domain.
Electrical Characteristics
Module Power (W) | 110> Pm>115 |
Max –Power (W) | 110 |
Max-Power Voltage (V) | 17.5 |
Max-Power Current (A) | 6.16 |
Open-Circuit Voltage (V) | 22.0 |
Short-Circuit Current (A) | 6.81 |
Max-System Voltage (VDC) | 600V(UL)/1000V(IEC) |
Max. Series Fuse (A) | 10 |
Pm Temperature Coefficients (%/℃) | -0.4601 |
Isc Temperature Coefficients (%/℃) | 0.0981 |
Voc Temperature Coefficients (%/℃) | -0.5186 |
NOCT Nominal Operating Cell Temperature (℃) | 45+ 2 |
Maximum load rating ( Pa) | 5400 |
Mechanical Characteristics
Cable type, Diameter and Length | 4mm2, TUV certified, 1000mm |
Type of Connector | Compatible with MC4 plug |
Arrangement of cells | 4*9 |
Cell Size | 125*125 |
Dimension | 1195*541*40 |
Weight | 8Kg |
No. of Draining Holes in Frame | 10 |
Glass, Type and Thickness | High Transmission, Low Iron, Tempered Glass 3.2mm |
Features
Solar Cells: High efficiency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.
Tempered glass: Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.
All frames: Without screw, corner connection. 8 holes on the frame can be installed easily.
Junction box: Multi function junction box with water proof.
Long lifetime: 25 years, less power decrease.
Good performance of preventing from atrocious weather such as wind and hails.
Resisting moisture and etching effectively, not affect by geology.
The certificate issued by international authority: ISO Quality Management systems, CE, TUV, VDE.
FAQ
Q: Do you have any MOQ limit?
Our MOQ is 200 pieces.
Q: How long is the warranty period for the solar modules?
15 years 90% of its nominal power rating.
25 years 80% of its nominal power rating
