Loading Port:China main port
Payment Terms:TT or LC
Min Order Qty:31 pc
Supply Capability:620 pc/month

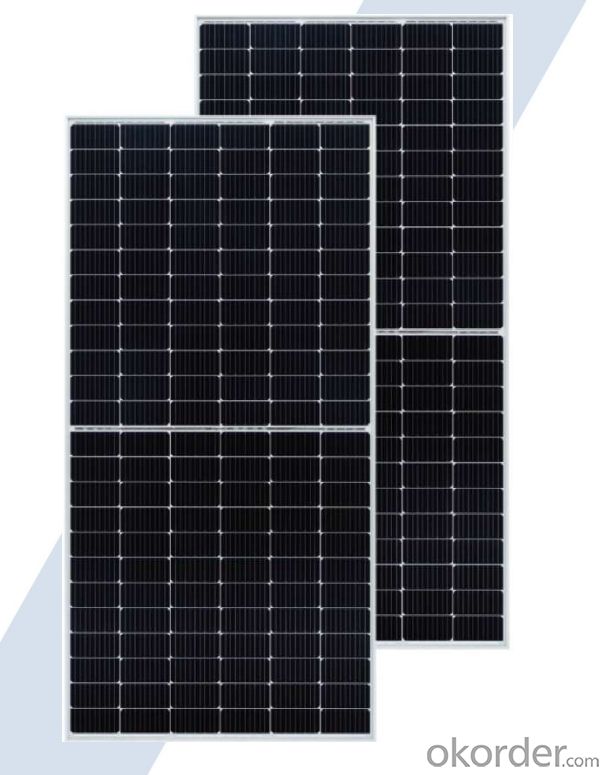

NAME: 18-MH72 N type Topcon SMBB Half Cell 555-575W
Features:
Half-cut cell technology (lower internal current, lower power loss);
Excellent weak light performance (More power output in weak light condition);
Lower the risk of hot spot (Special design with lower hot spot temperature);
Lower LCOE (Higher Power Generation, Lower LCOE).
Warranty:
15 years ----Product quality and process guarantee
25 years ----Linear power guarantee
2% First year power degradation
0.55% Annual degradation over 25 years
Qualification:
IEC 61215; IEC 61730; ISO 9001; ISO 14001; ISO 45001
Electrical Characteristics
Module Type | 18- MH72-555 | 18- MH72-555 | 18- MH72-565 | 18- MH72-570 | 18- MH72-575 | |
Maximum Power (Pmax/W) |
555 |
560 |
565 |
570 |
575 | |
Open Circuit Voltage (Voc/V) |
49.68 |
49.77 |
49.86 |
49.94 |
50.02 | |
Short Circuit Current (Isc/A) |
14.12 |
14,19 |
14.26 |
14.32 |
14.4 | |
Voltage at Maximum Power (Vmpp/V) |
42.1 |
42.25 |
42.4 |
42.55 |
42.7 | |
Current at Maximum (Impp/A) |
13.18 |
13.25 |
13.33 |
13.4 |
13.47 | |
Module Efficiency (η%) |
21.5 |
21.7 |
21.9 |
22.1 |
22.3 | |
Temperature Coefficient of Pmax -0.35%/℃ Temperature Coefficient of Voc -0.27%/℃ Temperature Coefficient of Isc +0.05%/℃ Working Temperature -40℃-80℃ Normal Module Operating Temperature （NMOT） 45±2℃ | ||||||
Mechanical Characteristics | ||||||
Cell type | Monocrystalline silicon 182mm | |||||
Number of cells | 144(6*24) | |||||
Dimensions | 2279*1134*35mm | |||||
Weight | 27.5kg | |||||
Cables | 4mm², 300mm OR customized length | |||||
Junction Box | IP68 Rated | |||||
Maximum System Voltage | 1500VDC | |||||
Glass | 3.2mm Tempered glass | |||||
Frame | Anodized aluminum ally | |||||
Connectors | MC4 compatibility | |||||
Packing | 31pcs/Pallet | |||||
