Prices Solar Panels - Solar Panel & Solar Module 250w in Brand CNBM

Product Description:

1.Structure of Solar Module Description

CNBM Solar's photovoltaic module is designed for designed for large electrical power requirement. It is the optimal choice for both on-grid and off-grid power systems. CNBM Solar offers high performance of power per square foot of solar array.

2.Main Features of the Solar Module

Solar Cell: High efficency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.

Tempered glass: Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.

EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.

Strong aluminum frames to strengthen the load hold and to stand against high wind.

Junction box: Multi function junction box with water proof.

Long lifetime:  ≥25 years; Less power decrease.

Good performance of preventing from atrocious weather such as wind and hails.

Resisting moisture and etching effectively, not effected by geology.

The certificate issued by international authority: UL, TUV, IEC, VDE, CE.

Quick Details

Packaging & Delivery

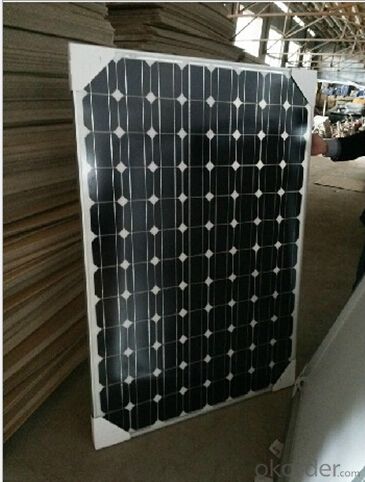

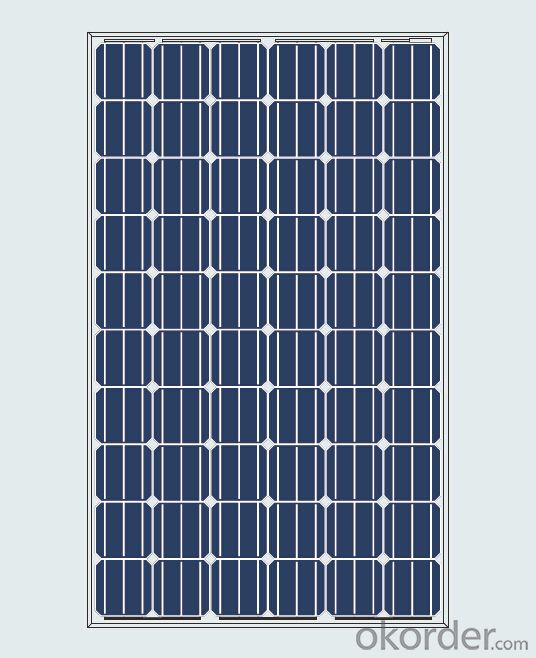

3.Solar Module Images

4.Solar Module Specification

- Mono 250W solar panel;
-More cost effective;
-25 years guarantee;
-Full certification to selling the world.

Product Description

 High efficiency mono crystalline solar panel PLM-250M-60 series

• Anti-reflective coating: AR used reduce the reflectivity enhance transmittance.

• Tempered Glass: Low Iron and AR coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%

• EVA: Transmittance ≥91% , Adhesive Capacity >85%

• Cell: 17.9% of high efficiency solar cells to sure 15.7% module efficiency

• Back sheet: Using higher quality back sheet to prevent destroying and water , it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.

• Aluminum Frame: Anodized aluminum alloy to effectively improve the corrosion resistance and strength

  Certification:





  Power range:220w-270w



  Module	PLM-230M-60	PLM-235M-60	PLM-240M-60	PLM-245M-60	PLM-250M-60	PLM-255M-60	PLM-260M-60	PLM-265M-60	PLM-270M-60
  Pm	230	235	240	245	250	255	260	265	270
  Vmp	28.94	29.38	29.86	30.21	30.5	30.92	31.18	31.48	31.73
  Imp	7.95	8	8.04	8.11	8.2	8.25	8.34	8.42	8.51
  Voc	37.64	37.7	37.77	37.86	38	38.1	38.2	38.31	38.42
  Isc	8.52	8.59	8.64	8.7	8.78	8.84	8.92	8.96	8.99

  Maxium system voltage     1000VDC

  STC:Irradiance 1000W/m², Temperature 25°c,AM=1.5



  Mechanical Characteristics

  Cells size(mm)	156X156
  Modules size(mm)	1650X992X46
  No. of cells	60(6X10)
  Weight(KG)	19.6
  No.of mounting holes	8
  No.of waterspout	16



  Temperature Coefficient:

  NOCT	45°C±2°C
  Temperature coefficient of Isc	0.05%/°C
  Temperature coefficient of Voc	-0.33%/°C
  Temperature coefficient of Pmax	-0.44%/°C
  Power Tolerance	0/+3%
  Working temperature	-40°C to 85°C









Packaging & Shipping

 Package Information:

Product Warranty:

10 years for the workmanship
12 years power output no less than 90%
25 years power output no less than 80%

5.FAQ of Solar Module

1. Q: Do you have your own factory?

    A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.

2. Q: How can I visit your factory?
    A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
    A: Usually we do not offer free sample

4. Q: Could you print our company LOGO on the nameplate and package?

    A: Yes, we can do that.
