Alumil Solar Mounting Systems - Solar Panel Mounting System Type TT-EC-F30

Product Description:

1. Structure of Solar Panel Mounting System Type TT-EC-F30

PV Mounting brackets are special solar photovoltaic systemfor placing, installing, fixing the solar panel design. General materials are aluminum, steel structure, stainless steel. PV mounting products can be used at groundmounting system, flat roof mounting system, adjustable angle roof rack system,inclined roof rack system, column bracket system.

We will calculate the completestructural analysis and create a complete project plan to make sure reliablestructural safety.We provide high quality HDG steel and aluminum products forthe ground mounting sysytem,witch can make sure the security and durability ofthe project.

2. Main Features of Solar Panel Mounting System Type TT-EC-F30

n  The rail bracket is easy to install. Rail connecting member can freelyadjust the length, the stent may be pre-installed on the roof, and thenappropriately adjusted according to the size of the solar panel.

n  The combination of strong, aluminum rails and card blocks fora variety of venues and a variety of materials roofs (such as metal, ceramic  and other kinds of tile surface)

n  Component compatibility, and rail can meet PV modules fromdifferent manufacturers.

n  Accuracy, the length of the rail to the nearest millimeter,the construction process, not because of the length is too long or too shortfor the second cut.

n  Flexible assembly, rail hooks can adjust the spacing modulearray and tile has been installed successfully address the uneven roofconstruction led to difficult problems.

n  Quality assurance, the stent main material is high-qualityaluminum and stainless steel, effectively prevent corrosion of oxidation.Products can be recycled, reducing environmental pollution.

n Carried out strictly according to the current specificnational standards

n Perfectly optimized components and complete structuralanalysis for the sysytem

n High corrosion resisitance ensure the stability and highdurability

n Total test and certification make sure the high quality ofthe products

n Maximum pre-assembled in factory,quick mounting onsite,timesaving

3.  Solar Panel Mounting System Type TT-EC-F30 Specifications

Technical Data

n Design Period:25 years

n Installation Site: Open area

n Array Angle:10°~60°

n ModuleType:Framed or unframed

n Material:Q235B,Al 6063-T5,Al 6005-T5,StainlessSteel A2-70

n Coating:HDG/Anodised

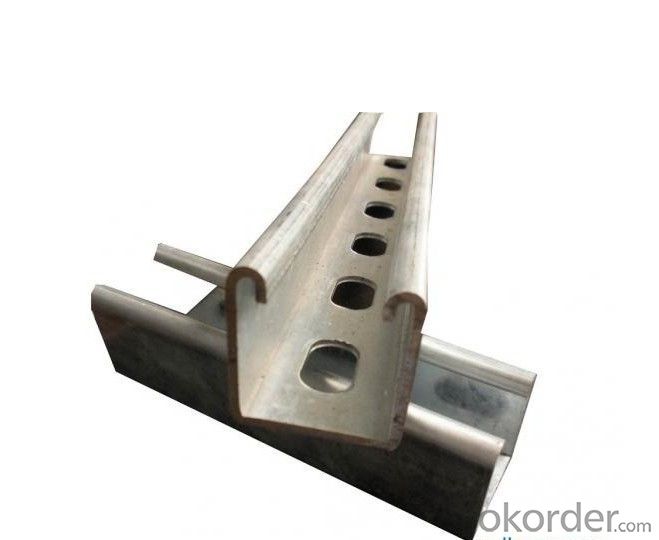

4.  Solar Panel Mounting System Type TT-EC-F30 Images

5. FAQ

Q1.How about your design?

Re: Product design and development process in strict accordance with GB, the German standards and other internationalstandards to ensure products reach the world advanced level.

Q2. Do you get certificate or test for your products?

Re: Yes, and client can require test before delivery.
