Loading Port:China main port
Payment Terms:TT or LC
Min Order Qty:1000 watt
Supply Capability:1000000 watt/month
| Place of Origin: | Guangdong China (Mainland) | Brand Name: | Sungold | Model Number: | SGM-330W |
| Specification: | Normal | Application: | Commercial | Output Voltage (V): | 36V |
| Load Power (W): | 330W | Solar Power (W): | 330W | Mono solar panel: | 330W/36V |
| Solar panel size: | 1956 x 992 x 50mm | Solar cell brand: | German Bosch | Max system voltage: | 1000VDC |
| Packaging Detail: | Carton box + plywood pallet |
| Delivery Detail: | 10-12 working days |
Specifications
330W mono solar panel with:
1. Fast delivery time;
2. Top quality;
3. Competitive price.

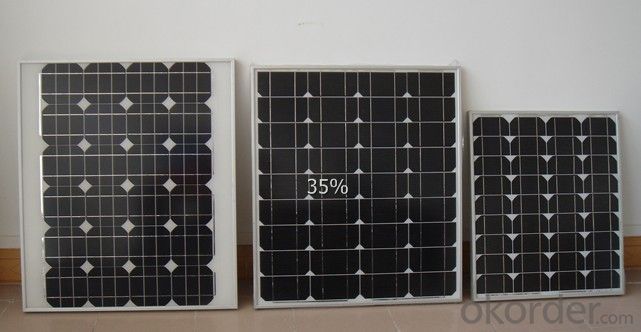

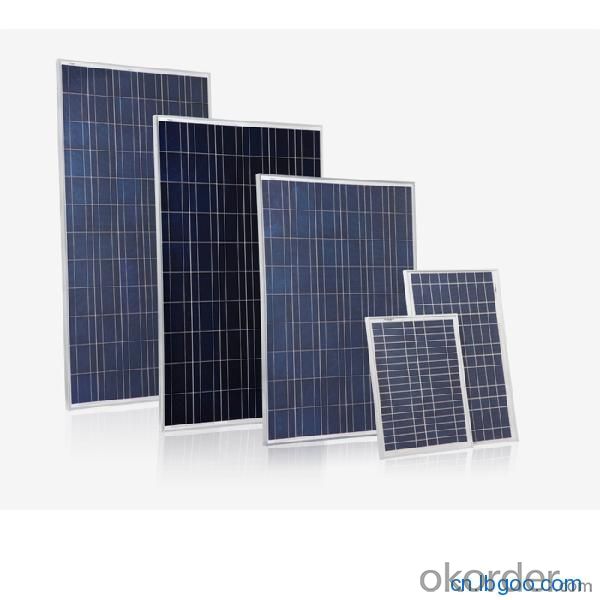

3.Solar Module Images
4.Solar Module Specification
Mono 330W solar panel from China:
| Electrical Characteristics | ||||||
| Model | SGM-330W | |||||
| Cells size (mm): | 156*156 | |||||
| Cells per module: | 6x12pcs | |||||
| Module size (mm): | 1956*992*50 | |||||
| Power tolerance: | 0 - 3% | |||||
| Nominal peak power(WP): | 330 | |||||
| Nominal voltage(V): | 35.5 | |||||
| Nominal current (A): | 9.3 | |||||
| NOCT: | 45+/-2°C | |||||
| Voltage temperature coefficient: | -0.33%/°C | |||||
| Current temperature coefficient: | +0.05%/°C | |||||
| Power temperature coefficient: | -0.23%/°C | |||||
| Open circuit voltage (Voc): | 42.6 | |||||
| Short cirsuit current(Isc): | 10.04 | |||||
| Conversion efficiency: | 0.188 | |||||
| Operating temperature: | -40 to+85°C | |||||
| Max system voltage: | 1000V DC | |||||
Warranty: the quality assurance is that the power decline not exceeds 10% in ten year and 20% in twenty-five years. We ensure that our panels' life is 25 years or more, and our workmanship warranty is 5 years.
....
5.FAQ of Solar Module
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
5. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
6. Q: How do you overcome the anti-dumping and countervailing duties?
A: We can use original Taiwan solar cells, and provide Certificate of Origin of Taiwan.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
8. Q: Do you have solar project engineer who can guide me to install system?
A: Yes, we have a professional engineer team. They can teach you how to install a solar system.
