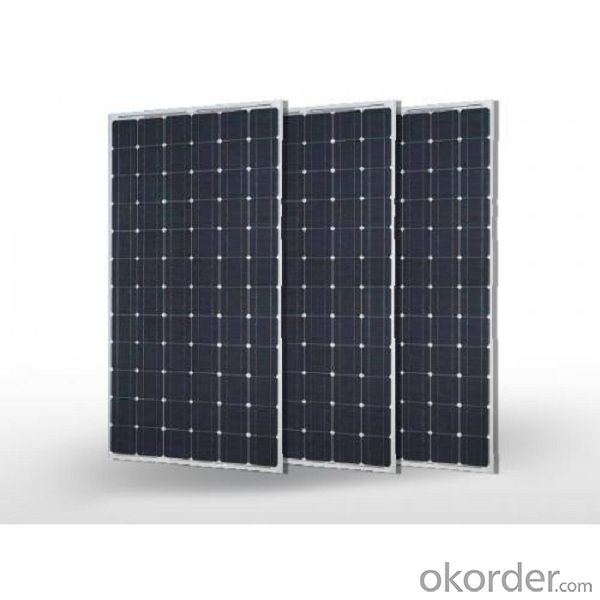

Sol Solar Panels 260W - High Efficiency Solar Panels for Sale

Product Description:

Rated maximum power (Pmax)   260W

Open circuit voltage (vOC)   37.30

Short circuit current (Isc)  8.78

Maximum power voltage (Vmp)  30.10

Maximum power current (Imp)  8.31

Cell efficiency (%)          17.50%

Max system voltage (VDC)       1000V DC

Temperature coefficient of Vm -0.241%/K

Temperature coefficient of Im +0.033%/k

Temperature coefficient of power -0.37%/K

Maximum Series Fuse Rating     15A

Solar cell and configuratiou   60pcs(6*10)in series,156*156mm monocrystalline

Junction box                    IP65,1000VDC,TUV certified;6 pcs Schottky By-pass diodes

Cable type & CONNECTOR          4m㎡,TUV certificated,0.9m length;MC4

Encapsulation           low iron tempered glass,3.2mm thickness,light transmission above 91%;TPT and fast cure EVA

Farame                  clear anodized aluminum alloy,50/45mm thickness,silver

Dimension (l*W*H)       1640*990*50mm/45mm

Weight                         20KG/19KG

Heavy mechanical load salient features   540Pa (ACCORDING TO ICE61215)

Hail impact test                lce ball dianeter 25mm,23m/s

Operating temperature             -40℃~+85 ℃

Standard test conditions: STC:AM=1.5,1000W/m2,cells temperature 25℃

Power tolerance:±3% (can be provided 0~±3%)

GENERAL INFORMATION

The installation of PV modules requires a great degree of skill and should only be performed by a qualified licensed professional, including licensed contractors and licensed electricians. Please be aware that there is a serious risk of various types of injury occurring during the installation including the risk of electric shock. All CUSTOMER modules are equipped with a permanently attached junction terminal box that will accept variety of wiring applications or with a special cable assembly for ease of installation, and they do not require assembly.

Solar panel working process

In addition to being the ultimate source of all life on earth, the sun is an infinitely renewable, completely pollution-free source of electricity. Instead of burning fossil fuels dug up from the ground in a big power plant – a very 19th century, industrial age approach, when you think about it – solar panels convert sunlight directly into electricity, with no harmful emissions.

The basic unit of a solar panel is a solar cell, which usually consists of one or two layers of silicon-based semiconductor wafers. When struck by the photons in sunlight, the solar cell generates an electrical charge due to the "photovoltaic effect" – which is a pretty good name, since it produces voltage from photons. The flow of these electrons moves in a steady electrical current from one side of the cell to the other.
