Loading Port:China main port
Payment Terms:TT or LC
Min Order Qty:20000 watt
Supply Capability:10000000 watt/month
1. Structure of Solar Panel 150W with TUV IEC MCS INMETRO IDCOL SONCAP Certificates Description
Solar panel refers either to a photovoltaics (PV) module, a solar hot water panel, or to a set of solar photovoltaicsmodules electrically
connected and mounted on a supporting structure. A PV module is a packaged, connected assembly of solar cells. Solar panels can be
used as a component of a larger photovoltaic system to generate and supply electricity in commercial and residential applications. Each
module is rated by its DC output power under standard test conditions, and typically ranges from 100 to 320 watts. The efficiency of a
module determines the area of a module given the same rated output – an 8% efficient 230 watt module will have twice the area of a 16%
efficient 230 watt module. There are a few solar panels available that are exceeding 19% efficiency. A single solar module can produce only
a limited amount of power; most installations contain multiple modules. A photovoltaic system typically includes a panel or an array of solar
modules, aninverter, and sometimes a battery and/or solar tracker and interconnection wiring.
2. Main Features of the Solar Panel 150W with TUV IEC MCS INMETRO IDCOL SONCAP Certificates
• Long Service Life
• High Efficency Solar Cells
• Special Aluminum Frame Design
• High Transmission,Low Iron Tempered Glass

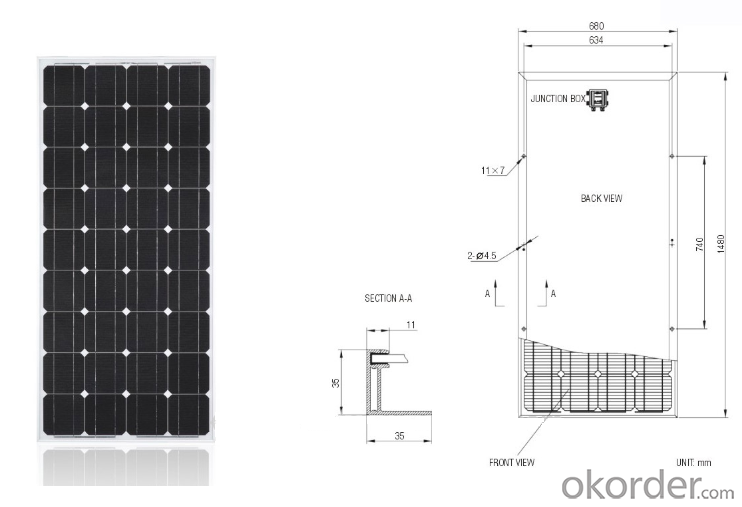

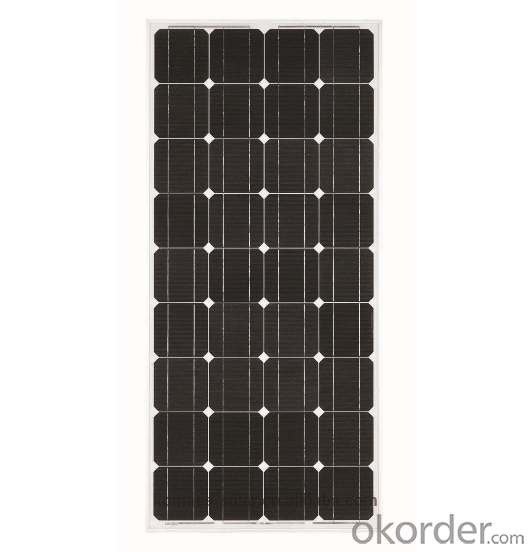

3. Solar Panel 150W with TUV IEC MCS INMETRO IDCOL SONCAP Certificates Images
4. Solar Panel 150W with TUV IEC MCS INMETRO IDCOL SONCAP Certificates Specification
ELECTRICAL CHARACTERISTICS | ||||||
| Model Number | KM130(6) | KM135(6) | KM140(6) | KM145(6) | KM150(6) | |
| Maximum Power as per STC | Pmax(W) | 130 | 135 | 140 | 145 | 150 |
| Power Tolerance | % | ±3% | ||||
| Maximum Power Voltage | Vm(V) | 17.96 | 18.14 | 18.36 | 18.15 | 18.28 |
| Maximum Power Current | Im(A) | 7.26 | 7.45 | 7.65 | 7.99 | 8.21 |
| Open Circuit Voltage | Voc(V) | 21.6 | 21.74 | 21.96 | 21.72 | 21.9 |
| Short Circuit Current | Isc(A) | 7.83 | 8.04 | 8.17 | 8.69 | 8.93 |
| Maximum System Voltage | VDC | 1000 | ||||
| Cell Efficiency | % | 15 | 15.5 | 16.1 | 16.7 | 17.3 |
| Module Efficiency | % | 12.9 | 13.4 | 13.9 | 14.4 | 14.9 |
| Cells per Module | Pcs | 36 | ||||
| Cell Type | Monocrystalline silicon | |||||
| Cell Size | mm | 156 x 156 | ||||
| Bypass Diodes | Pcs | 10Amp, 2 pcs | ||||
| Max. Series Fuse Rating | A | 10A | ||||
| Temperature coefficient of Isc | %/°C | 0.05 | ||||
| Temperature coefficient of Voc | %/°C | -0.35 | ||||
| Temperature coefficient of power | %/°C | -0.47 | ||||
| NOCT- Nominal operating cell temperature | °C | 47 ± 2 | ||||
| Operating Temperature | °C | -40 ~ +85 | ||||
| MECHANICAL CHARACTERISTICS | ||||||
| Dimensions | mm | 1480 x 680 x 35 | ||||
| Weight | Kg | 11.6 | ||||
| Type of Junction Box | TUV certified, IP65 | |||||
| Cable Type, Diameter | - | |||||
| Connector | - | |||||
| Tempered Glass | 3.2 mm, high transmission, low iron | |||||
5. FAQ of Solar Panel 150W with TUV IEC MCS INMETRO IDCOL SONCAP Certificates
Q1. How long can we receive the product after purchase?
A1.In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers
Q2. Can we visit your factory?
A2:Surely, I will arrange the trip basing on your business schedule.
Q3:Which payment terms can you accept?
A3:T/T,L/C,Moneygram,Paypal are available for us.
