Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:50000 watt
Supply Capability:3000000 watt/month
1. Structure of Solar On-grid Inverter 5kw 2MPPTs 5000TL Description
A solar inverter, or PV inverter, or Solar converter, converts the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network. It is a critical BOS–component in a photovoltaic system, allowing the use of ordinary AC-powered equipment. Solar inverters have special functions adapted for use with photovoltaic arrays, including maximum power point tracking and anti-islanding protection.
2. Main Features of the Solar On-grid Inverter 5kw 2MPPTs 5000TL
﹒2 MPPT channels, new generation technology
﹒Two high speed MPPT for real time power tracking and improved energy harvesting
﹒High frequency transformer operation for highest efficiency: 97.4% (97.0% Euro)
﹒Certified grid connected operation according to the international standards
﹒True Sine Wave Output
﹒ Integrated RS-485/RS-232 serial communication
﹒Multi-language display
﹒2 MPPT channels can be independent or parallel, auto detecting operation

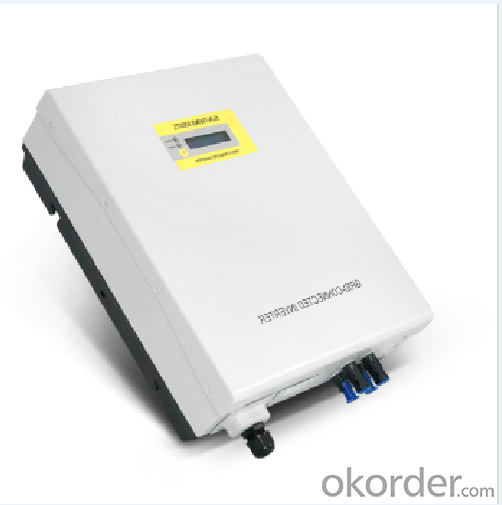

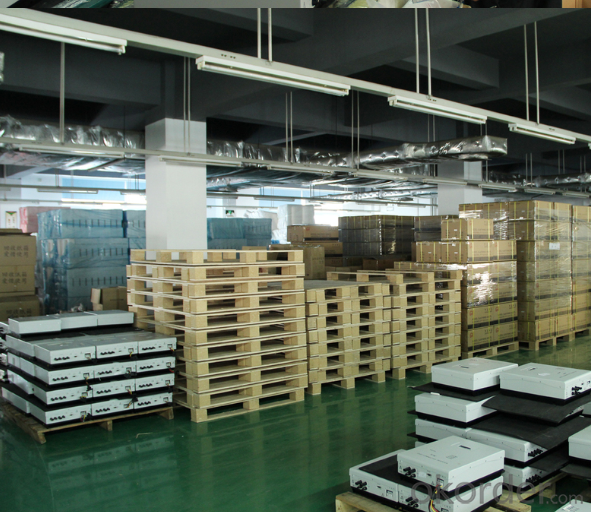

3. Solar On-grid Inverter 5kw 2MPPTs 5000TL Images
4. Solar On-grid Inverter 5kw 2MPPTs 5000TL Specification
CHARACTERISTICS | Suntwins 5000TL |
Input Data(DC side) | |
Max. DC power(Total) | 5300W |
Max.DC power per MPPT | 3000W |
Max. DC voltage | 500Vdc |
MPPT Operating range | 100~450Vdc |
Number of parallel inputs | 2 |
Number of MPPT trackers | 2 |
Max. input current per MPPT | IN1:15A/IN2:15A |
Output Data(AC side) | |
Nominal output power | 4950W |
Max. Output power | 4950W |
Nominal output current | 21.5A |
Max. output current | 25A |
Nominal AC voltage | 230Vac |
AC voltage range * | 190~265Vac |
Nominal AC grid frequency | 50Hz |
AC grid frequency range* | 50 ± 5 Hz |
Power factor(cos φ) | >0.99 |
Harmonic distortion(THDI) | <3%(at nominal output power) |
Efficiency | |
Max. efficiency | 97.4% |
Euro efficiency | 97.0% |
MPPT efficiency | 99.6% |
Genaral data | |
Dimensions (W / D / H) | 345*152*435mm |
Net weight | 18Kg |
Operating temperature range | –25 °C ~ +60 °C |
Noise emission (typical) | ≤ 25 dB(A) |
Power consumption at night | 0 W |
Electrical isolation | No |
Cooling concept | Natural cooling |
IP Code | IP65 |
Communication | RS-232(RS485 is optional) |
5. FAQ of Solar On-grid Inverter 5kw 2MPPTs 5000TL
Q1. What is the difference between inverter and solar inverter?
A1. Inverter only has AC inpput, but solar inverter both connect to AC input and solar panel, it saves more power.
Q2. What is the difference between MPPT&PWM?
A2. MPPT has higher efficiency, it can track the max power point and won't waste energy.
Q3. What is the waranty of product?
A3. 12 months.
