Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:20000000 watt/month
1.Structure of Solar Module Description
Solar Monocrytalline Series Ⅲ (230W-----250W)
2.Characteristics of the Solar Module
| Max Power Voltage Vmp (V) | 30.3 | 30.8 | 31.1 | 31.4 | 31.85 |
| Max Power Current Imp (A) | 7.60 | 7.64 | 7.73 | 7.81 | 7.85 |
| Open Circuit Voltage Voc (V) | 36.1 | 36.6 | 37 | 37.3 | 37.68 |
| Short Circuit Current Isc (A) | 8.50 | 8.55 | 8.65 | 8.75 | 8.85 |
| Max Power Pm(W) | 230 | 235 | 240 | 245 | 250 |
3.Limits of the Solar Module
Operating Temperature ﹣40℃to+85℃
Storage Temperature ﹣40℃to+85℃
Max System Voltage 1000VDC(IEC)/600VDC(UL)
4.Specifications of the Solar Module
Material | the Solar Module |
Cell | Monocrytalline Cell 156×156 mm |
Packing | 624 Pcs/40ft (H) Container |
| Weight | 19.5kg |
| Tolerance | 0～+5W |
Certificate | TUV VDE UL |
5.Applications of the Solar Module
1.Electricity
2.Heat energy

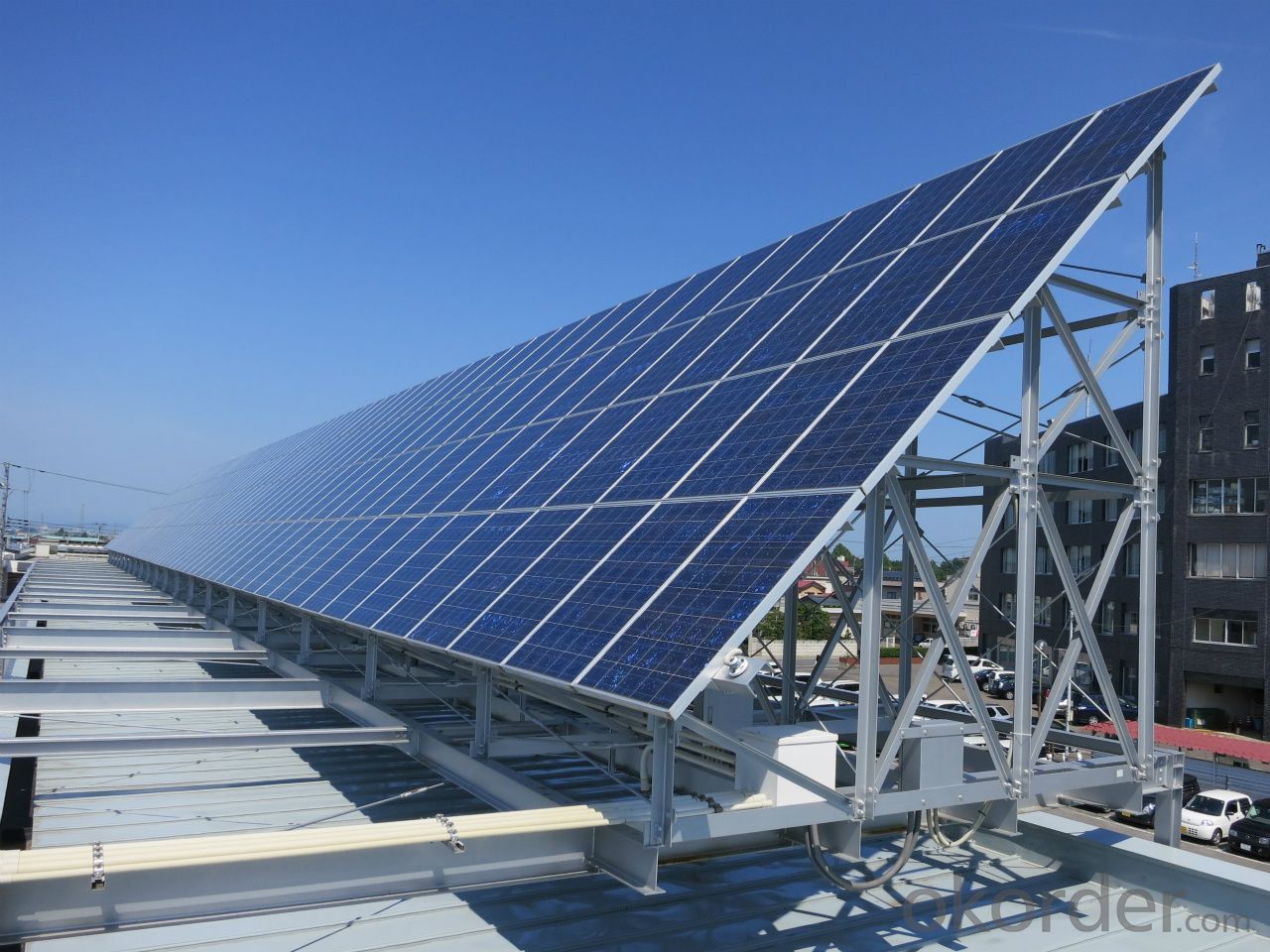

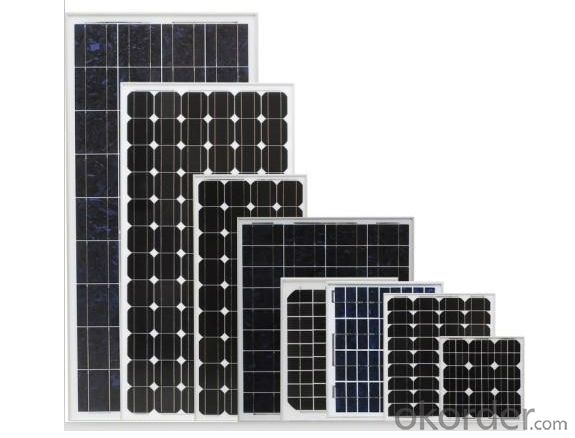

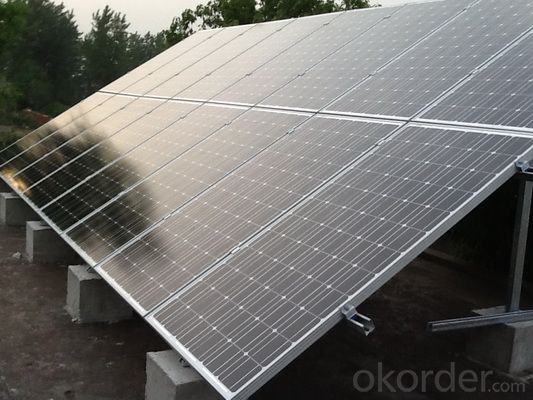

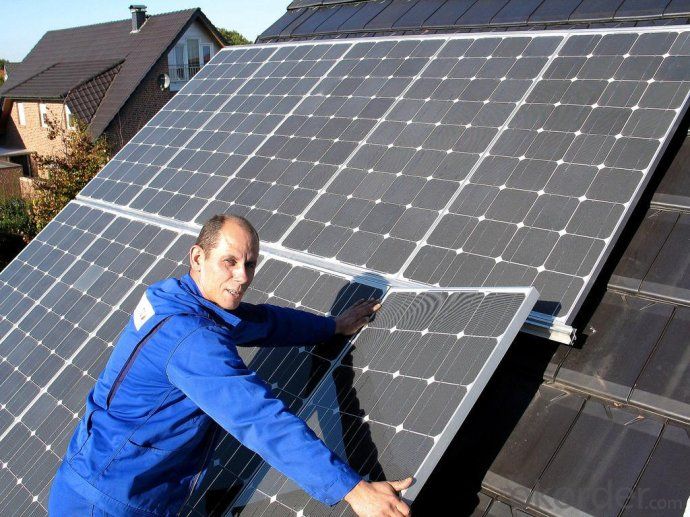

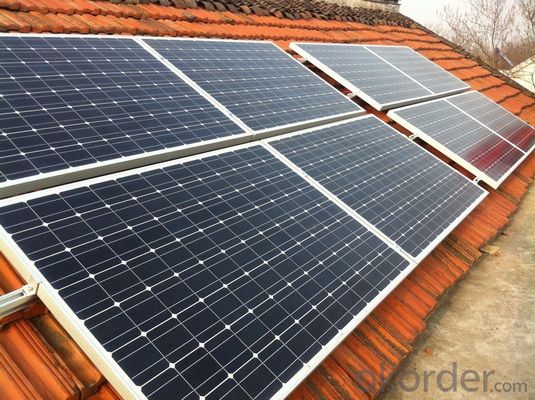

6.IMages of the Solar Module
FAQ
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
