Utah Solar Panels - Solar Monocrystalline Series I (175W-195W)

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1000 watt

Supply Capability:20000000 watt/month

Product Description:



1.Structure of Solar Module Description

Solar panel refers either to a solar hot water panel, a common type of a solar thermal collector, or to one or more solar photovoltaics (PV) modules, electrically connected and mounted on a supporting structure.

A PV module is a packaged, connected assembly of typically 6×10 solar cells. Solar PV panels constitute the solar array of a photovoltaic systemthat generates and supplies solar electricity in commercial and residential applications. Each module is rated by its DC output power under standard test conditions, and typically ranges from 100 to 320 watts. The efficiency of a module determines the area of a module given the same rated output – an 8% efficient 230 watt module will have twice the area of a 16% efficient 230 watt module. There are a few solar panels available that are exceeding 19% efficiency. A single solar module can produce only a limited amount of power; most installations contain multiple modules. A photovoltaic system typically includes a panel or an array of solar modules, an inverter, and sometimesbattery and/or solar tracker and interconnection wiring.

2.Main Features of the Solar Module

 1).High conversion efficiencies resulting in superior power output performance.

 2).Outstanding power output even in low light or high temperature conditions

 3).Optimized design for ease of soldering and lamination

 4).Long-term stability,reliability and performance


3.Limits of the Solar Module

  1. Operating Temperature   ﹣40℃to+85℃

  2. Storage Temperature      ﹣40℃to+85℃

  3. Max System Voltage         1000VDC(IEC)/600VDC(UL)



4.Specifications of the Solar Module



Material

the Solar Module

Cell

Monocrytalline Cell 125X125 mm

Packing

Pcs/40ft (H) Container
Weight

15.5kg

Tolerance

0~+5W

Certificate

TUV VDE UL

5.Applications of the Solar Module

1.Electricity

2.Heat energy



6.IMages of the Solar Module

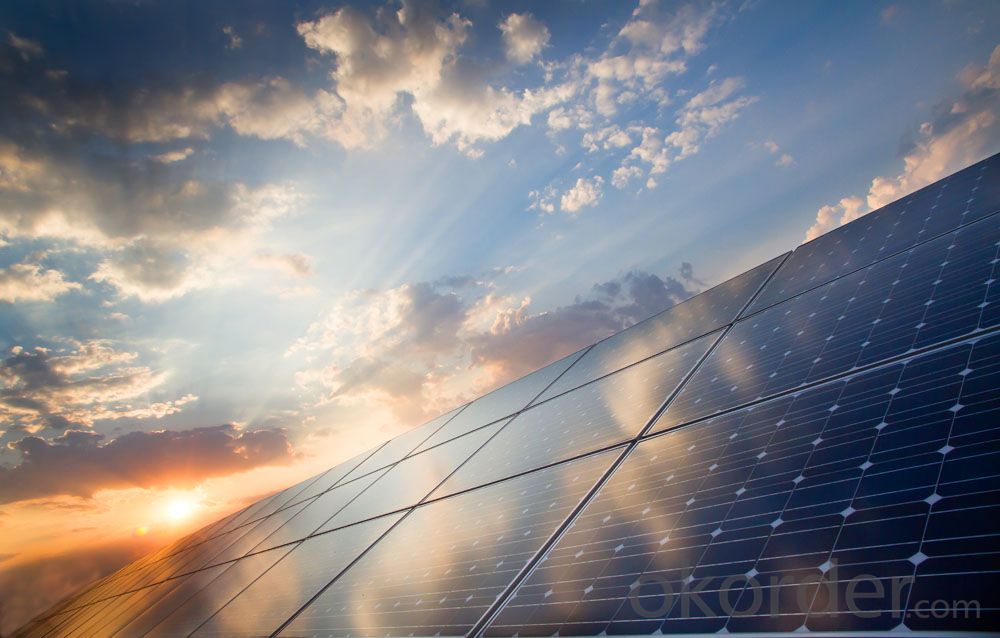

Solar Monocrytalline Series Ⅰ (175W-----195W)

Solar Monocrytalline Series Ⅰ (175W-----195W)

Solar Monocrytalline Series Ⅰ (175W-----195W)



FAQ

1. Q: Do you have your own factory?

    A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.

2. Q: How can I visit your factory?
    A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
    A: Usually we do not offer free sample

4. Q: Could you print our company LOGO on the nameplate and package?

    A: Yes, we can do that.
