Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:20000000 watt/month
1.Structure of Solar Module Description
Solar Monocrytalline 125mm Series (45W-----65W)
2.Characteristics of the Solar Module
| Max Power Voltage Vmp (V) | 17.8 | 18.0 | 17.6 | 17.8 | 18.0 |
| Max Power Current Imp (A) | 2.53 | 2.78 | 3.13 | 3.37 | 3.61 |
| Open Circuit Voltage Voc (V) | 22.4 | 22.6 | 22.2 | 22.4 | 22.6 |
| Short Circuit Current Isc (A) | 2.74 | 2.97 | 3.35 | 3.61 | 4.36 |
| Max Power Pm(W) | 45 | 50 | 55 | 60 | 65 |
3.Limits of the Solar Module
Operating Temperature ﹣40℃to+85℃
Storage Temperature ﹣40℃to+85℃
Max System Voltage 700V
4.Specifications of the Solar Module
| Power | 45W/50W | 55W/60W/65W |
| Dimension | 630x550x30mm | 820x550x30mm |
| Weight | 4.5kg | 5.5kg |
| Tolerance | ±3％ | ±3％ |
The dimension of the modules can be changed according to the demand of clients
5.Guarantee of the Solar Module
| Products Guarantee | 2 yrs free from defects in materials and
workmanship |
| Performance Guarantee | No less than 90％ within 10yrs and no less than 80％ within 20yrs |
| Certificates | IEC,ISO,TUV,CE |
6.Applications of the Solar Module
1.Electricity
2.Heat energy

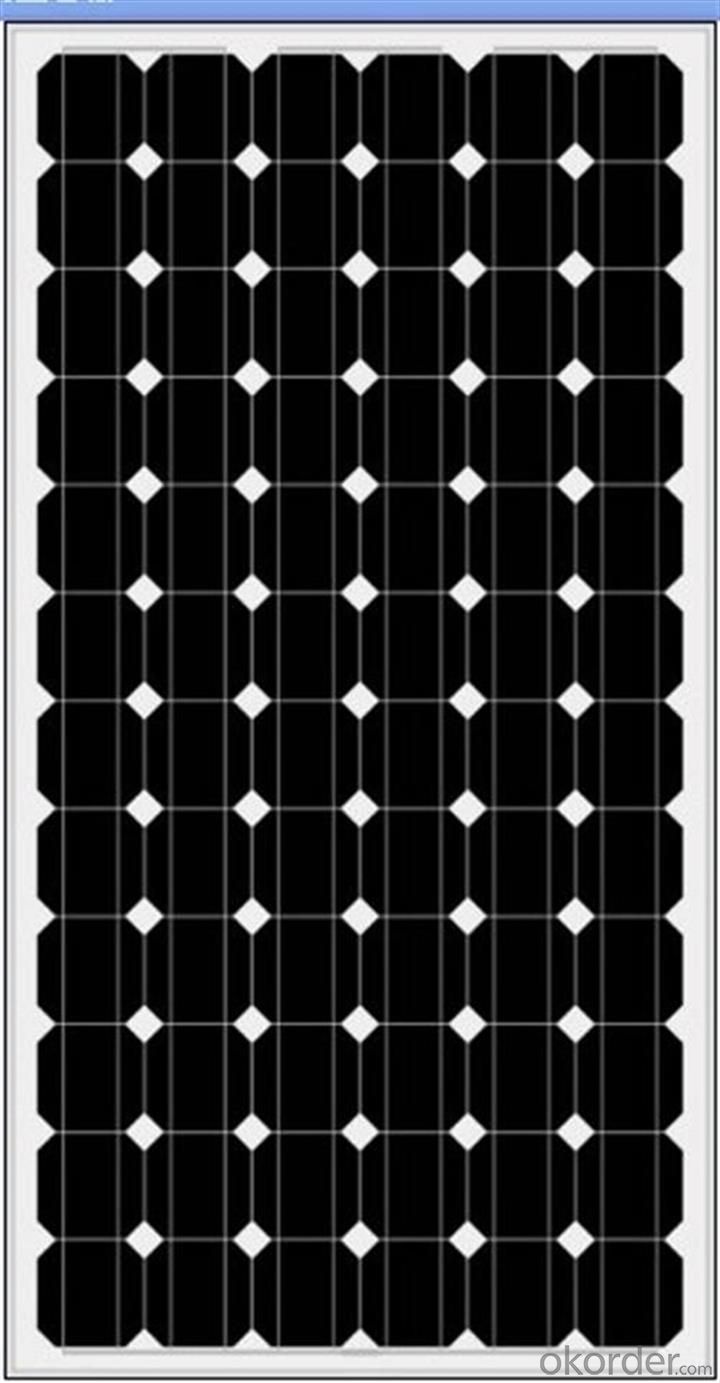

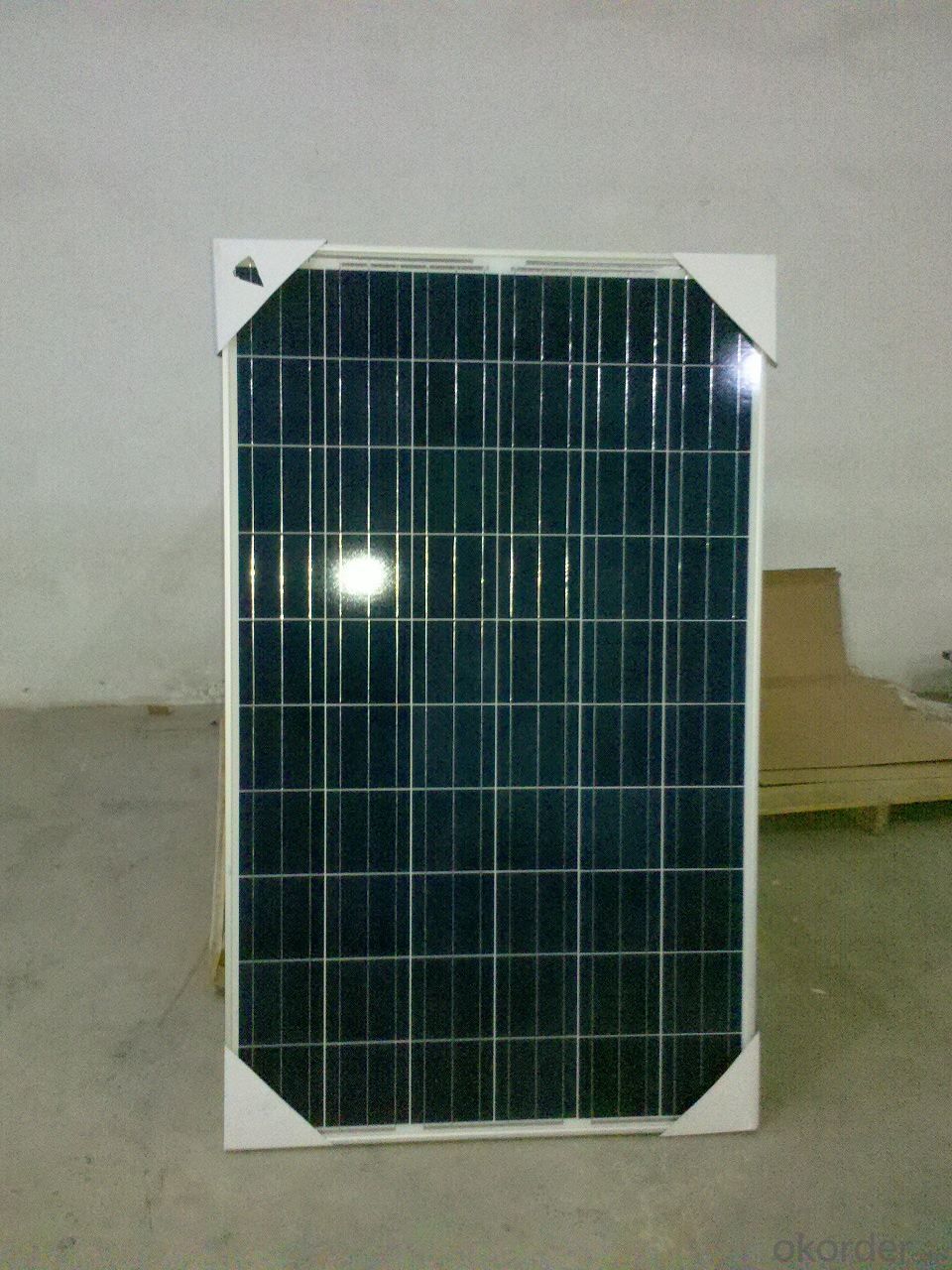

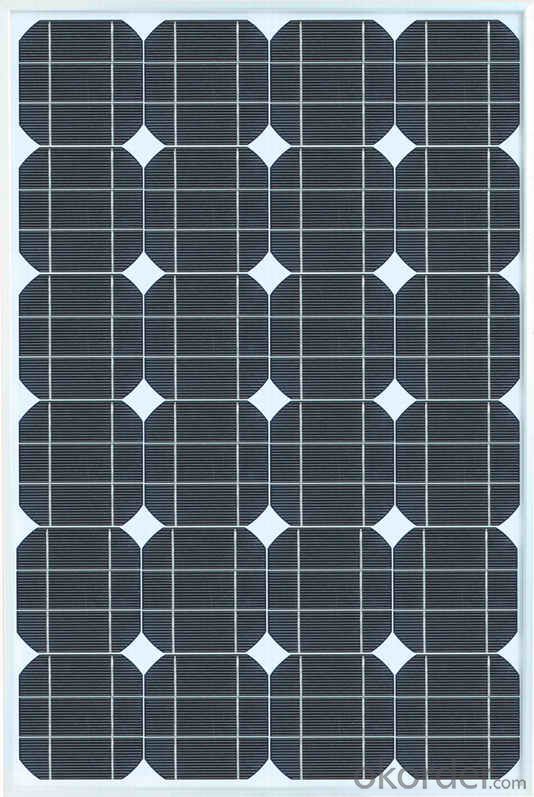

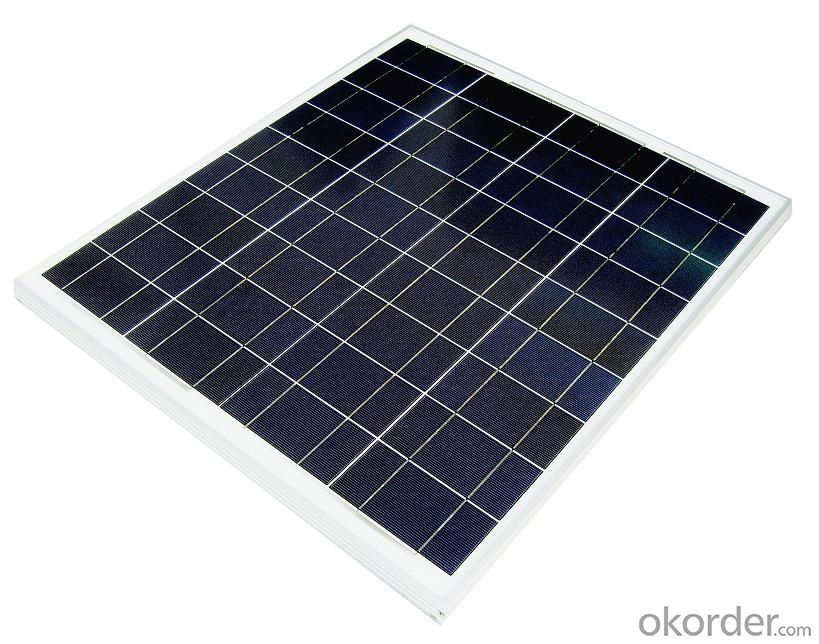

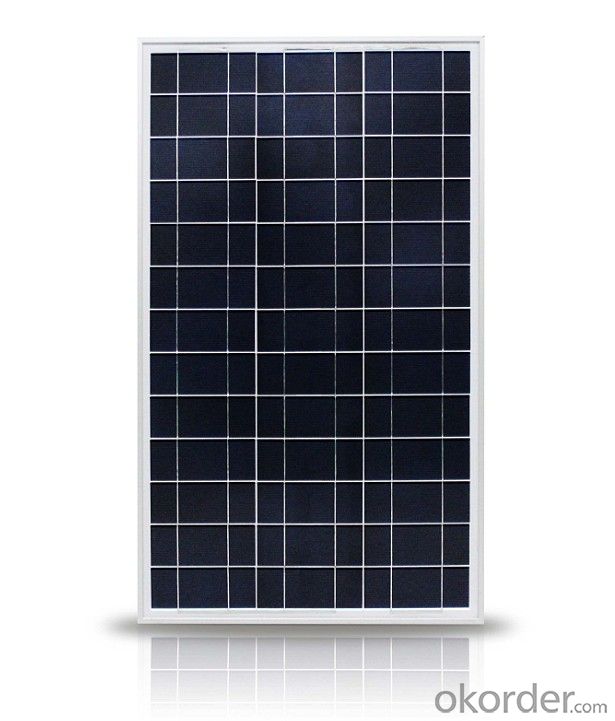

7.IMages of the Solar Module
FAQ
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
