Loading Port:Shanghai
Payment Terms:TT
Min Order Qty:1 pcs pc
Supply Capability:100000/month pc/month

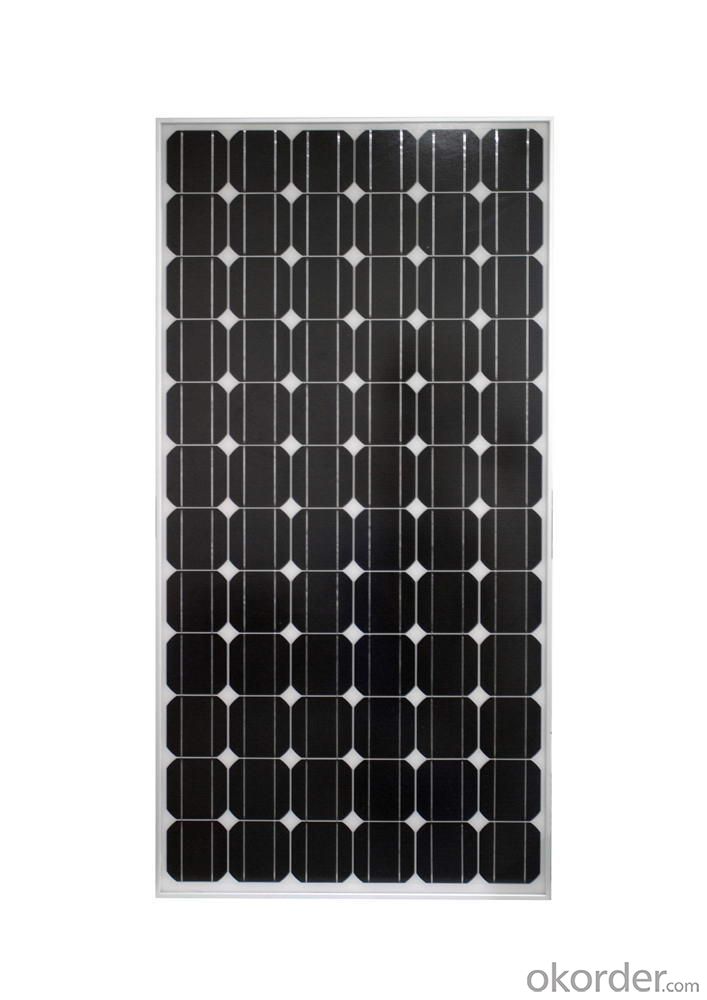

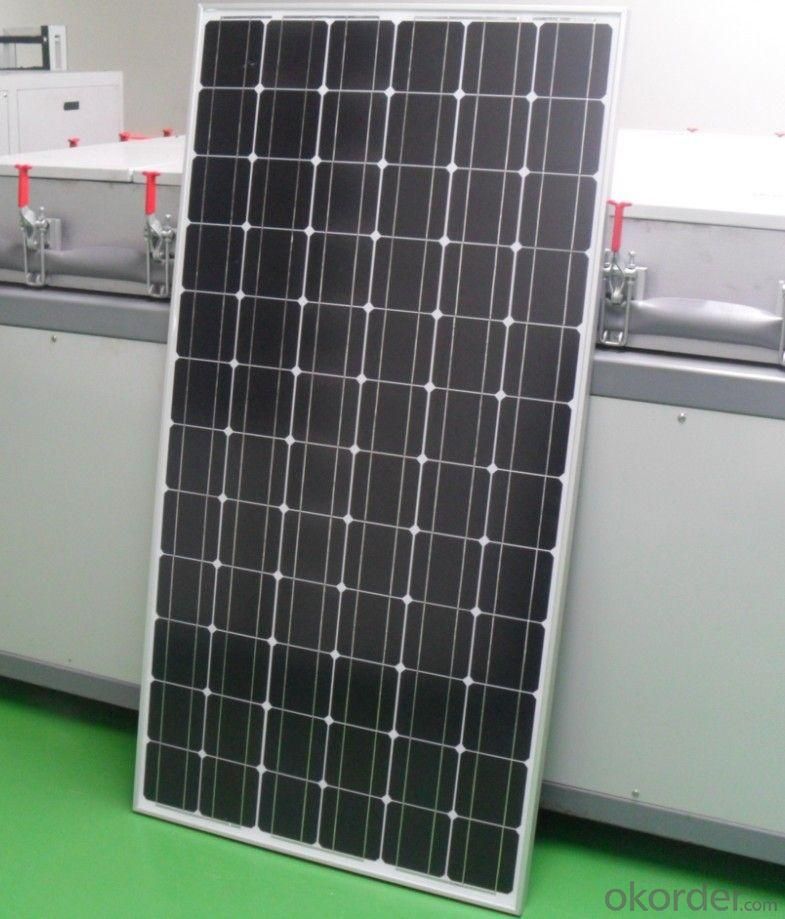

Solar Monocrystalline (185W-195W)
Introduction of Solar Monocrystalline (185W-195W)
A solar panel is a set of solar photovoltaic modules electrically connected and mounted on a supporting structure. A photovoltaic module is a packaged, connected assembly of solar cells. The solar module can be used as a component of a larger photovoltaic system to generate and supply electricity in commercial and residential applications.
CNBM Solar photovoltaic (PV) Panel is designed for large electrical power requirements. It is the optimal choice for both on-grid and off-grid power systems. CNBM Solar panel offers high performance of power per square foot of solar array. Monocrystalline silicon(c-Si): often made using the Czochralski process. Single-crystal wafer cells tend to be expensive, and because they are cut from cylindrical ingots, do not completely cover a square solar cell module without a substantial waste of refined silicon. Hence most c-Si panels have uncovered gaps at the four corners of the cells.
Characteristics of Solar Monocrystalline (185W-195W)
I. Solar Cell : High efficiency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.
II. Tempered glass (toughened glass): Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
III. EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.
IV. AI frame: Without screw, corner connection. 6 holes on the frame can be installed easily.
V. Junction box: Multi function junction box with water proof.
VI. Long lifetime: ≥25 years; Less power decrease.
VII. Good performance of preventing from atrocious weather such as wind and hails.
VIII. Resisting moisture and etching effectively, not effected by geology.
IX. The certificate issued by international authority: UL, TUV, IEC, VDE, CE.
Standard Test Conditions of Solar Monocrystalline (185W-195W)
The opto-electrical specifications shown below are stabilized values being measured at Standard Test Conditions, Irradiance: 1000W/m2, Spectrum: AM1.5 at 25°C, The info below is subject to manufacturing tolerances. Where appropriate minutes of measurement are available and are used for the dimensioning of the installation.
Advantages of Monocrystalline Silicon Solar Panel
• CNBM Solar performance guarantees for 25 years
• 12 years guarantee for workmanship
• Timeliness of delivery
• Quality Products certified (TÜV, UL, CE, VDE, ISO)
CNBM International Corporation's products including Monocrystalline Solar Panel, Polycrystalline Solar Panel have received and enjoyed famous reputation in many countries and regions in the world .As a solar panel manufacturer in China, we strive to provide our customers with excellent service, superior products and unmatched value.
Technical Data
Characteristics of Solar Monocrystalline (185W-195W)
Max Power Voltage Vmp (V) | 36.27V | 36.5V | 36.75V |
Max Power Current Imp (A) | 5.1A | 5.2A | 5.31A |
Open Circuit Voltage Voc (V) | 45V | 45.2V | 45.4V |
Short Circuit Current Isc (A) | 5.5A | 5.6A | 5.7A |
Max Power Pm (W) | 185W | 190W | 195W |
Temperature Coefficient of Cells
NOCT | 47℃±2℃ |
Temperature Coefficients of Isc (%/℃) | 0.0981 |
Temperature Coefficients of Voc (%/℃) | -0.5186 |
Temperature Coefficients of Pmp (%/℃) | -0.4601 |
Mechanical Data of Solar Monocrystalline (185W-195W)
Dimension | 1580×808×40mm |
Weight | 15.5kg |
Tolerance | 0~+5W |
The dimension of the modules can be changed according to the demand of clients
Limits of Solar Monocrystalline (185W-195W)
Operating Temperature | –40 °C to +85°C |
Storage Temperature | –40 °C to +85°C |
Max System Voltage | 1000VDC(IEC)/600VDC(UL) |
Guarantee of Solar Monocrystalline (185W-195W)
Products Guarantee | 12 yrs free from defects in materials and workmanship |
Performance Guarantee | No less than 90% within 10yrs and no less than 80% within 20yrs |
Certificates | IEC, ISO, TUV, CE |
The Pakage of Solar Monocrystalline (185W-195W)
The Production Line of Solar Monocrystalline (185W-195W)
