Solar Module 230W Poly with High Efficiency of CNBM

Product Description:

1.Structure of Solar Module Description

The solar module is an off-gird solar power generator, designed to provide stable and reliable electricity to homes and communities without access to grid electricity or to those regions where are short of power or even without power. The solar module is convenient to move, easy to set-up with reliable performance, making it ideal for situations where emergency power is required. It is an ideal & reliable energy source for a wide variety of applications, ranging from lighting , radios, fans ,televisions ,computers ,refrigerator. The USB port is compatible with all 5V-USB charged devices. It can also act as a back-up power source during emergency situations.

2.Main Features of the Solar Module

 1).High conversion efficiencies resulting in superior power output performance.

 2).Outstanding power output even in low light or high temperature conditions

 3).Optimized design for ease of soldering and lamination

 4).Long-term stability,reliability and performance

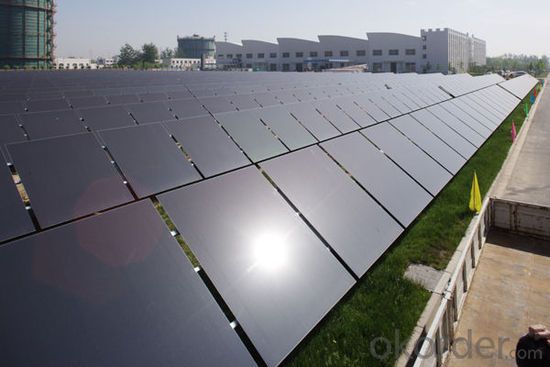

3.Solar Module Images

4.Solar Module Specification

230W Solar Module Polycrystalline -Competitive Quality, Price
TUV,CE,MCS,UL,CEC,IEC61215,61730,ISO9001,ISO 14001,VDE

Solar Module 230W Poly

Vmp:29.5V

Imp:7.8A

Voc:36.6V

Isc:8.42A

Pmax:230W

Operating Temperature:-40~+85°C

Maximum System Voltage:1000V DC

Maximum Series Fuse Rating: 15A

Module Efficiency: 14.1%

Power Tolerance:±3%

Mechanical Characteristics

Solar Cell: Polycrystalline 156*156mm(6 inches)

Dimensions:1650*992*50mm(64.95*39.05*2inches)

Weight:19.5KG(43.0lbs)

Front Glass: High Transparency Solar Glass 3.2mm(0.13inches)

Frame:Anodized Aluminium alloy(Siliver or Black)

Junction Box: IP 67 Rated(TUV&UL Approved)

Temperature Characteristics:

Nominal Operating Cell Temperature(NOC): 45±2°C

Temperature Coefficient of Pmax:-0.44%/°C

Temperature Coefficient of VOC:-0.33%/°C

Temperature Coefficient of Isc:0.055%/°C

Warranty:

10 years Product warranty

12 years 90% of power output

25 years 80% of Power output

5.FAQ of Solar Module

1). Q: Are you a factory or trading company?

A: We are a factory.

2). Q: Where is your factory located? How can I visit there?

A: Our factory is located in Jiangyin, Jiangsu, China, near Shanghai. You are warmly welcomed to visit us!

3). Q: How can I get some samples?

A: Please connect me for samples

4). Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for big amount.
