1. Structure of Solar Inverter, High quality Single Phase Modified Sine Wave 3000w Description
The inverter series is an electronic product that has been designed and built to take low DC woltage power from batteries and convert it to
standard AC power like the current you have at home.
The Inverter series is a DC-to-AC with auto line-to-battery transfer and intergrated charging system. Inverter series powers from ACpower
and DC source, serving as an extended run UPS. When AC cable is connected to a wall socket, utility power goes to connected equipment
and/or charges the battery set via charging system. In Inverter mode, the Inverter series automatically converts battery energy into AC power
for backing up the connected devices.
2. Main Features of Solar Inverter, High quality Single Phase Modified Sine Wave 3000w
• Low voltage protection
• Over voltage protection
• Overload protection
• Over temperature protection
• Short circuit protection

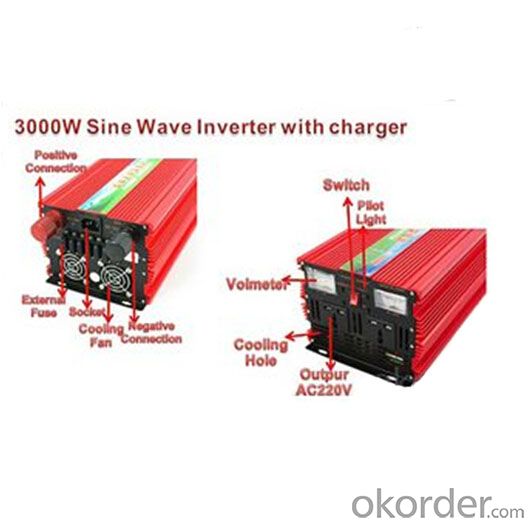

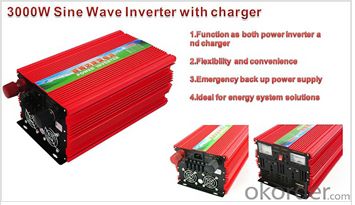

3. Solar Inverter, High quality Single Phase Modified Sine Wave 3000w Images
4. Solar Inverter, High quality Single Phase Modified Sine Wave 3000w Specification
Model No. | DMD-3000W/24V/F/CA | |
Input Section | DC Input Voltage | 24V |
DC Operating Voltage | 21-29V | |
DC Low-voltage Protection | 18.5-20.5V | |
DC Low-voltage Alarm | 19.5-21V | |
DC Over-voltage Protection | ≥29V | |
Fuse | 20A*2 | |
Quiescent Current | ≤0.5A | |
Output Section | Output Waveform | Modified Sine Wave |
Output Voltage | 220V±10% | |
Output Frequency | 50Hz±1% | |
Power Rating | 3000W | |
Continue Output Rating | 3000W | |
Peak Power Rating Output | 6000W | |
Transfer Efficiency | ≥90 % | |
Overload Protection | 3000W--3600W | |
Short-circuit Protection | Yes | |
Operating Temperature | -10°C--+50°C | |
Temperature Protection | +60°C--+70°C | |
Green LED Indicator | Green Light(Working),Flash(Overload Protection) | |
Red LED Indicator | Red Light(Error Protection) | |
Size | Size: 305 x 165 x 125mm | |
Weight | 5.5kg | |
Packing | Color box packing or skin packing | |
