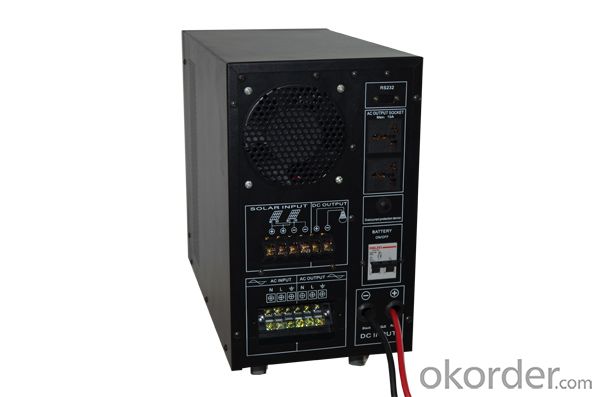

Solar Generator Intelligent Inverter with Charger
Feature
XZ-NK New intelligent inverter with built in controller realize to combine display of inverter and solar controller, which is different with tranditional solar generator.

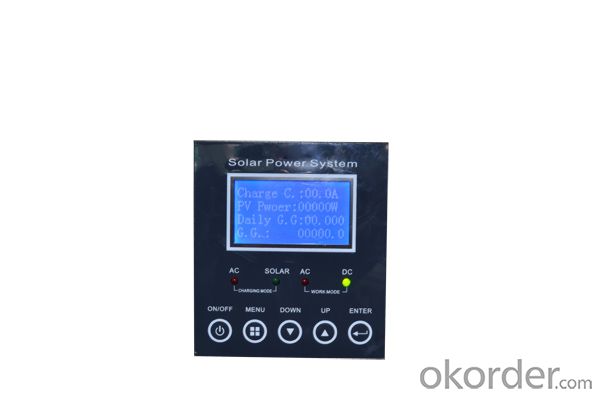

2.With great function，display the parameter of solar controller and inverter at the same time, includes grid voltage, frequency, input voltage, input frequency, input wattage,output load precent,battery capacity precent,PV voltage, battery voltage, charge current,PV power, daily power generation, total power generation etc；
3.Realize customer self setting PV priority or Battery priority, setting of battery type,charge voltage, charge current, charge limit and so on；
4.Have time colock, timing turn on and off, keep record of fault, fault query more function.
5.Also with normal funtion of inverter, like protection against battery under voltage,over-voltage,overload,short circuit.
Aplication：
Mobile Charge,PC,Lighting Fixture,TV, Fan,Refrigerator,washing machine,air condition, water pump,safety products, professional tool, equipment etc any wattage electrical appliance.
Product Parameter
| Specification: | ||||||||||
| Model XZ-NK | 50112-20 | 10224-30 | 20248-50 | 50296-50 | 70296-50 | 103192-50 | 153192-100 | 203192-100 | ||
| PV Charging Method | Direct Charge/PWM/MPPT | |||||||||
| PV Max input current | 20A | 30A | 50A | 50A | 50A | 50A | 100A | 100A | ||
| PV Rated input voltage | 12VDC | 24VDC | 48VDC | 96VDC | 96VDC | 192VDC | 192VDC | 192VDC | ||
| PV Max input wattage | 240W | 720W | 2400W | 4800W | 4800W | 9600W | 19200W | 19200W | ||
| PV Max input voltage | 18VDC | 36VDC | 72VDC | 144VDC | 144VDC | 288VDC | 288VDC | 288VDC | ||
| PV Charging efficiency | 99% | 99% | 99% | 99% | 99% | 99% | 99% | 99% | ||
| Battery Rated input voltage | 12VDC | 24VDC | 48VDC | 96VDC | 96VDC | 192VDC | 192VDC | 192VDC | ||
| Battery input voltage range | 9VDC-18VDC | 18VDC-36VDC | 36VDC-72VDC | 84VDC-120VDC | 84VDC-120VDC | 168VDC-240VDC | 168VDC-240VDC | 168VDC-240VDC | ||
| Protection function (PV Charge part） | Reverse connection, short circuit, overcharge, anti charge protection | |||||||||
| AC input voltage | 75VAC-125VAC Or 145VAC-275VAC | |||||||||
| AC input frequency | 45HZ-65HZ | |||||||||
| Invert output | 110VAC±2% Or 220VAC±2% | |||||||||
| Invert output Frequency | 50HZ±0.5HZ Or 60HZ±0.5HZ | |||||||||
| Display | LCD | |||||||||
| Rated Capacity | 500W | 1000W | 2000W | 5000W | 7000W | 10000W | 15000W | 20000W | ||

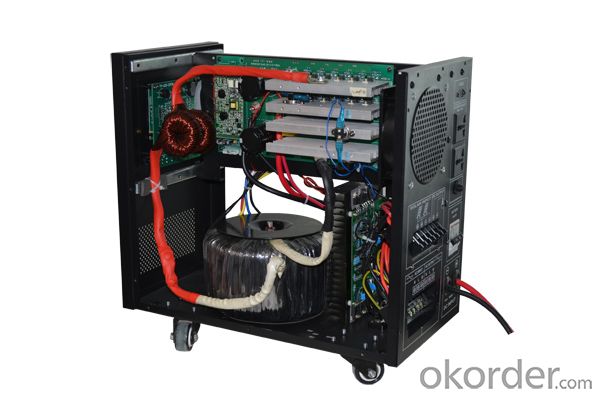

| Inverter structure | Low Frequency Structure | |||||||||
| no-load power consumption | 8W | 15W | 30W | 75W | 75W | 150w | 150W | 150W | ||
| Conversion efficiency | ≥85% | |||||||||
| Mains input charging current | 0-15A（Adjustable） | |||||||||
| Working mode | AC first /PV first(Optional) | |||||||||
| Conversion time | ≤4ms | |||||||||
| Overload capacity | Overload exceeds 110%，automatic shutdown in 30 secs；Overload exceeds 120%，automatic shutdown in 2 secs；Under mains supply mode, it will not shutdown. | |||||||||
| Output waveform | Pure sine wave | |||||||||
| Work environment | Temperature0-40℃，Humidity10-90% | |||||||||
| Thermal methods | Forced Air Cooling | |||||||||
| Protection function （inverter part） | mains over / under-voltage, higher DC current/ under-voltage, short circuit of inverter output | |||||||||
| Output waveform distortion | ≤3% | |||||||||
| Size | Product Size(mm) | 300×170×280 | 422×225×360 | 491×281×430 | 580×350×700 | |||||
| Packing Size（mm) | 350×220×330 | 472×275×410 | 551×341×490 | 660×410×740 | ||||||
| KG | 8KG | 10KG | 18KG | 36KG | 48KG | 55KG | 75KG | 95KG | ||
| Note | All specifications are subject to change without prior notice | |||||||||
