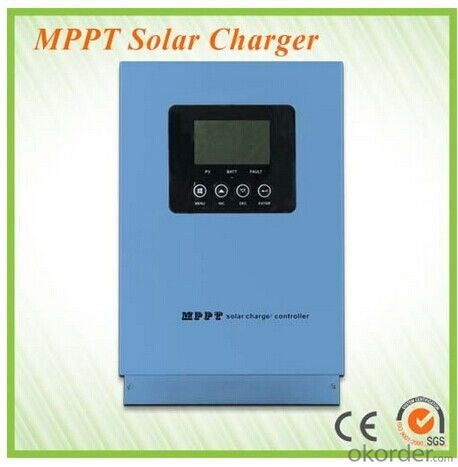

Solar Charge Controller LED 5A-20A
This is a highly intelligent charge controller with Maximum Power Point Tracking (MPPT). The optimal and intelligent “MPPT + SOC” charge control is implemented. The power switching components consist of low-loss MOSFET type transistors that have a long operating life and guarantee high performance. The extremely low own consumption makes it especially suitable for solar home systems, solar street lamp system, advertising lighting, traffic management system, and other professional applications etc. With the reverse polarity protection, lightning protection, electronic fuse and automatic detection of faulty battery, the controller is robust, maintenance-free and user-friendly.
● Solar home system
● Public security monitoring system
● Solar street lamp system
● DC signal light power supply system
● Small and medium size telecommunication station power supply system
● Small size solar power station system and solar DC power supply system
Model | F12-05 F12-05M | F12-10 F12-10M | F12-20 | F24-05 F24-05M | F24-10 F24-10M | F24-20 |
System Voltage | 12V | 24V | ||||
Rated Charging Current | 5A | 10A | 20A | 5A | 10A | 20A |
Rated Load Current | 5A | 10A | 20A | 5A | 10A | 20A |
PV Panels Configuration(Suggestion)(Imp≤Rated Current) | ≤5A | ≤10A | ≤20A | ≤5A | ≤10A | ≤20A |
Battery Capacity | 17Ah～400Ah | |||||
Max. Efficiency | > 98% | |||||
Static Dissipation | < 0.5%（system rated current) | |||||
Solar Battery Port Input Voltage Range | 0 - 25V | 0 - 50V | ||||
Rated Battery Voltage | 12V | 24V | ||||
Buck Charge Voltage | 14.6V±0.2V | 29.2V ±0.3V | ||||
Float Charge Voltage | 14.4V±0.2V | 28.8V±0.3V | ||||
Overcharge Protection | 14.7V±0.2V | 29.4V±0.3V | ||||
Charging Resume Voltage | 13.2V ±0.2V | 26.4V ±0.3V | ||||
Undervoltage Alarm | 11.2V±0.2V | 22.4V±0.3V | ||||
Over Discharge Protection | 10.8 V±0.3V | 21.6V±0.4V 3.2V ±0.3V | ||||
Over Discharge Resume Start Voltage | 13.2V ±0.3V | 26.4V±0.3% | ||||
Discharge Circuit Voltage Drop | < 4 % (system rated voltage) | |||||
Overload, Short-Circuit Protection | 125%(60s)/ 150%(10s) / short-circuit auto shut down； | |||||
Input Overvoltage Protection | 200%(rated voltage) | |||||
PV Reverse Polarity Connection Protection | YES | |||||
Control Mode | Switch control / PWM | |||||
Display | LED | |||||
Alarm Mode | sound(optional)、light alarm | |||||
Working Temperature | -20℃ ~ +45℃ | |||||
Relative Humidity | 0-95%(noncondensing) | |||||
Altitude | 1000m with rated power (increase 100m, reduce power 1%) Max.4000m | |||||
Storage Temperature | -25℃ ~ +85℃ | |||||
Storage Humidity | ≤85% | |||||
Installation Method | hanging vertical installation | |||||
Packing Dimension WxDxH(mm) | 136× 100× 35 | |||||
Packing Weight(kg) | 0.23 | |||||
Weight(kg) | 0.28 | |||||
Package | 40pcs/carton | |||||
