Specifications of Solar Air-conditioner
Our solar air conditioner is the solar air conditioner in real sense.We use absorption chiller which is to use hot water(from solar collector or other) to make cool air temperature. As manufacture of absorption chiller,we can supply chiller only or integrated unit which not only includes absorption chiller,but cooling water tower,chilled water pump,vaccum pump and hot water three-way valve.Normally,its stardard technical parameters as following,but we would like to supply customerized service if you need.
1)Cooling capacity:11.5Kw to 350Kw /3.3US RT to 99US RT
2)Refrierator:water
3)Absorb: lithium bromide solution
4)Inhabitor: lithium chromate or lithium molydate
5)Inlet temp of hot water:90°c-95°c
6)Inlet & outlet temp of chilled water:15°c/1.0°c or 12°c/7°c
7)Power consumption for absorbtion chiller only: from 0.15Kw to 1.1Kw
8)Power consumption for intergrated unit: from 1.0Kw to 21.2Kw
9)COP: 0.7-1.35
10) Designed life span:20years
11)This type of solar air conditioner use hot water(from solar collector) to make cool
12)Energy-saving,reduce carbon emission
System Design of Solar Air-conditioner
The Bolow unit include Lithium Bromide absorption chiller, control box, cooling water towel, chilled water pump, cooling water pump, hot water adjusting valve, filter of chilled & cooling water, vacuumpump.Fouling factor for chilled w ater is 0.086 ㎡℃ /kW.
Technical Parameters of Solar Air-conditioner
| Model | TX-11 | TX-23 | TX-35 | TX-58 | TX-115 | |
| Cooling Capacity | 11.5 | 23 | 35 | 58 | 115 | |
| Flow rate | 2.9 | 5.8 | 8.6 | 14.3 | 28.5 | |
| Hot Water | Inlet/Outlet Temp. | 90/85 Centigrade | ||||
| Pressure Loss | 0.08 | 0.04 | 0.04 | 0.05 | 0.05 | |
| Inlet/Outlet Dia | DN25 | DN40 | DN40 | DN50 | DN65 | |
| Chilled Water | Inlet/Outlet Temp. | 2 | 4 | 6 | 10 | 20 |
| Pressure Loss | 0.06 | 0.03 | 0.03 | 0.04 | 0.05 | |
| Inlet/Outlet Dia | DN25 | DN32 | DN32 | DN50 | DN65 | |
| Power Consumption | 1 | 1.4 | 2 | 2.8 | 5.3 | |
| Dimension | Length | 1010 | 1010 | 1410 | 1800 | 2755 |
| Width | 785 | 785 | 785 | 920 | 970 | |
| Heigth | 1622 | 1622 | 1622 | 1820 | 1990 | |
| Shipping Weight KG | 730 | 730 | 1100 | 1600 | 2600 | |
Usage and Appication of Solar Air-conditioner
Solar Air-conditioner mainly used business and home using air-conditioning requirement. It have the features of saving energy, protecting environment, economic and so on. At present these system is mostly used in hotel, school, swimming pool and hospital.
Packaging & Delivery of Solar Air-conditioner
The whole Solar-Air-conditioner are packed in wooden box. It should be handle with care and avoid of large shake.
Project Reference of Solar Air-conditioner
Our Solar Air-conditioner System is located in Shangdong Province, a 4-star Hotel which use our system. The whole Solar Air-conditioner System includes Solar Collecter, Solar Chiller and other accessories.

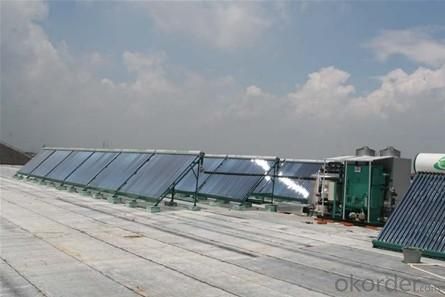

Roof Heat Collector of Solar Air-conditioner

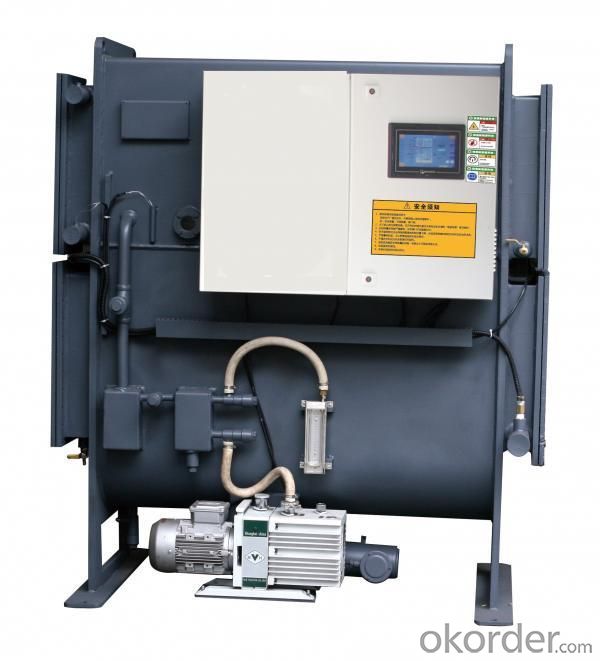

Chiller of Solar Air-conditioner System
Primary Machine Room of Solar Air-conditioner
