Loading Port:Shanghai
Payment Terms:L/C,T/T
Min Order Qty:100 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month

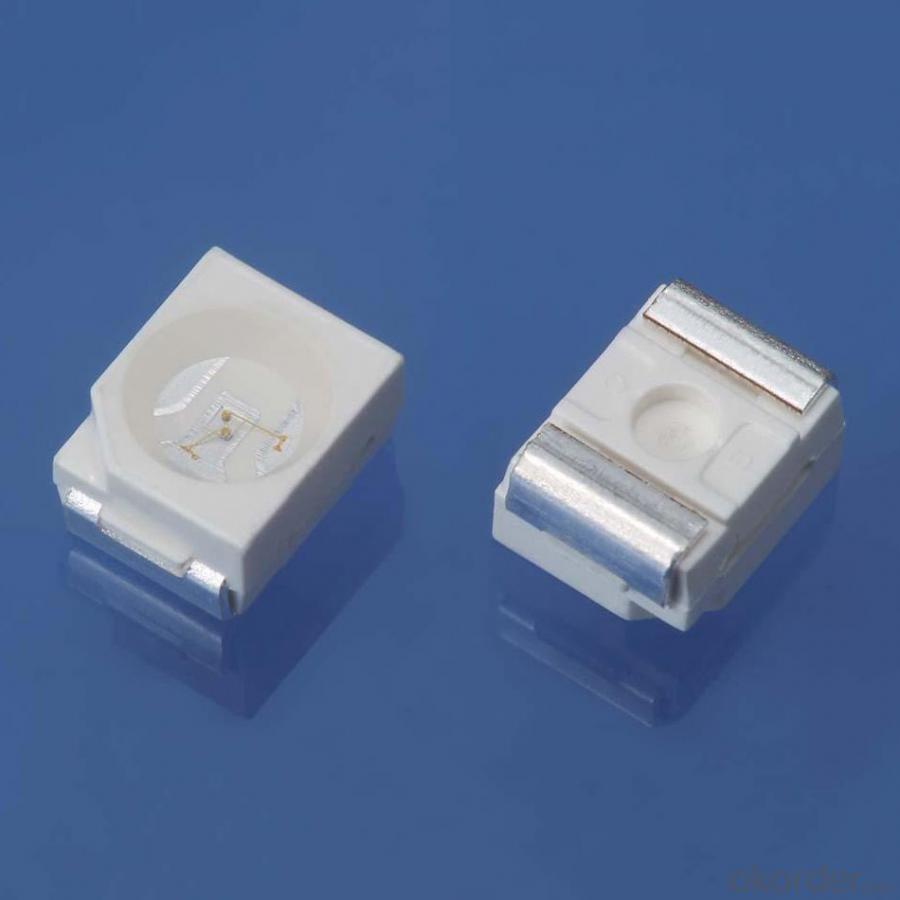

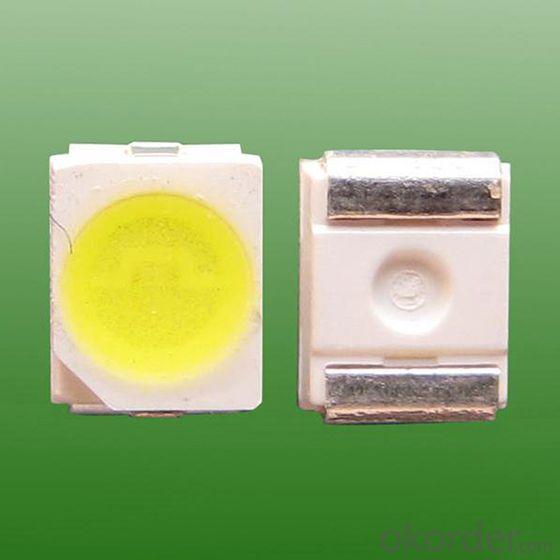

Feature
LED with white light at the headspace
High-brightness
Viewing Angle: 1200
Material of LED Chip: InGaN
3.50mm×2.80mm×1.90mm
Lead Free
This product conforms to RoHS standard of EU
Specification
Parameter | Unit | Min. | Typical | Max. | Unit | Conditions |
Forward Voltage | Vf | 2.8 | -- | 3.4 | V | If=20mA |
Light Flux | Lv | 5 | -- | 7 | Lm | If=20mA |
Luminous Intensity | Lv | 1600 | 1900 | 2200 | MCD | If=20mA |
Color Temperature | CCT | 3500 |
| 7000 | K | If=20mA |
Viewing Angle for 50% Light Flux | 2θ1/2 | -- | 120 | -- | Deg | If=20mA |
Countercurrent | Ir | -- | -- | 10 | μA | Vf=5V |
Application
Applied in Family, office and Supermarket
Lighting products
General application
Packaging & Delivery
Package:
1 x Box
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
By sea | 30-40 business days |
1. 3-10 business days for Sample Orders; 7-40 business days for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address.
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
