Product Description

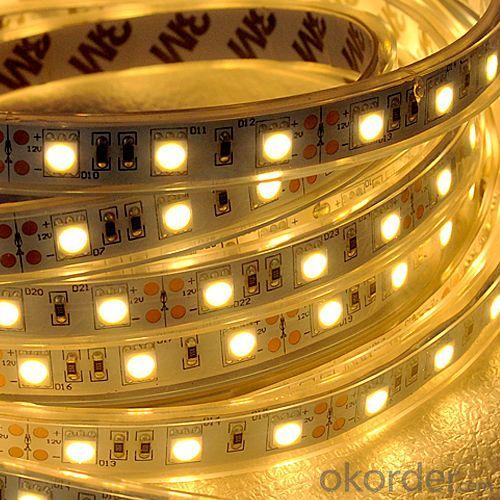

SMD 3528 High Intensity Flexible Led Strip 120Leds 9.6Watt Per Meter is a new kind of energy-saving lamps to replace traditional incandescent bulbs. Traditional incandescent lamp (tungsten lamp) owns some distinguished features like high energy consumption, short life, which are out of date and gradually been forbidden by most of countries. LED light has become the new green and perfect lighting choice in the aspects luminous principle, energy-saving and environmental protection.
Specifiaction
LED Type: 3528SMD, Epistar Chip
LED QTY: 120LEDs/Meter, 5Meters/Roll, 600LEDs/Roll, 600LEDs/16.40Ft
Max Lumens per LED:
3lm(Red),3lm(Yellow),5lm(Green),3.5lm(Blue),7lm(White),6lm(Warm White)
Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K
Power: 9.6W/Meter, 0.8A/M(12VDC), 0.4A/M(24VDC), 48W/Roll
Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.
Operating driver: LED Transformer with DC12V/DC24V output,
Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer
The flexible single color strip connect to power supply
View angle: 120 degree
CRI: 78~80 (White), 70~75 (Warm White)
CRI: >90 are available.
Lumen maintenance at 10,000hrs: 95%
Average life time: 50,000hrs
Storage temperature: -30°C~80°C / (-22ºF ~ 176ºF)
Operating temperature: -20°C~50°C / (-4ºF ~ 122ºF)
Warranty: 2 years
Certification: CE RoHS
Model Number | Color | Typ.Flux | LED QTY | Voltage | Power |
AH-3528R-12/24-120 | Red | 360 | 120 | 12V | 9.6 |
AH-3528Y-12/24-120 | Yellow | 360 | |||
AH-3528B-12/24-120 | Blue | 420 | |||
AH-3528G-12/24-120 | Green | 600 | |||
AH-3528W-12/24-120 | White | 840 | |||
AH-3528WW-12/24-120 | Warm White | 720 |
Super Bright Warm White: 840Lm/Meter
Super Bright Cool White: 960Lm/Meter are available.
Customized options
Customize your strip light by picture or by technical datas.

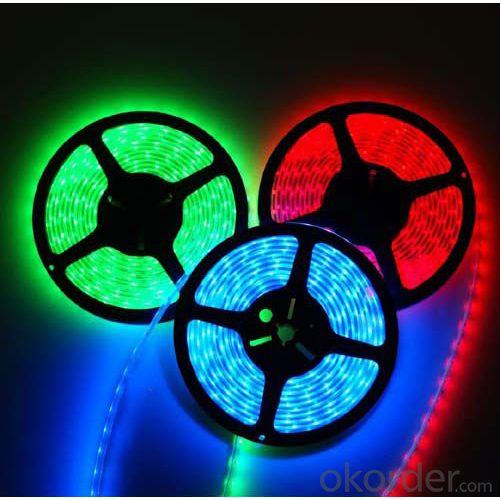

Color optional:
Red,Yellow,Blue,Green,White,Warm white,Amber, Orange, Pink, Purple.
Dimension: 5000*8*2.2mm /195*0.31*0.09inches
Pitch: 8.3mm / 0.33"
DC12V (Every 3 LEDs cut at 25mm / 0.98")
DC24V (Every 6 LEDs cut at 50mm / 1.97")
PCB Color: Brown, White, Black (Optional)
Cable length: 35cm / 13.78"
Free end cap: 1 Piece / Meter (Opitional)
Free mounting clip: 2 Pieces / Meter (Opitional)
LED Flex Strip Type | IP Protection | Size | Reference |
Non waterproof | IP20 | 8 x 2.2mm 0.31 x 0.08" | AH-3528-12/24-120 |
Epoxy / Silicone series | IP65 | 8 x 2.5mm 0.31 x 0.09" | AH-E3528-12/24-120 |
Silicone tube series | IP67 | 10 x 4mm 0.39 x 0.16" | AH-F3528-12/24-120 |
U-shape silicone series | IP67 | 10 x 5mm 0.39 x 0.19" | AH-U3528-12/24-120 |
PVC Tube + Epoxy series | IP68 | 10 x 4mm 0.39 x 0.16" | AH-G3528-12/24-120 |
All silicone series | IP68 | 10 x 5mm 0.39 x 0.19" | AH-S3528-12/24-120 |
