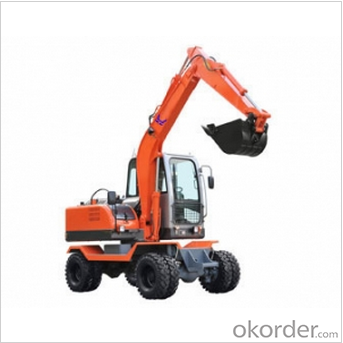

Small Wheel Excavator
Small wheel excavator W65-8 is widely used in projects like small earth & stone construction, municipal construction, road maintenance, layout of cables and pipes, garden cultivation, trenches clearance, and etc.
OPERATION RANGE | |
Boom Length | 3060mm |
Arm Length | 1750mm |
Maximum Digging Reach | 5970mm |
Maximum Digging Depth | 3450mm |
Maximum Digging Height | 5565mm |
Maximum Dumping Height | 3860mm |
Minimum Platform Tail Turning Radius | 1730mm |
Maximum Digging Depth of Bulldozing Plate (Optional) | 100mm |
DIMENSION FOR TRANSPORTATION | |
Width of Platform | 1900mm |
Overall Width | 1950mm |
Machine Height | 2750mm |
Distance from the Digging Arm to Center of Machine Rotation | 3785mm |
Maximum Length of Transportation | 5415mm |
Minimum Ground Clearance | 260mm |
Bulldozing Plate Height (Optional) | 490mm |
TECHNICAL PERFORMANCE | |
Power | 42kw/2100rpm |
Machine Weight | 5500kg |
Bucket | 0.28 m³ |
Pressure with main spill valve | 20Mpa |
Constant Flowrate Pump | 2×23L/min |
Variable pump (Optional) | 2×22L/min |
Maximum Digging Force | 45KN |
Maximum Traction Force | 60KN |
Gradeability | 56%(29) |
Pressure to the Ground | 49Kpa |
Travel Speed | 32Km/h |
Swing Speed of Platform | 10.5rpm |
Fuel Tank Capacity | 110L |
Hydraulic Tank Capacity | 125L |
