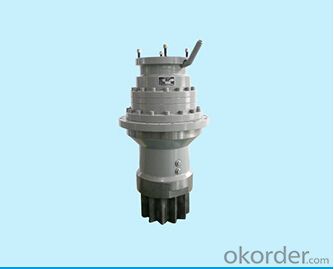

Slewing reducer JH17

Product Description:

Introduction

JH series slewing reducer is a hardened face planetary gear reduction device designed by our company according to the advanced foreign technologies with all gears adopting grinding process.The reducer has features of compact structure, stable operation, high transmition efficiency, low noise, long service life, high reliability, etc.Such series reducer can be equipped with torque motor, variable frequency motor and corresponding electrical control system to constitute RCV series slewing mechansim and JHF series slewing mechanism.

Specification

Model:JH17

Ratio:200

Rated output torque (N.M):18000

Output gear Parameter (Customization is avaible):m=16,z=12,x=+0.5

Weight(Kg):240

Parameters of JHF series matching variable frequency motors--Rated power of the motor kw:11，15

Recommended Tower cranes t.m:450~900
