Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:1000M m
Supply Capability:80000m per month m/month
Quick Details of Six High-pressure Hose Wire Entanglement
Place of Origin: | China (Mainland) | Size: | DN25-DN200 |
Specifications of Six High-pressure Hose Wire Entanglement
Six high-pressure hose wire entanglement
High pressure steel wire braided rubber hose
your satisfaction is our pursuit...

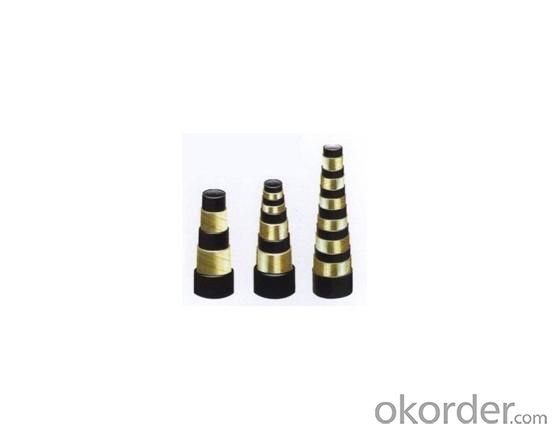

CONSTRUCTION This hose consists of an inner tube of oil syn-thetic rubber,six spiral wire reinforcements,and an oil and weather resistant synthetic rubber cover.
APPLICATIONSHose range suitable to carry hydraulic fluids such as gly-col,mineral oils,fuels,lubricants,emulsion,hydrocar-bons etc.
The Technical Parameters of Six High-pressure Hose Wire Entanglement
Hose size | Inside Diameter mm | Reinforcement Diameter (mm) | Outside Diameter (mm) | Work Pressure (MPa) | Proof Pressure (MPa) | Burst Pressure(Pb) | |||
Mpa | Psi | MPa | Psi | Mpa | Psi | ||||
6sp-6-110 | 6±0.5 | 16.6±0.8 | 20.6±1.0 | 110 | 15939 | 220 | 31876 | 440 | 63756 |
6sp-10-77 | 10±0.5 | 21.8±0.8 | 25.8±1.0 | 77 | 11157 | 154 | 22314 | 308 | 44628 |
6sp-13-66 | 13±0.5 | 24.8±0.8 | 28.8±1.0 | 66 | 9563 | 132 | 19126 | 264 | 38252 |
6sp-16-61 | 16±0.5 | 29.0±0.8 | 33.0±1.0 | 61 | 8839 | 122 | 17678 | 244 | 35356 |
6sp-19-60 | 19±0.5 | 33.0±0.8 | 37.0±1.5 | 60 | 7390 | 102 | 14780 | 204 | 29560 |
6sp-25-50 | 25±0.8 | 39.0±0.8 | 44.0±1.5 | 50 | 5651 | 78 | 11302 | 156 | 22604 |
6sp-32-45 | 32±0.8 | 47.0±0.8 | 50.4±1.5 | 45 | 5072 | 70 | 10144 | 140 | 20288 |
6sp-38-45 | 38±1.0 | 54.2±1.0 | 57.6±1.5 | 45 | 4057 | 56 | 8114 | 112 | 16228 |
6sp-51-45 | 51±1.0 | 67.2±1.0 | 70.6±1.5 | 45 | 3188 | 44 | 6376 | 88 | 12752 |
Packaging & Delivery
Packaging Detail:Plastic films
Delivery Detail:25days
