Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:100 unit/month
1-Excellent quality with competitive price.
2-World famous brand hydraulic system and other key parts.

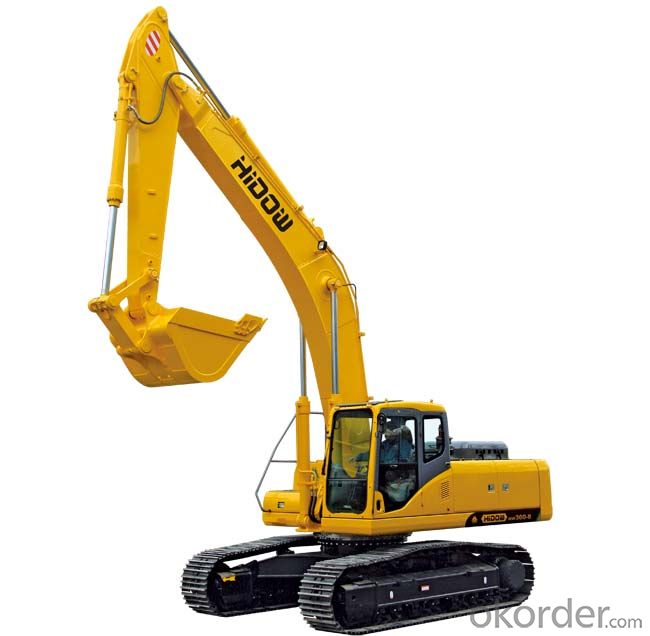

3-Hydraulic Excavator is good excavator,have good preformance.
4-perfect after-sale service system.
| Main Technical Paramenters | ||
| Main Parameters | Model | HW360-8 |
| (KG) Operating weight | 33800 | |
| (CBM) Bucket capacity | 1.6 | |
| (kN) Bucket digging force | 226 | |
| Performance of the Macine | (rpm) Swing speed | 9.6 |
| (%)Gradeability | 70% | |
| (Kpa)Ground pressure | 67.8 | |
| Engie | Engine Model | CUMMINS-6CT8.3 |
| (Kw/rpm) Rated Power | 186KW/RPM | |
| Emission standard | Ⅱphase | |
| Hydraulic System | Motor | KAWASAKI |
| (L/min) Flow rate of Motor | 2*280L/MIN | |
| MAIN VALVE | TOSHIBA | |
| travel motor | NABTESCO | |
| rotary motor | KAWASAKI | |
| Overall Dimensions | (mm)Length | 11135 |
| (mm)Width | 3190 | |
| (mm)Height | 3350 | |
| (mm) Counter weight ground clearance | 1223 | |
| (mm)Ground contact length of track | 3670 | |
| (mm)Track length | 4595 | |
| (mm)Shoe width | 600 | |
| (mm)Track gauge | 2590 | |
| (mm) | 4364 | |
| (mm) Swing radius | 3450 | |
| Working Range | (mm) Max. digging radius | 10918 |
| (mm) Max. digging depth | 7076 | |
| (mm) Max. digging height | 10341 | |
| (mm) Max. dumping height | 7435 | |
| (mm) Max. vertical digging depth | 6178 | |
| (mm) Max. depth cut for 2.5m level bottom | 6905 | |
| Cab | Air-conditioning brand | DENSO |
| seat brand | Grammer | |
