Loading Port:Shanghai
Payment Terms:TT or LC
Min Order Qty:1 watt
Supply Capability:1000 watt/month

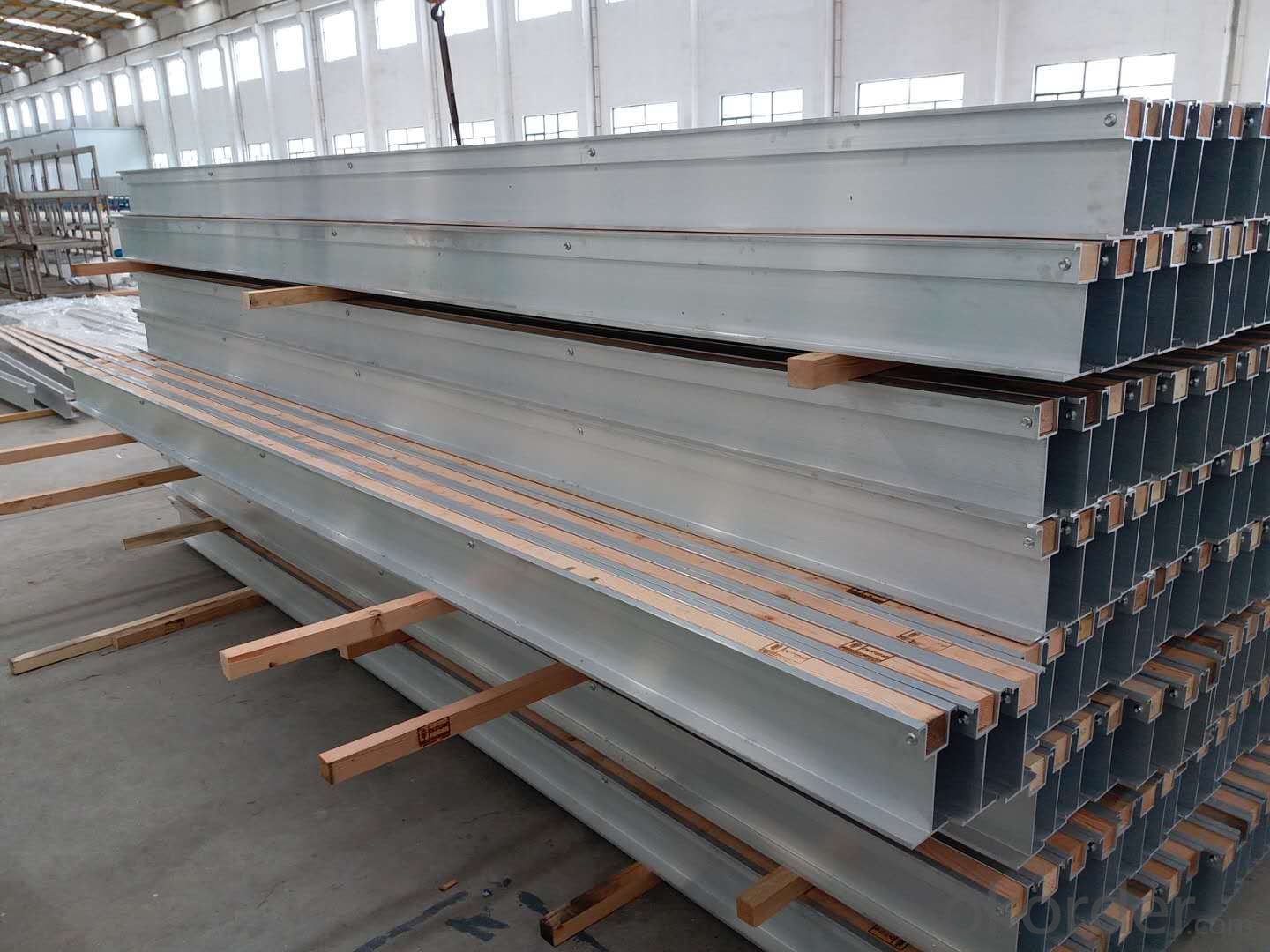

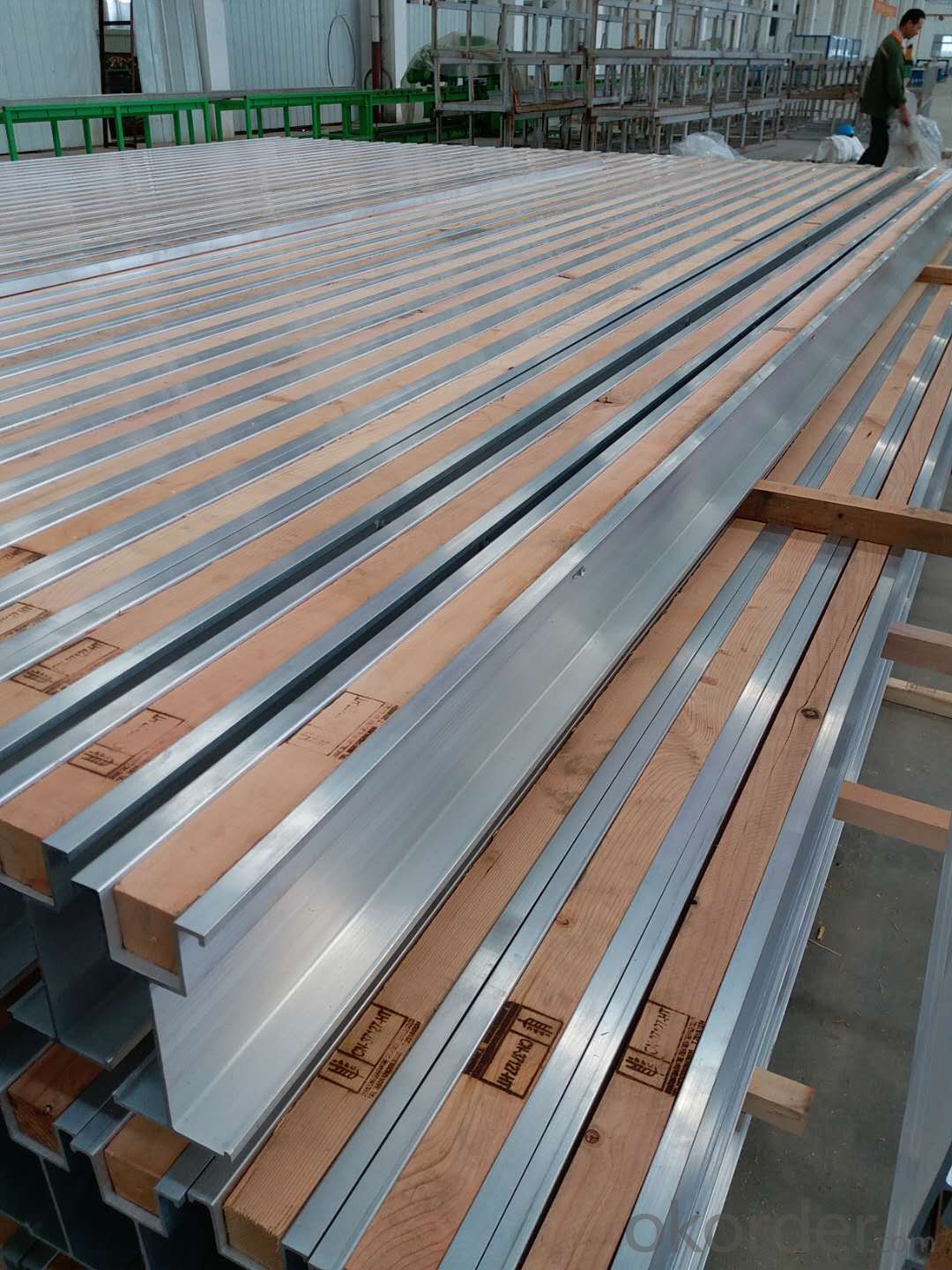

Single-web S150 Aluminum Beam
Aluminium Beams are a proven safe long term investment, when planning your formwork options. These high quality and fully technically compliant beams can provide a robust solution for your typical horizontal elements, such as floor slab and beams. The same equipment beams provided with our engineering drawings and calculations will also perform for all vertical elements such as walls or columns.

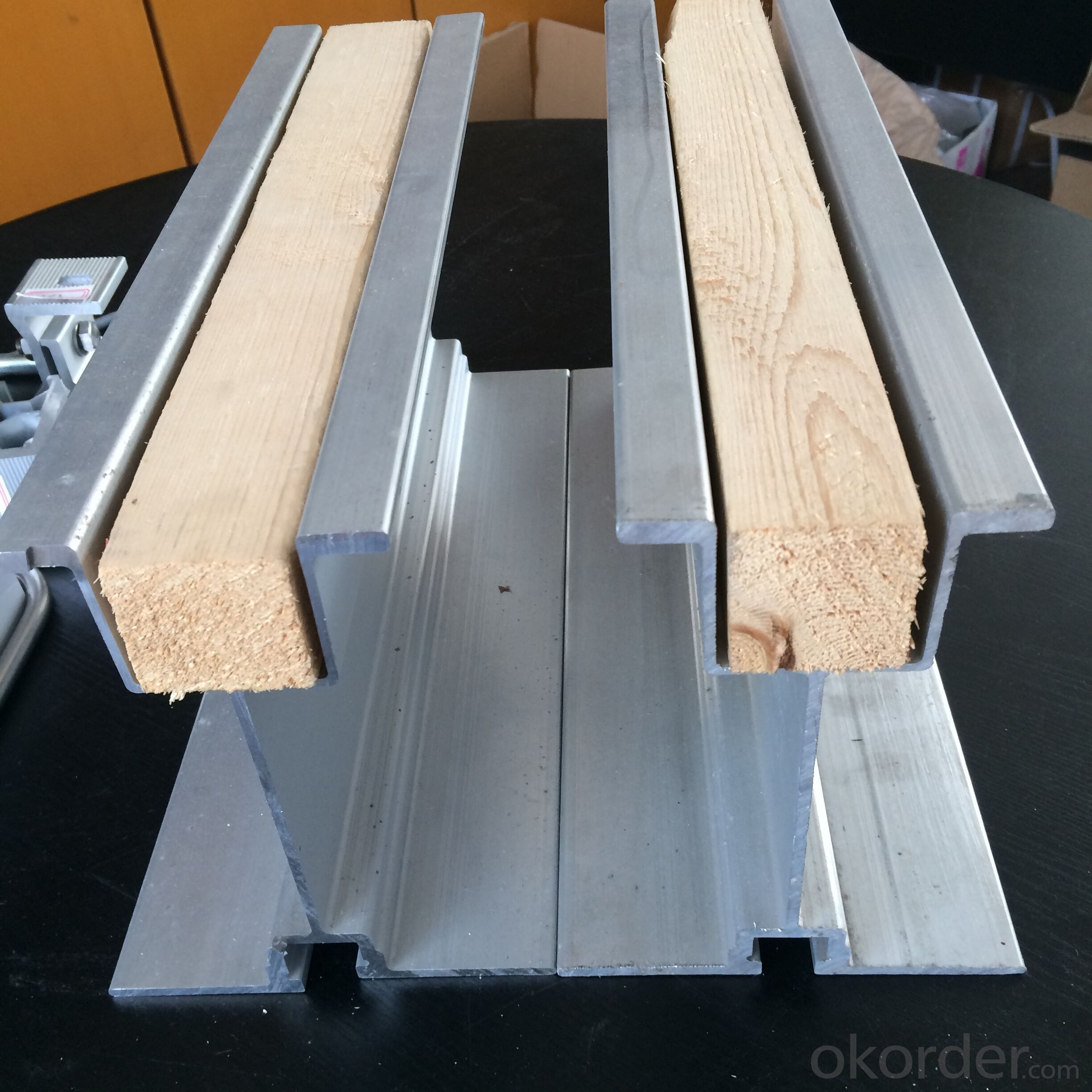

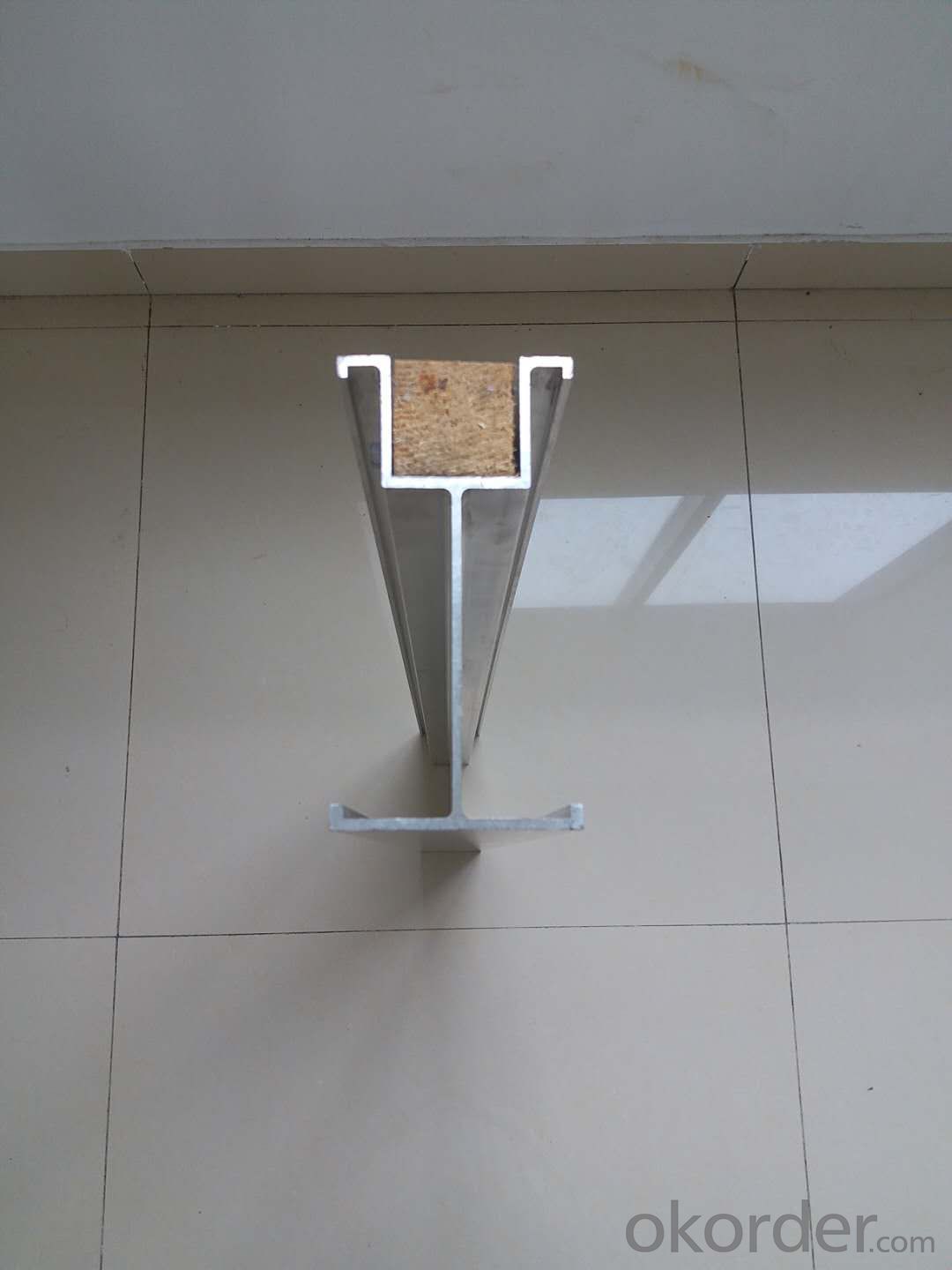

S150 beam supplied with timber/rubber/placstic inserts to allow for plywood to be fixed. The S150 is available for general use to suit all budgets.
| Code No. | Length (m) | Weight (kg) |
| C272 | 7.20* | 28.58 |
| C264 | 6.40 | 25.40 |
| C260 | 6.00 | 23.82 |
| C257 | 5.70 | 22.63 |
| C251 | 5.10 | 20.24 |
| C242 | 4.20 | 16.67 |
| C236 | 3.60 | 14.28 |
| C227 | 2.70 | 10.71 |
| C218 | 1.80 | 7.14 |
| C216 | 1.60 | 6.34 |
| C212 | 1.20 | 4.74 |
