Single-Side Climbing Bracket SCB 180

Product Description:

1 . INTRODUCTION OF Single-Side Climbing Bracket SCB 180

With SCB 180 climbing systems,the loads from the fresh concrete pressure are transferred through the brackets by means of V-strongbacks and compression braces into the scaffold anchors.

Typical applications for the SCB 180 are dams,locks,cooling towers,pier heads,tunnels and bank vaults.

The formwork is simply tilted backwards when striking take place.The 1.80M wide bracket requires only a minimum of space.

2 . CHARACTERISTICS OF Single-Side Climbing Bracket SCB 180

Economical and safe anchoring

The M30/D20 climbing cones have been designed especially for single-sided concreting using SCB 180 in dam construction,and to allow the transfer of high tensile and shear forces into the still fresh,unreinforced concrete.Without wall-through tie-rods,finished concrete is perfect.

Stable and cost-effective for high loads

Generous bracket spacings allow large-area formwork units with optimal utilization of the bearing capacity.This leads to extremely economical solutions

Simple and flexible planning

With SCB 180 single-sided climbing formwork,circular structures can also be concreted without undergoing any large planning process.Even use on inclined walls is feasible without any special measures because additional concrete loads or lifting forces can be safely transferred into the structure.

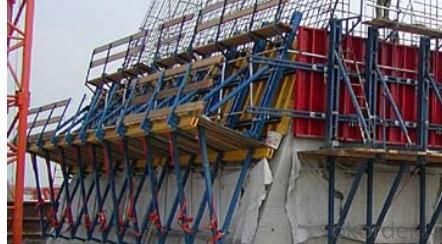

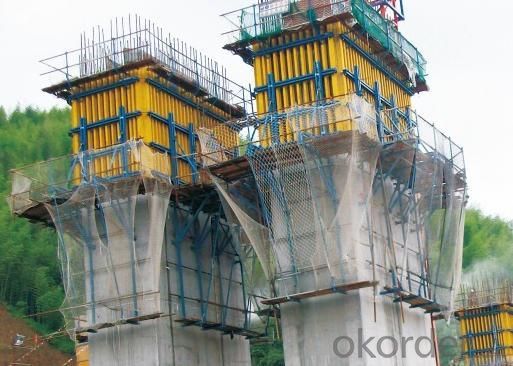

3.PROJECT APPLICATION OF Single-Side Climbing Bracket SCB 180
