Single Core PVC Wire 0.6/1kV as per AS/NZS 5000.1

Product Description:

Single Core PVC Wire 0.6/1kV as per AS/NZS 5000.1

Application

For separate earth conductors, switchboard and control panel wiring. For fixed wiring within other enclosures or apparatus where the cable is not accessible without the use of tools.

• Rated voltage: 600/1000V

• Conductor: Copper 1~150 mm2

• Insulation: PVC, V-90

• Environmental performance: Normal operating temp. 75℃

• Standards compliance: AS/NZS 5000.1

• OEM can be available

• Remark: Flame retardant or fire resistance or Low Smoking and Halogen free or other property can be available

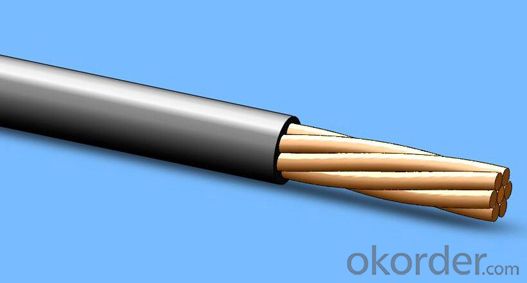

Product photo

Main Quality Inspection Equipment

Sparker tester,Heating aging Chamber,High resistance machine, Oxygen index equipment, Partial discharge inspection instruments, Fireproof testing device,High-power voltage withstand tester,No-rotor Vulkameter,Pull tester,Analytical balance,Direct current bridge,Plastic tester,Projector, Punch machine,Cross-linked cutting machine,etc.
