Single-core Cable PV-1x4.0mm² made in China

Product Description:

Description of Single-core Cable

 Single core refers to only have a conductor in an insulating layer. When more than 35 kv voltage, most of the single-core cable, the wire core and the relationship between the metal shielding layer, can be seen as a transformer coils in the primary winding and iron core. When a single core cable core in current will have lines/aluminum package or metal shielding layer, make it appear at both ends of the induced voltage.

Main Features of Single-core Cable

Dual wall insulation, Electron beam cross-linked

Excellent resistance to UV,water,ozone,fluids,salt,general weathering

Excellent resistance to abrasion

Halogen free, flame,ratardant,low toxicity

Excellent flexibility and stripping performance

High current carrying capacity

TUV and UL approved

Specifications of  Single-core Cable

Technical Data of Single-core Cable

Wire:Class5 tinned

Insulation material: XLPE

Double insulated

Halogen-free

HIgh resistance against oils, greases,oxygen and ozone

Microbe-resistant

UV resistant

High wear and abrasion resistance

Flame test according to :DIN EN 50265-2-1 UL 1571(VW-1)

Smallest permissible Bending Radlus 5xD

 Temperature range -40℃~+90℃

 Colours: Black Red

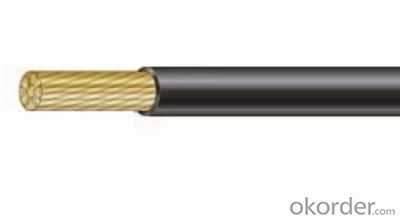

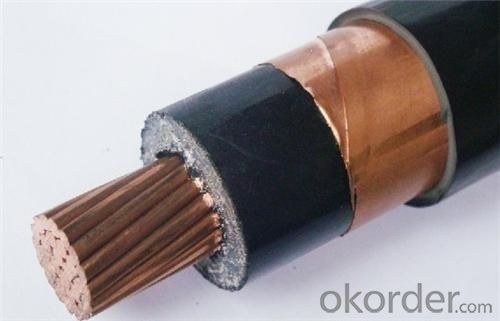

IMages of Single-core Cable

FAQ:

① why from okorder？

Okorder is a qualified supplier of all kinds of building matierials in China. All products have been showed in Okorder website are under well controlled by okorder QC team.

All products had been produced under a clear quality standard and the quality is consistence among the shipments.

Okorder has already setted up more than 20 warehouses in different markets to show the products. You are convenient to know the products from your local place and it will help you to make decision easyly.

②How to guarantee the quality of the products？

We have established a perfect quality management system，as for raw material and semi parts all are under strict quality test and we have a IQC system to control the purchases.

QC on site is very strict and all steps of process are measured per drawings. Before delivery, we set a OQC system to make sure each piece meet the standard of order.from design to delivery,

③How long can we receive the product after purchase?

Lead time depending on order quanity, The normal order can be deliveried with 3 weeks.
