Loading Port:Qingdao
Payment Terms:TT or LC
Min Order Qty:200 pc
Supply Capability:200000 pc/month

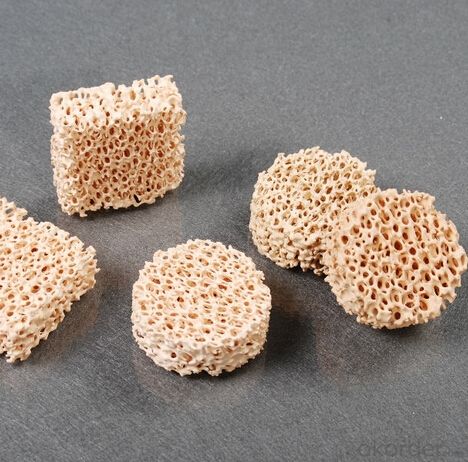

1.Production of ceramic foam filter
Ceramic Foam filters are just developed as a new type molten metal filter to decrease casting flaw in recent years. With its characteristics of light-weight, high mechanical strength, large specific surface areas, high porosity, excellent thermal shock resistance, erode resistance, high-performance, Ceramic Foam filter is designed for filtering impurities from molten Iron & Alloy, nodular cast iron castings, grey iron castings and malleable castings, Bronze casting, etc.
2. Functions of ceramic foam filter
1). Thermal and chemical stability in high temperature,avoiding the chemical reaction with the filtered molten metal;
2). High porosity and good mechanical strength in high temperature due to its pure ceramic composite;
3). Low head loss,easy operation,energy-saving;
4). Making metal liquid flowing at stable speed and avoiding the sputtering and backset,thus increasing the surface quality of the cast part,preventing the pore disfigurement and finally lower down the unqualified rate;
5). Various sizes,shapes,apertures are available for kinds of foundry technique.
3.Physical and chemical properties
Silicon Carbide Foam Filters Data Sheet | ||||||
Material/Item | Density | Porosity | Refractoriness | compressive strength at Normal Tem. (≥Mpa) | Thermal Shock Resistance (time/1100 º C) |
Color |
Alumina | 10-20 | 80-87 | 1500 | 1.0 | ≥ 6 | Gray-Black |
Common specifications and sieving capacity
Specifications( mm) | Biggest filtering ability (Kg) | Molten Iron Velocity(Kg/s)
| ||
Ductile Iron | Gary Iron | Ductile Iron | Gary Iron | |
(30~200)X(50~200)X22 | 30~450 | 60~900 | 3~36 | 4~54 |
200x200x40 | 800 | 1600 | 64 | 95 |
Dia40X11 | 20 | 40 | 2 | 3 |
(Dia40~150)X22 | 35~350 | 70~700 | 2~25 | 4.5~38 |
Dia 200X40 | 620 | 1240 | 44 | 67 |
4.Usage of ceramic foam filter
5.FAQ
We have organized several common questions for our clients，may help you sincerely：
①How about your Warranty？
Warranty: 1-Year for the whole light. Warranty is based on correct storage, installation, using and maintenanc
②How to guarantee the quality of the products？
We have established the international advanced quality management system，every link from raw material to final product we have strict quality test；We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance.
③How long can we receive the product after purchase?
In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers.Commonly 7 to 10 working days can be served.
