Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:10 m.t.
Supply Capability:100000 m.t./month

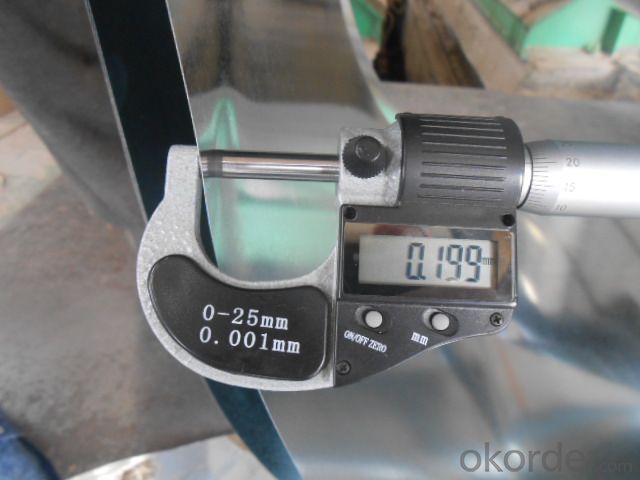

SGCH 0.19*762mm Hot Dip Galvanized Steel Coil
Material Composition Sheet:
Steel Grade | Chemical Composition (%) | Mechanic Property | C.B of Coating | Coating | ||||||
C | Si | Mn | S | P | T.S | Y.S | E.L | |||
x103 | x103 | x102 | x103 | x103 | Mpa | Mpa | % | D=0 180° | G/M² | |
JIS G3302 SGCC | 12 | 30 | 41 | 31 | 21 | 480 | 300 | 13 | OK | Z60-150 |
JIS G3302 SGCH | 12 | 10 | 21 | 18 | 8 | 680 | 650 | OK | Z60-150 | |
ASTM A653 CS.B | 20 | 30 | 60 | 35 | 30 | 386 | 205-380 | 20 | OK | Z60-275 |
DX51D+Z | 29 | 21 | 18 | 1.8 | 11 | 355 | 245 | 38 | OK | Z60-275 |
G550 | 20 | 6 | 73 | 5 | 17 | 715 | 654 | 8 | OK | Z60-275 |
