Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:5 unit
Supply Capability:50 unit/month
1. Product Description:
This machine has three functions, filling, valve putting, valve capping on one machine. Also may according to the customer request to capping outside lid. No bottle, no filling. This machine is simple operation, saving merits of human, not consumption field, etc. It can be equipped with a protecting cover and a checking-drop installation according to client’s requirement.
Suitable for electrical products, hardwares, softwares, food, printing products, medications, floor boards, ceramics etc's packing.
2. Product Features:
High temperature and sticky free L bar sealing knife, sealing action without smoking and burned. Sealed part is tidy and clean.
After sealing action, packing product go in the shrink tunnel automatically by the conveyor belt. Conveyor belt is adjustable on the high by a hand wheel. BTL-450A has a manual/auto switch. When choose auto function, Whole sealing action controlled by cylinder automatically, with fast packing speed.
Double electromagnets make stronger pressure.
Adjustable film layer with needle device, it is able to fit different size film, max 550mm.
Sealing knife has hot protection device on.
3. Product Parameters:
Model | BTL-450A | BM-500 |
Max Packing Size | (L+H)≤500mm (W+H)≤400mm (H)≤200mm | (L)700×(W)450×(H)250mm |
Max Sealing Size | (L)550×(W)450mm | (L)1200×(W)500×(H)300mm(shrink tunnel size) |
Packing Speed | 800~1200 packs/hour | 30~50 packs/min |
Electric Supply & Power | 220V/50Hz 1.2kw | 380V/50Hz 12kw |
Air Pressure | 6kg/cm3 | / |
Weight | 125kg/135kg | 220kg |
Overall Dimensions | (L)1550×(W)750×(H)1050mm | (L)1350×(W)750×(H)1500mm |
4. FAQ:
Q1. What’s your products’ detailed package?
A: 1.Carton & wooden case 2.According to customer's requirements
Q2. What’s the normal delivery time?
A: About 30 days after the payment

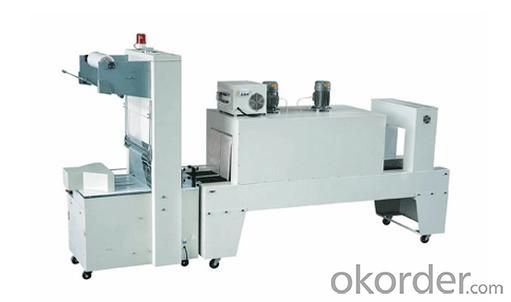

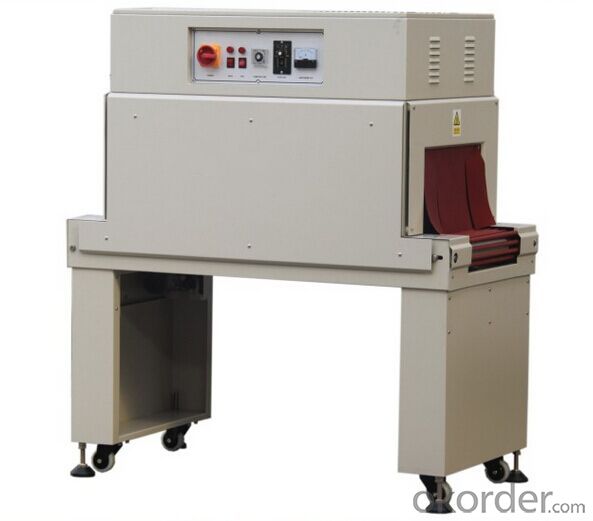

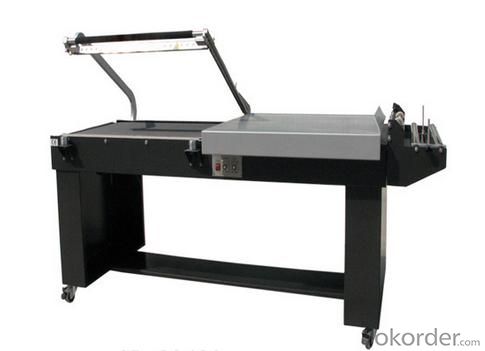

5. Product Pictures:
