Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:1000 unit/month

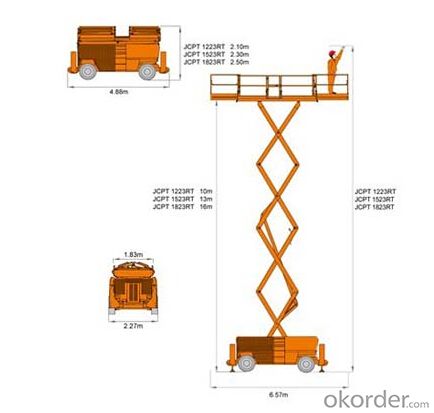

| Model | JCPT1223RT | JCPT1523RT | JCPT1823RT | ||
| Lift Rated Capacity | kg | 1000 | 680 | 680 | |
| Platform Extend Capacity | kg | 227 | |||
| Wind speed 45km/h | 45km/h | ||||
| Max. Machine Height | mm | 12000 | 15000 | 18000 | |
| Max. Platform Height | mm | 10000 | 13000 | 16000 | |
| Overall Length | mm | 4880 | |||
| Overall Width | mm | 2270 | |||
| Overall Height | mm | 2760 | 2980 | 3150 | |
| Platform Size | mm | 3980X1830 | |||
| Platform Extend Length | mm | 6570X1830 | |||
| Ground Clearance | mm | 220 | |||
| Wheelbase | mm | 2860 | |||
| Turning radius-inside/outside | mm | 2040/5200 | |||
| Motor | Perkins404D22 | 38kw/3000 rpm | |||
| Kubota V2403-M-DI | 34kw/2400 rpm | ||||
| Drive speed-stowed | km/h | 6 | |||
| Drive speed-raised | km/h | 1.1 | |||
| Raise/lower speed | sec | 45/29 | 94/77 | 114/94 | |
| Gradeability-stowed | ％ | 50 | 50 | 40 | |
| Max angle | 。 | 3 | |||
| Hydraulic oil box | L | 130 | |||
| Diesel tank | L | 100 | |||
| Tyre(solid tire) | 33x12-20 | ||||
| NW | kg | 7300 | 7800 | 8700 | |
Standard Configuration
-Can bus line intelligent controller
-Proportional controller
-Automatic pot hole protection system
-4x4 drive
-Floating bridge
-Tilt protection
-Tilt alarm
-Horn
-Working chronometer
-Emergency pump
-Electric circuit fault code display
-Extended platform
-Rotary strobe light
-Euro Ⅲ emission standard engine
-Overload limit
Optional Configuration
-Hydraulic electric welding machine
-Hydraulic generator
-Hydraulic air compressor
-Hydraulic high pressure water pump
-Hydraulic oil radiator
-AC power source connected to platform
-Working lamp

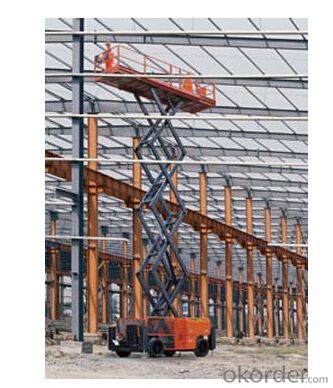

The product is mainly applied in the fixing, constructing, detecting and maintenance of large-scale bridge, steel structure workshop and sorts of aerial equipment. It can be used in all kinds of rugged terrain. CE certified.
1)Structure: scissors, enable extended-platform, good performance of elevating and loading.
2)Sole control system, drive mode: 4×4, maximum speed：6.5km/h.
3)Gradeability:40%.
4)Tilt alarm, the auto-leveling system of four crutch-leg .
5)Emergency down-valve device.
6)Double anti-press protection: electric-control and safety-web
