SC200/200 Frequency Conversion Construction Hoist

Product Description:

Description

Rongda Construction Hoist with Manufacturer License of Special Equipment People’s Republic of China, customer can choose the painted or zinc mast for the construction hoist. Customer can tell MASAN the detailed specifications of construction hoist and MASAN makes the suitable products for customers.

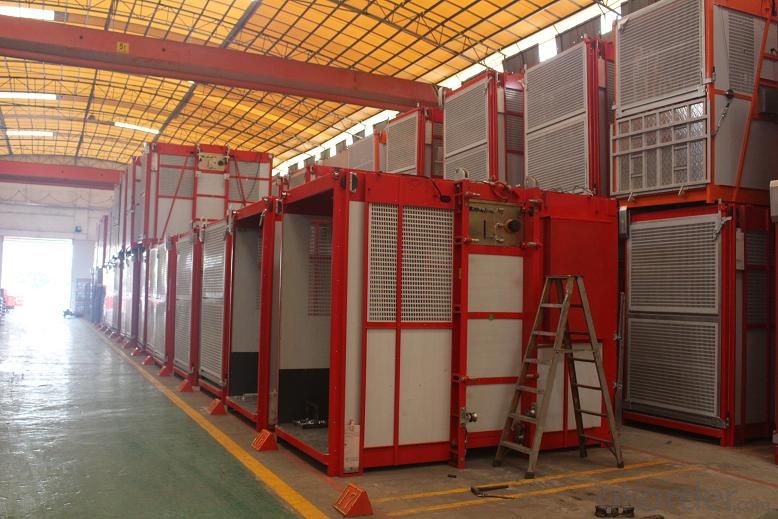

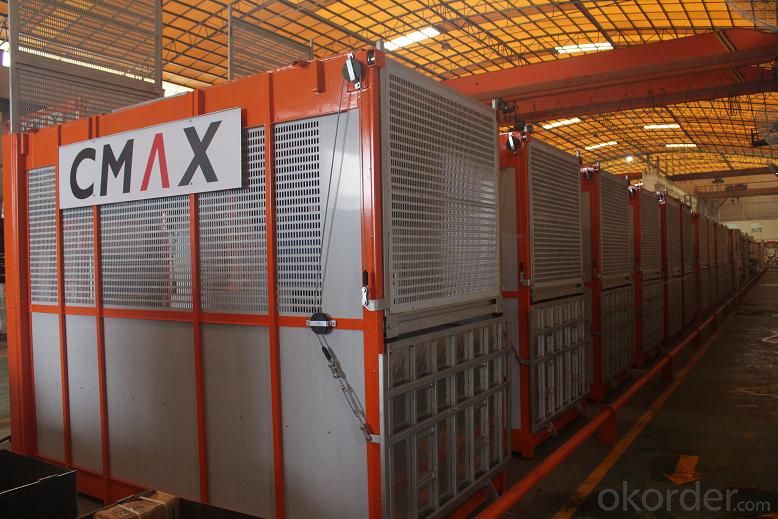

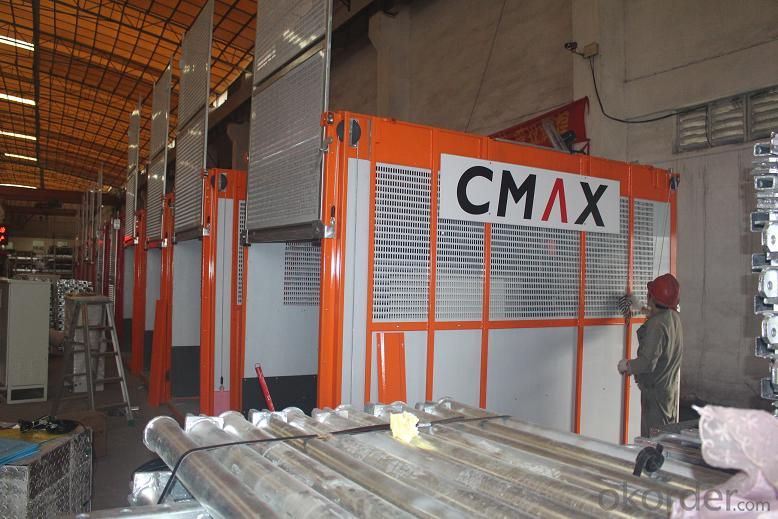

two cages (assembled with anti-drop safety device, door limit switches up & down limit switches, 3-phase limit switch, cage control box),

one base frame with 6 J-bolts (M24x410)

two main supply control boxes

one drop testing control box

two cage ladders

two sets of top-cage hand rail

all of the necessary bolts

Double cage  Middle speed

Features

Rated Capacity: 2T

Lifting speed: 0~50m/min

Motor power: 2x2x15kW

Inverter power: 2x37kW

Cage size (Length x width x height): 3.2x1.4x2.25m

Mast size (Length x width x height): 650x650x1508mm

Safety device: anti-dropping tripper

Mast weight: 124.2 kg(with two racks)

Power saving. Start current is lower than rated current.

Running at various speed up to 90m/min

Frequency convertible control system

Specification

FAQ of Construction Hoist

Q: What is the building hoist main purpose?

A: Building hoist equipped with double or single cabin to transport the materials and labors up and down. It's the ideal

construction equipment for vertical transportation in the field of construction.

Q: What is the main structure of building hoist?

A: The P/M construction hoist mainly contains metal structure, driving system, electrical control system, cable guide &

protection system, electrical top crane and safety device.

Q: What is the meaning of the building hoist’s code?

 A: Take SC200/200 for example: “SC” stands for rack and pinion hoist, “200/200” stands for double cage and capacity

is 2 tons per cage. “SC200” stands for single cage and capacity is 2 tons.

Q: What is the dimension of the cage?

A: Normally the cage dimension is 3X1.5X2.5M (L/W/H) for 2t type hoist. Details should be checked according to our

quotation sheet. Also, the size can be customized according to the factual site condition.  There are two doors (entrance

 & exit doors) for each cage, It can be produced as up & down sliding or ramping model for safety and convenience.
