Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:10000 unit/month

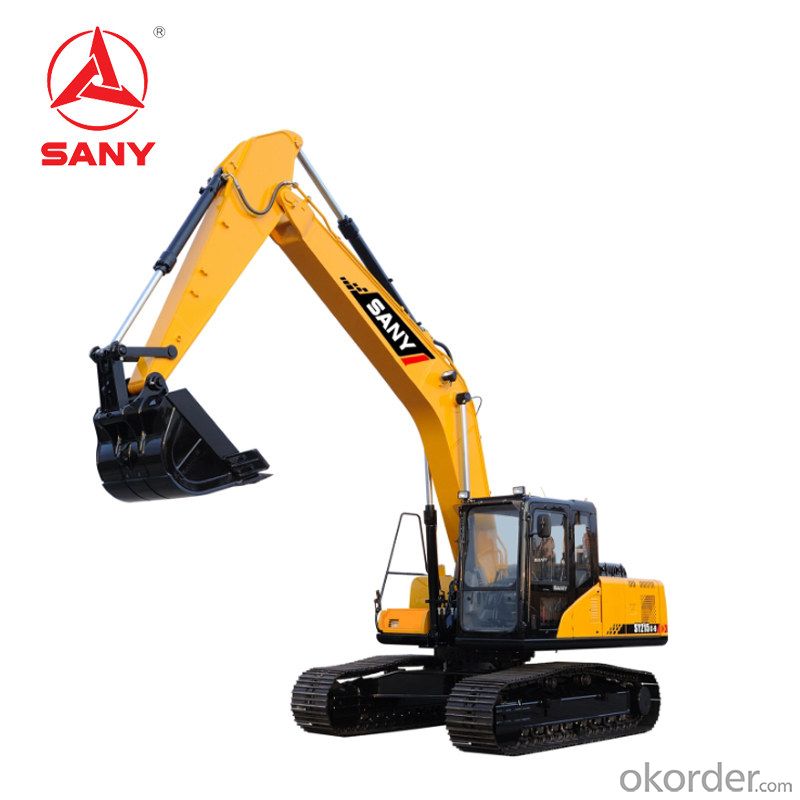

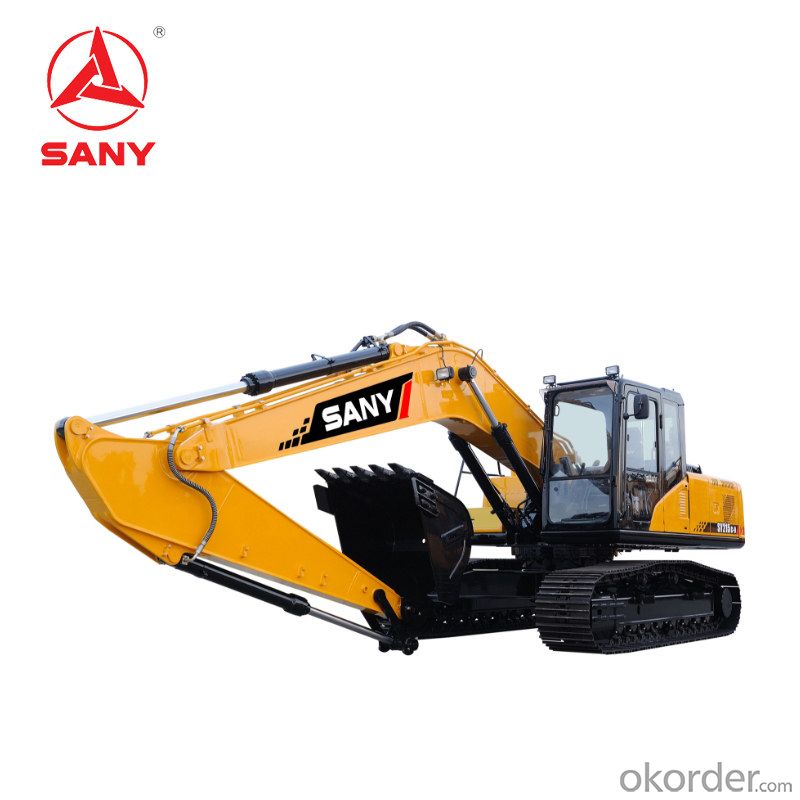

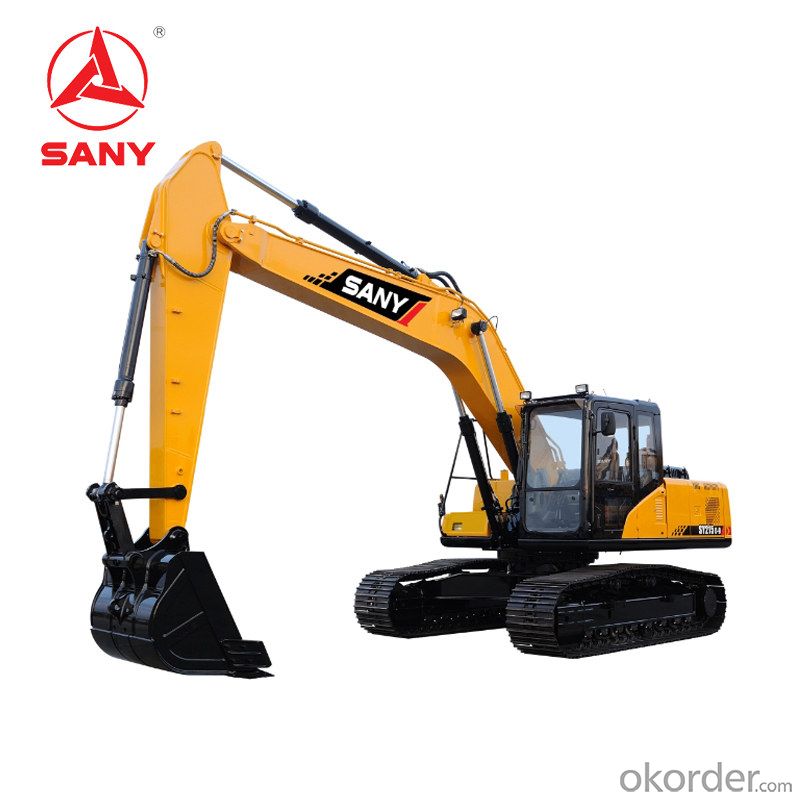

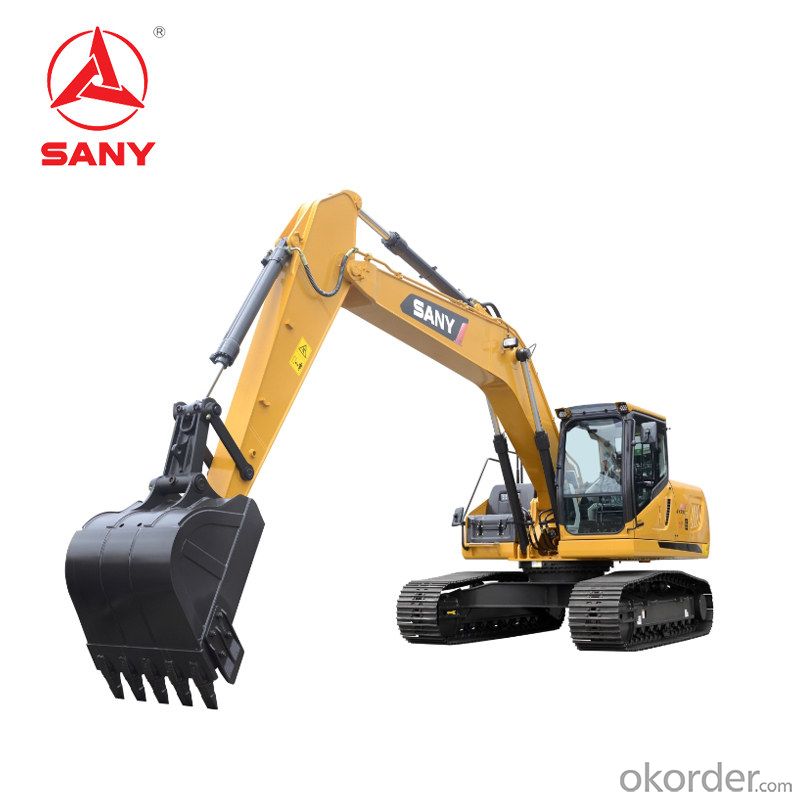

SY215C 21.9 ton excavator features customized engine, strengthened components, high operating efficiency, low fuel consumption, easy maintenance and comfort cabin.
High Efficiency & Low Consumption
1. Working Efficiency Up by 8%
2. Fuel Consumption Down by 10%
3. Digging Force Up by 9.5%
High Reliability
1. Powerful Customized Machine
The Mitsubishi engine with rate power of 128/2000 kW/rpm, 6-cylinder, 4-stroke direct-injection turbocharger, and 5.86L displacement is customized for SANY excavators, meeting your expectation on engine stability.
2. Strong Structural Components
Safety and Comfort
1. Falling Object Protection Structure
2. Large Rear View Mirror & Alternate Exit
3. Large Low Noise Cab
New-type engine system
| Specifications | Main performance | ||
| Total weight | 21900kg | Emission standard | Tier 3 |
| Engine | Isuzu | Digging force of bucket | 138kN/148kN |
| Type | 4-cylinder | Digging force of arm | 103kN/107kN |
| Rated power | 128/2000 kW/rpm | Arm length | 2.92m |
| Maximum torque | 580N·m/1600rpm | Boom length | 5.7m |
| Bucket capacity | 0.9m³ | Traveling speed(high/low) | 5.4/3.3(km/h) |
| Displacement | 4.9L | Ground pressure | 47.4/45.9kPa |
| Capacity of oil and coolant | Traveling section | ||
| Fuel tank | 340L | Number of track shoes | 47 |
| Hydraulic oil | 239L | Carrier wheel on each side | 2 |
| Coolant | 29L | Thrust wheel on each side | 8 |
| Final drive | 2*5.0L | Standard track | 600mm |
| Engine oil | 22L |
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
