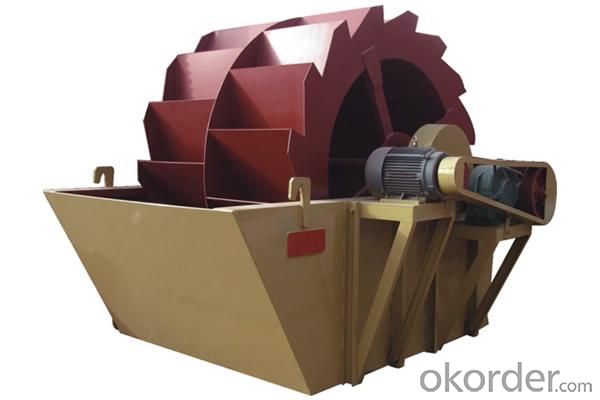

Sand Washing Machine

Loading Port:China Main Port

Payment Terms:TT or LC

Min Order Qty:1 Set set

Supply Capability:100 Sets Per Month set/month

Product Description:

Specifications

Fine and medium sands seldom lapses out, grading and size of final sand meet required standard.





Description:

Sand washing machine is depending on the practice in sand and stone production, absorbing the leading technology home and abroad, and is widely used in sand making industry. It can wash stone powder and residual away from the sand and is widely used in quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on.



Features:

1. Simple structure;

2. The bearing device of impeller drive is separated from water and materials with water, to avoid the damage of the bearing;

3. Little lose of fine-mid sand and stone powder; the grade and fineness of washed build sand can reach required standard;

4. No sparing-parts except for sieves;

5. High capacity, low power consumption; long life span.

Model

XSD-2610

XSD-2816

XSD-3016

Wheel Size

(mm)

2600×1000

2800×1600

3000×1600

Wheel Speed

(r/min)

1.178

1.177

1.179

Capacity

(t/h)

20-50

30-60

50-120

Feeding Size

(mm)

≤10

≤10

≤10

Power

(KW)

5.5

7.5-11

11-15

Reducer Model

ZQ50-50-I-Z

ZQ65-50-I-Z

ZQ65-50-I-Z

Dimension

(mm)

3255×1982×2690

3540×3000×2880

3845×3000



Packaging & Delivery

Packaging Details:Acoording to the contract

Delivery Detail:30 days
