Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:5 m.t.
Supply Capability:2000 m.t./month
Quick Details ：
Steel Grade: Alloy Steel Standard: AISI, ASTM, BS, DIN, GB, JIS
Dimensions: DIA: Max 800mm Technique: Hot Rolled or Forged
Application: Die Steel Bar Alloy Or Not: Is Alloy
Special Use: Mold Steel Shape: Round bars/Flat bar/Plate
Heat treatment: Annealing/Q+T Test: SGS/UT100%/Elements testing
Certificate: ISO/Mill certificate
Technology: Hot Rolled/Forged/Clod Drawn
Surface treatment: Black/Peeling/Polishing/Machined
Model Number: 4140/1.7225/42CrMo/SCM44/42CrMo4
Delivery condition: Hot rolled or forged/ Peeled or black surface/annealed or QT
Packaging Details: seaworthy packing; 20ft: GW:17.5T; (5.80mX2.13mX2.18m,) 40ft: GW:22T; (11.8mX2.13mX2.18m,)
Description:
1,Size of 4140 Steel Round Bar | ||||||||
Round bar | Diameter(mm) | Length (mm) | ||||||
20~800 | 3000~9000 | |||||||
Plate | Thickness(mm) | Width (mm) | Length (mm) | |||||
Max:800 | Max:2200 | Max:9000 | ||||||
The specification can be customized. | ||||||||
2,Chemical Compositions | ||||||||
Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
42CrMo | 0.38~0.45 | 0.17~0.37 | 0.50~0.8 | ≤0.035 | ≤0.035 | 0.9~1.2 | 0.15-0.25 | ≤0.3 |
4140 | 0.40~0.45 | 0.15~0.35 | 0.75~1.0 | ≤0.035 | ≤0.040 | 0.8~1.1 | 0.15-0.25 | - |
SCM44 | 0.38~0.43 | 0.15~0.35 | 0.60~0.9 | ≤0.030 | ≤0.030 | 0.9~1.2 | 0.15-0.30 | ≤0.25 |
1.7225 | 0.38~0.45 | ≤0.40 | 0.60~0.9 | ≤0.025 | ≤0.035 | 0.9~1.2 | 0.15-0.30 | |
3,Features of 4140 alloy steel | ||||||||
1, Chromium molybdenum alloy steel | ||||||||
2, Slightly higher carbon content then 4130 | ||||||||
3, Greater strength and heat treatment | ||||||||
4,Typical Applications | ||||||||
1, Applications in the oil and gas sector | ||||||||
2, Connection rods, collets, conveyor pins, | ||||||||
3, Gears, stem assemblies, | ||||||||
4, Pump shafts and tool holders | ||||||||

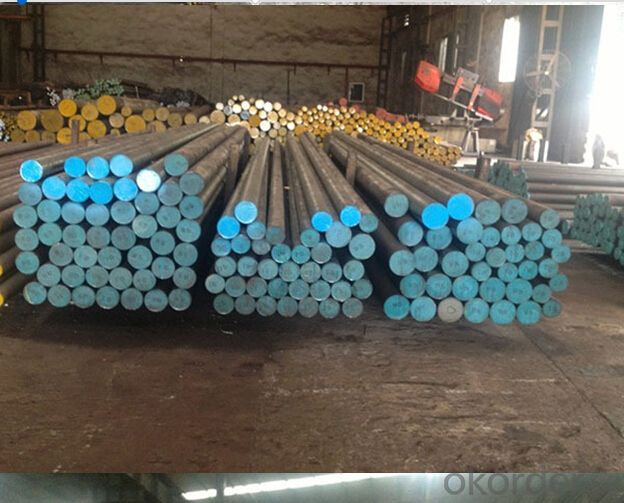

Reference picture
