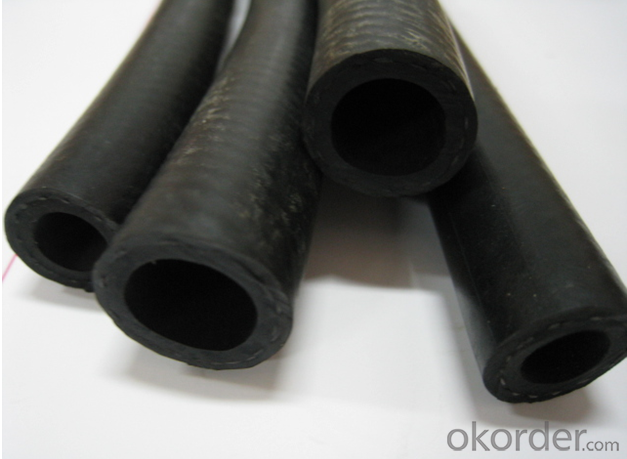

SAE J2064 rubber car Air Conditioner Hose
R-134a Air Conditioning Hose used for the air system of car, bus, track ect.
China Rubber Air Hose, Rubber Air hose Assembly with quick coupler
SAE J2064 rubber car Air Conditioner Hose ,Construction materails:
Tube: CSM
Barrier: NYLON
Buffer: NBR
Reinforcement: GUM CHICLE THREAD.
Cover: EPDM
Color: Black .
Application Temperature: -40℃-+135℃
Application Media: R134a
Standard: SAE J2064
Certification: ISO/TS:16949:9001 Application: Mainly used for conveying R12, R134a etc medium in automobile air-conditioning system like bus transit system.
Specification as below list:
R134a Air Conditioning Hose(A10) | |||||
No. | Specification | I.D.(mm) | O.D(mm) | Working Pressure(Mpa) | Burst Pressure(Mpa) |
QRT01 | 5/16’’ | 8±0.4 | 15.2±0.5 | 3.5 | 23 |
QRT02 | 7/16’’ | 11.5±0.4 | 18.4±0.5 | 3.5 | 22 |
QRT03 | 1/2’’ | 13±0.4 | 21±0.5 | 3.5 | 20 |
QRT04 | 5/8’’ | 15.5±0.4 | 23±0.5 | 3.5 | 21 |
R134a Air Conditioning Hose(A20) | |||||
No. | Specification | I.D.(mm) | O.D(mm) | Working Pressure(Mpa) | Burst Pressure(Mpa) |
QRT05 | 5/16’’ | 8±0.4 | 19±0.5 | 3.5 | 21 |
QRT06 | 13/32’’ | 10±0.4 | 23±0.5 | 3.5 | 21 |
QRT07 | 1/2’’ | 13±0.4 | 25.4±0.5 | 3.5 | 22 |
QRT08 | 5/8’’ | 16±0.4 | 28.6±0.5 | 3.5 | 18 |
