Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 m
Supply Capability:10000000 m/month

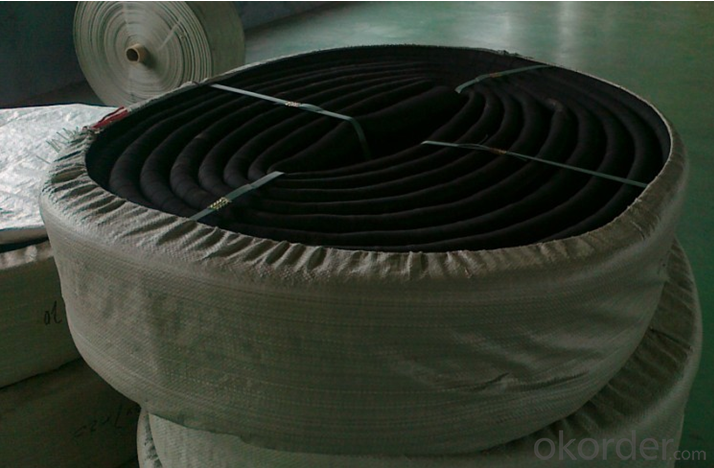

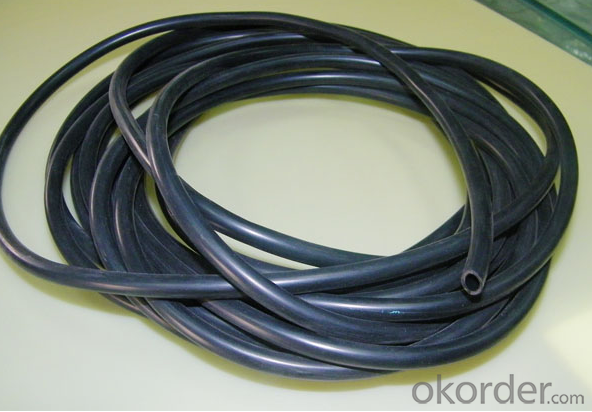

Rubber Suction Hose
1. Abrasion resistant
2. Complete in All Specifications
3. Durable in Use
4. Competitive price
A Brief Introduction:
The rubber suction hose is installed between the pump and cutter of the dredger to suck the mixture of silt and water with negative pressure.The suitable working temperature is from -20°C to +50°C.Thickness: the pipe wall is from 20mm to 50mm.
Construction:
Wear tube: Mainly Nature rubber mixing SBR o NBR
Tire cord: High strength polyester cord fabric.
Wire: High tensile, spring steel wire
Cover: Weather resistant EPDM, SBN o NBR
Features:
Convenient to use
Flexible
High strength and abrasion resistant
Safe, can bear long time work
ID | (Mpa) Working Pressure | (m) Length | (mm) Pipe Wall Thickness | |
mm | (mm) T | |||
250 | ±2 | 60mm mercury column
Max vac 650mm high | 1-3 | 31-32 |
300 | ±2 | 1-3 | 34-37 | |
414 | ±2 | 1-3 | 35-37 | |
560 | ±3 | 2-3 | 40-45 | |
600 | ±3 | 2-3 | 40-45 | |
700 | ±3 | 2-3 | 40-45 | |
800 | ±4 | 2-3 | 50-52 | |
900 | ±4 | 2-3 | 55-58 | |
FAQ
We are the Top manufacturers of Air Conditioning Hose In China. So we can offer you the best service as below:
1.Free sample
2.Factory OUTLEF
3.Reasonable price with excellent quality
4.long warranty with good after-sales service
5.You can find us on the two session of the Canton fair every year
