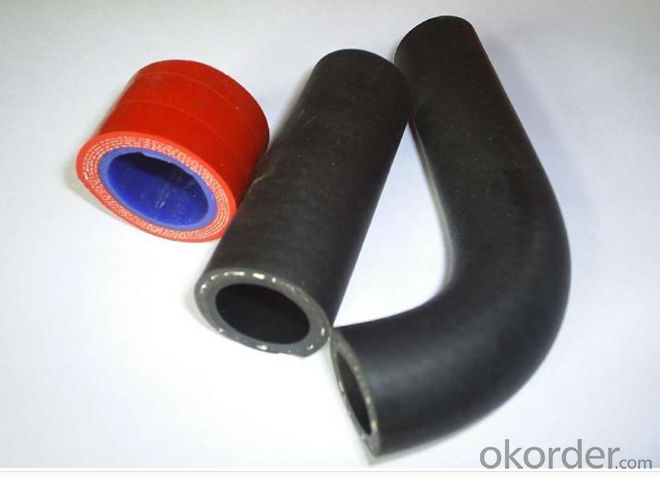

Rubber Hose/Rubber Suction Hose in Hot Selling/rubber air hose smooth surface
SAE J2064 rubber car Air Conditioner Hose ,R-134a Air Conditioning Hose used for the air system of car, bus, track ect.
China Rubber Air Hose, Rubber Air hose Assembly with quick coupler
SAE J2064 rubber car Air Conditioner Hose ,Construction materails:
Tube: CSM
Barrier: NYLON
Buffer: NBR
Reinforcement: GUM CHICLE THREAD.
Cover: EPDM
Color: Black .
Application Temperature: -40℃-+135℃
Application Media: R134a
Standard: SAE J2064
Certification: ISO/TS:16949:9001 Application: Mainly used for conveying R12, R134a etc medium in automobile air-conditioning system like bus transit system.
Specification as below list:
R134a Air Conditioning Hose(A10) | |||||
No. | Specification | I.D.(mm) | O.D(mm) | Working Pressure(Mpa) | Burst Pressure(Mpa) |
QRT01 | 5/16’’ | 8±0.4 | 15.2±0.5 | 3.5 | 23 |
QRT02 | 7/16’’ | 11.5±0.4 | 18.4±0.5 | 3.5 | 22 |
QRT03 | 1/2’’ | 13±0.4 | 21±0.5 | 3.5 | 20 |
QRT04 | 5/8’’ | 15.5±0.4 | 23±0.5 | 3.5 | 21 |
R134a Air Conditioning Hose(A20) | |||||
No. | Specification | I.D.(mm) | O.D(mm) | Working Pressure(Mpa) | Burst Pressure(Mpa) |
QRT05 | 5/16’’ | 8±0.4 | 19±0.5 | 3.5 | 21 |
QRT06 | 13/32’’ | 10±0.4 | 23±0.5 | 3.5 | 21 |
QRT07 | 1/2’’ | 13±0.4 | 25.4±0.5 | 3.5 | 22 |
QRT08 | 5/8’’ | 16±0.4 | 28.6±0.5 | 3.5 | 18 |
FAQ
1. Are you a trader or manufacturer?
We are manufacturer. we have our own factory.
2. What's your main products?
Rubber air hose, rubber water hose, rubber fuel and oil hose, rubber sandblast hose etc..
3. How is your price and quality?
We can ensure you the best quality and lowest price in market.
4. Do you produce smooth or cloth wrapped cover?
Both, we can produce both cover, which depends on customer’s request.
5.Do you produce embossed marking?
Yes, we do provide embossed and printing markings with different color.
6. Does your product have different color hose?
Yes, we currently provide black, grey, red, blue and yellow, etc.
7. What is your delivery time?
Sample order : 3 days , bulk order : 7 days
8. Can you provide sample?
Yes.
9. What's the shipping way?
We can do all in accordance with customers’ detailed requirements.
10. Can you accept OEM?
Yes.
11. How long does my order take to be delivered?
It usually takes 5 to 15 days, which generally depends on the quantity of your order and our storage.
