Loading Port:Tianjin
Payment Terms:TT or LC
Min Order Qty:10000 m.t.
Supply Capability:1000000000 m.t./month
Rock wool insulation refers to a type of insulation that is made from actual rocks and minerals. It also goes by the names of stone wool insulation, mineral wool insulation, or slag wool insulation. A wide range of products can be made from rock wool, due to its excellent ability to block sound and heat. This type of insulation is commonly used in building construction, industrial plants, and in automotive applications.
The Manufacturing Process
Melting / Forming into fibers /Continuous-filament process/Staple-fiber process/ Chopped fiber/ Rock wool / Protective coatings /Forming into shapes
● FEATURES
Thermal Insulation
Fire Safety
Acoustic Control
No Corrosion
Environmental friendly
Moisture Resistance
Energy Conservation & Emissions Reduction
Different raw material: Our rock wool is mainly made by Basalt and other natural ores. The raw material for other so-called rock wool is mineral slag. Different raw material, different features.
Different corrosion resistance. Our rock wool have good corrosion resistance. non-corrosive for metal. But the mineral slag wool is different. In high humidity environment, CaS in mineral slag will have chemical reactions and produce corrosive when contact with metal.
Different working life. The working life for mineral slag is very short and Durability is very low because of higher CaO and MgO in slag. The efflorescence for mineral Slag is easy and also effect the working life. The
Different heat resisting. The heat resisting for rock wool(Basalt) is higher than mineral Slag wool. Our operating temperature can reach 800℃.But for Slag wool ,can not higher than 675℃.The features for our rock wool is totally superior to Slag wool.

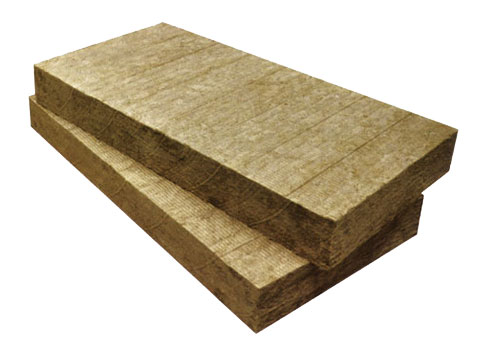

3. Rock Wool Blanket For Rooing Ceiling Wall Images
4. Rock Wool Blanket For Rooing Ceiling Wall Specification
ROCK WOOL BLANKET & BOARD
Standard Size
Product Blanket Board
Density (kg/m3) 60-100 40-200
Size: L x W (mm) 1200X3000-6000 600X1200
Thickness (mm) 30-150 30-100
Remark:
Other sizes are available upon request.
Facing materials can be applied upon request.
Standard Size
Product Blanket Board
Density (kg/m3) 60-100 40-200
Size: L x W (mm) 1200X3000-6000 600X1200
Thickness (mm) 30-150 30-100
Remark:
Other sizes are available upon request.
Facing materials can be applied upon request.
Rock wool PIPE
Standard Size
DIA Thickness (mm)
inch mm 25 30 40 50 60 70 80 90 100 120 150
1/2’’ 22 ● ● ●
3/4’’ 27 ● ● ● ● ● ● ●
1’’ 34 ● ● ● ● ● ● ●
1-1/4’’ 43 ● ● ● ● ● ● ● ● ●
1-1/2’’ 48 ● ● ● ● ● ● ● ● ●
2’’ 60 ● ● ● ● ● ● ● ● ●
2-1/2’’ 76 ● ● ● ● ● ● ● ● ●
3’’ 89 ● ● ● ● ● ● ● ● ●
3-1/2’’ 108 ● ● ● ● ● ● ● ● ●
4’’ 114 ● ● ● ● ● ● ● ● ● ●
5’’ 140 ● ● ● ● ● ● ● ● ● ●
6’’ 169 ● ● ● ● ● ● ● ● ● ●
8’’ 219 ● ● ● ● ● ● ● ● ●
10’’ 273 ● ● ● ● ● ● ● ● ●
12’’ 325 ● ● ● ● ● ● ● ● ●
14’’ 356 ● ● ● ● ● ● ● ●
15’’ 381 ● ● ● ● ● ● ● ●
16’’ 406 ● ● ● ● ● ● ● ●
18’’ 456 ● ● ● ● ● ● ● ●
19’’ 483 ● ● ● ● ● ●
20’’ 508 ● ● ● ● ● ●
22’’ 558 ● ● ● ● ●
24’’ 610 ● ● ● ● ●
5.FAQ
We have organized several common questions for our clients，may help you sincerely：
① What’s the mainly material for rock wool？
Rock wool is called a mineral wool because it is made primarily from basalt, an igneous rock,
②What’s the mainly type for rock wool？
rock wool insulating products are available in loose-fill form and as batting. Batts, or blankets, are thick slabs of insulation that may have a kraft paper facing.
③How you control the quality?
During the production of fiberglass insulation, material is sampled at a number of locations in the process to maintain quality.
