Loading Port:Ningbo
Payment Terms:TT OR LC
Min Order Qty:200 pc
Supply Capability:90000 pc/month
Why choose us?
The longest testing times of this product.
The mature production line, skilled production workers.
Thirty years of experience in industrial design and production.
Rich product design and the existing packing,to save your time and cost.

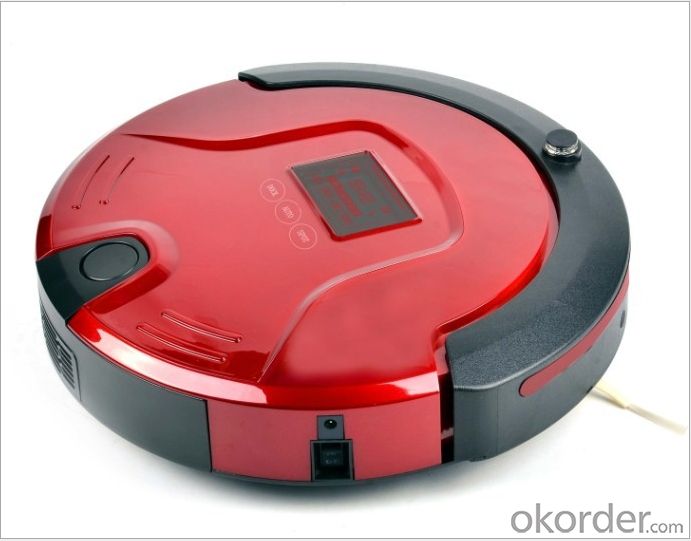

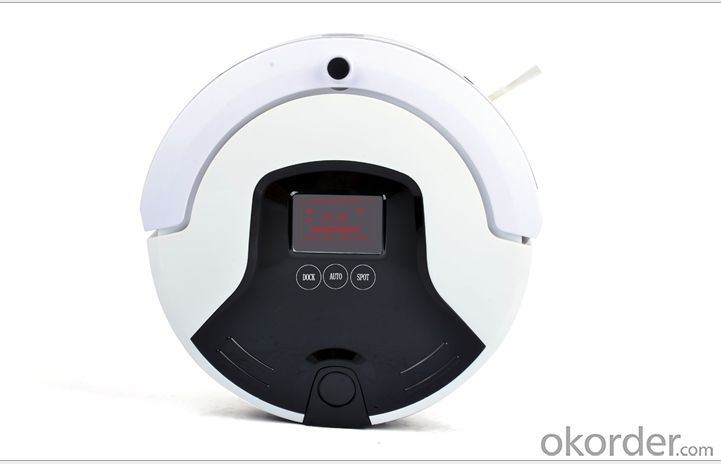

Robotic Vacuum Cleaner Vacuum Cleaner (QQ5-W)
This product is a revolutionary robotic vacuum cleaner. It utilizes:
2 Rolling brush by triangle allocation
2 Side brush
2 storey dust bin unique design
2 option clean method---Non-collided and Soft-touched
6 drop sensors to keep unit from falling off
High and silence vacuum suction
Auto self charging base ----Smart and efficiency
Ultraviolet light to disinfect air from air outlet
Spot spiral movement---- Used remoter Mode 1, from inside to outside cycling
All cleaning parts could renew from unit outside and by yourself
Cleaning a wide variety of floor types
Optimum dimension 33*8 cm (13 *3.1 inch) ----Enables cleaning under beds and furniture
Model NO.: QQ5
Application: Dry
Feature: Without Bag
Classification: Robot Vacuum Cleaner
Type: Cyclone
Certification: CE
Color: Black ,white
Diameter :33cm
Height8cm
Weight:3.9kg
Dust Bin Capacity:0.32 liter
Speed :18.5~20.5 cm/sec
Voltage: DC 14.4V
Power consumption: 25W
Remote controller type :IR
Indicator type :LED with pattern
Noise Level: Max. 55dB
Suction Power :2.0m/sec
Sweep capacity :rubbish size L: 6cm , Section : 0.9cm x 0.9cm
Cleaning Algorithms
1. Special Bounce
2. Spiral
3. Along Wall
4. "S" Shape
5. Polygonal Spiral
Charging Time: 2.5hours
Battery : Ni-MH 2500mA
Running Time: Min. 70 minutes
Room coverage :4.8m*4m in 20min.
Crawling up ability :8.0mmMax.
Non-colliding-sensor detected heightmin. 5.5cm
Non-colliding-sensor detected width45°in ahead >6.5cm ; -22.5°~-82.5°>2.5cm ; +22.5°~+82.5°>2.5cm
Non-colliding-sensor detected distance<5cm
SPECIFICATION
ColorBlack, whiteRunning TimeMin. 70 minutes
VoltageDC 14.4VWorking Area4.8M*4.0Min 20 min.
Power25WCharging Time2.6hours
Noise LevelMax.65dBG...W4.6KG
Size33cm*8cm(Dia*H)N. W3.6KG
BatteryNi-MH2500mAGift box size52.7cm*39cm*13.9cm
Dust Bin Capacity320mlCarton Size54*58.5*41cm(4PCS/CTN)
What`s in the colorbox?
1 XMain unit
1 X Charging base
1 X box of spare parts ( side brush *2 + filter* 2 )
1 X Remote Control
1 X Battery pack
1 X Charger
1 X Manual
1 X Cleaner brush ( on the top of dust bin)
1 X Rolling brush cleaner ( on the back of charging base )
| Product Dimensions | 13 (Diameter)X 3.15 Inches(H) |
| Weigh | 3.9kg |
| Suction Power Speed | 1.2meters Per Second, 11500rmp Vacuum Motor |
| Fast Adapter/ Charger | Output 20VDC 1000mA Input: 100-240V 50-60Hz |
| Battery | Ni-MH 14.4V, 2.5ah Rechargeable, 2.6 Hours of Char |
| Noise | 55dbat Distance of 1m (3ft) |
| Lift Time of UV Ray | 6000hours Continuously |
| Capacity of Dust Bin | 0.32 Liter |
| Moving Speed of Machine | 18.5-20.5cm/Sec |
| Types of Movement | 5 Types: Spot Spiral, Special Bounce, Along Wall, |
