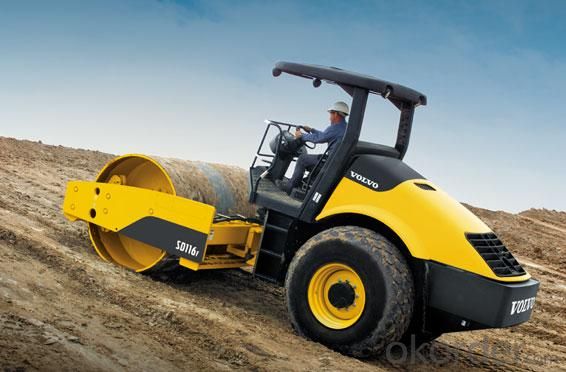

Road Roller 16 Ton Hydraulic Drum

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 PCS

Supply Capability:1000 PCS/month

Product Description:

Road Roller 16 Ton Hydraulic Drum

Product Details

Basic Info.

Model NO.:SWR216H



Type:Road Roller

Working Method:Vibration



Axle:Single Drum with Two Rear Tires

Grinding Wheel Type:Single Smooth Drum



Compaction Depth:40cm

Engine Type:Diesel Engine



Travel Speed:35cm/s

Centrifugal Force:260/320 Kn



Certification:ISO 9001:2008

Condition:New



Operating Weight:14 Ton

Drum Width:2100 Mm



Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOWAY



Packing:Naked

Origin:CHINA



HS Code:84294019

Production Capacity:200 Units/Month

Product Description

SWR216H Main Specification
Engine Model Cummins 6BT5.9
Rated Power 110KW
Operating Weight 35274 lb
Drum Width 6.9 ft

SWR216H road roller is equipped with Cummins 6BT5.9 engine, which has a large power reserve coefficient and meets the diesel engine's performance demands when the roller is working in locations where altitude is over 4, 000 meters. The roller is fully hydraulic and fully driven, with the variable frequency and amplitude. It adopts the articulated steering and the four-gear stepless variable drive, thus taking the lead in this field of technology. When fuel is off, the brakes are automatically applied, so it is safe and reliable.

EngineModel6BT5.9

Power rate132KW

Rated speed2000rpm

Type Vertical, water cooled, direct injection

Rated fuel consumption210 g/kw· H
Traveling performance

Grade ability35%

Traveling speed (km/h)0-11
Axle

Drive typeDual wheel drive

Front axle load9600kg

Rear axle load6400kg
Working equipment

TypeHydraulic vibration

Frequency28/35Hz

Amplitude  2.0/1.0mm

Static linear load457N/cm

Dynamic linear load609N/cm

Drum shell thickness32mm

Centrifugal force(high ampl. )320KN

Centrifugal force(low ampl. )260KN

Traveling pump90R075

Drive motor (F/R)MK18/51D110

Working pressure42Mpa
Brake system


Service brakeOil-cut off braking

Parking brakeHand operated drum brake
Steering system

typeArticulated frame, hydraulic steering

Steering cylinderTwo cylinders

Steering pumpGear pump

Working pressure13MPa

Steering angle± 35°

Min. Steering radius7500mm(outer side) 5400mm(inner side)
Service capacity

Hydrauclic tank180L

Drive alxe central gear box25L

Fuel tank  200L

Engine crank case19L
Dimensions


Tyre specification23.1-26

Overall length5820mm

Overall width2278mm

Overall height3050mm

Drum width2130mm

Wheel base3160mm

Drum Dia1570mm

Ground clearance 472mm
