Loading Port:Taibei
Payment Terms:L/C,T/T
Min Order Qty:1000 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month

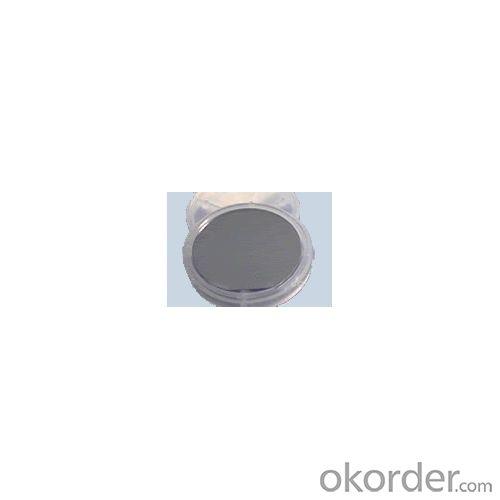

Red / Orange/ Yellow/ Green LED Wafer Chip Spec
Description:
AlGaInP MOCVD EPI Wafer s apply to MOCVD process
Size:
Growth | MOCVD |
Diameter | 2” |
Thickness | 270/350 + 20um |
Structure:
High-Dopant level | P-GaP |
Window level | P-AlGaInP |
| MQW |
Emitting Area | N-AlGaInP |
DBR | GaAs/AlAs |
Substrate | N-GaAs 350um |
Parameter:
parameter | Condition | Min. | Typ. | Max. | Unit |
Forward Voltage(Vf1) | If=10μA | 1.35 | -- | -- | V |
Forward Voltage(Vf2) | If=20mA | -- | -- | 2.2 | V |
Revise Current(Ir) | Vr=10V | -- | -- | 2 | μA |
Wavelength(λd) | If=20mA | 620 | -- | 645 | nm |
FWHM(Δλ) | If=20mA | -- | 10 | -- | nm |
length/mcd:
Item | Unit | Red | Orange | Yellow | Yellow/Green |
Wave Length (λD) | nm | 615~ 622/OR | 595 ~ 602/YO | 580 ~ 587/LY | 565 ~ 575/YG |
Wave Length (λD) | nm | 620~ 627/LR | 600 ~ 607/LO | 585 ~ 592/SY |
|
Wave Length (λD) | nm | 625~ 632/SR | 605 ~ 612/SO | 590 ~ 597/DY |
|
Wave Length (λD) | nm | 630~ 637/DR | 610 ~ 617/DO |
|
|
Wave Length (λD) | nm | 635~ 645/UR |
|
|
|
CL-CA*R109 Wavelength 620-627nm / 625-632 nm
Level | LG | LH | LI | LJ | LK | LL | LM | LN | LO |
Iv avg(mcd) | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
CL-CA*R109 Wavelength 630-637 nm /635-645 nm
Level | LB | LC | LD | LE | LF | LG | LH |
Iv avg(mcd) | 15 | 20 | 25 | 30 | 35 | 40 | 50 |
Packaging & Shipping
Packing:
Standard packing inside, cartons outside
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
Air freight | 3-10 business days |
By Sea | 30-40 business days |
1. 3-5 business days for Sample Orders; 7-30 business days for Bulk Orders for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
Application case:
Indicator and backlight for audio and vedio equipment
Indicator and backlight for office and family equipment
Flat backlight for LCD's, switches and symbols
Light pipe application
General use
Our service:
with 10 years experience in exporting sales staff will service you.
High quanlity: help you to avoid purchaseing risk.
Short delivery: save your time
competitive price: the price is not the lowest but the highhest cost performance.
