Product Description:

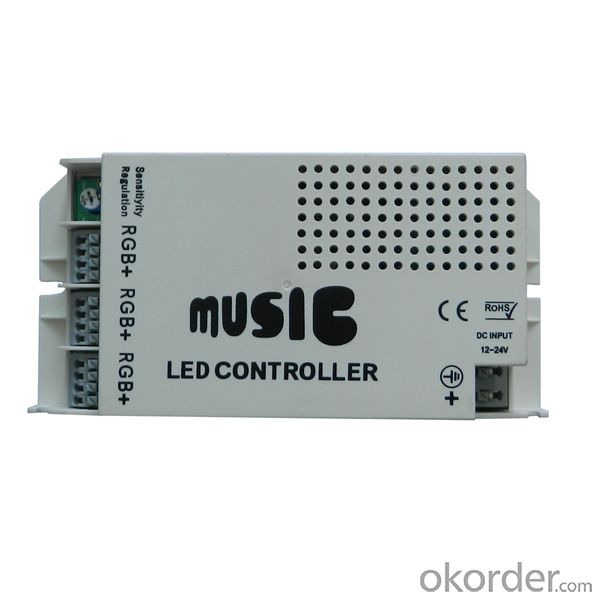

This Music controller is a type of universalhigh performance power controller, it adopts the most advanced PWM(pulse width modulation) control technology. Can be controlled all kinds of constant voltage full-color LED lighting products.
Main features:
●Infrared wirelessremote control
●Voice receivingsensitivity is adjustable

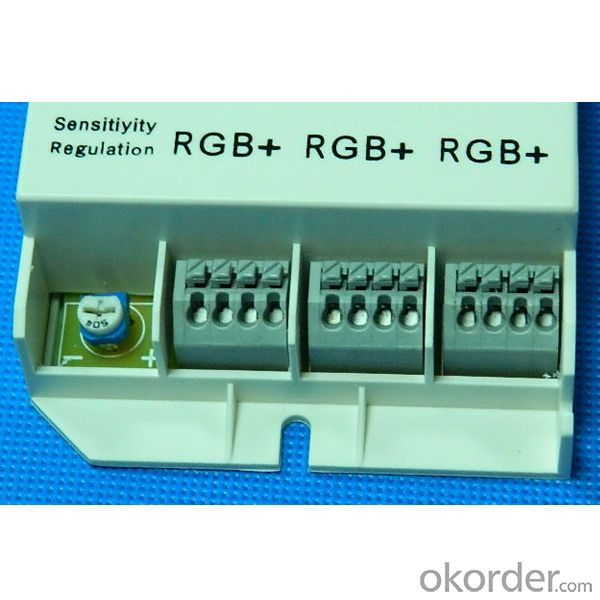

●3 set of output can realize more convenient forwiring
●Adopt theself-locking socket
●2 kinds of acoustic change mode optional
●Wide input voltagehigh power output
●16 kinds ofstatic color optional
●Speed and brightness areadjustable
TechnicalParameters:

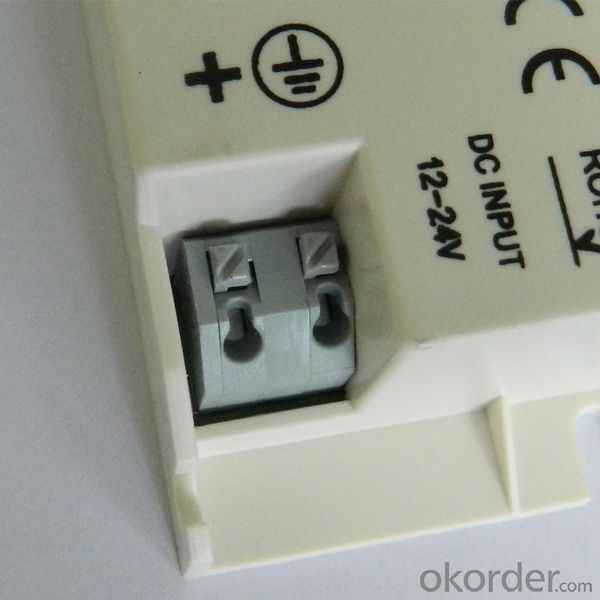

Input voltage：DC12~24V
Output current：<3A/CH
Output gray level：RGB256 lever each
Remote control distance：5~10M
Working temperature：-20℃-70℃
controller size：L155×W75×H30mm
Remote size：L85×W52×H7mm
Direction for use:
● Connect the load line first, and then connectthe power cord; Before power on pls ensure no short circuit between cables.
● This controller is controlled byInfrared remote control,user can remote controlled the controller to turnON/OFF,choose 16 kinds of static color,2 kinds for dynamic models and two kindsof voice control mode,in static mode can adjust the brightness ,in dynamic model can adjust the changing speed.

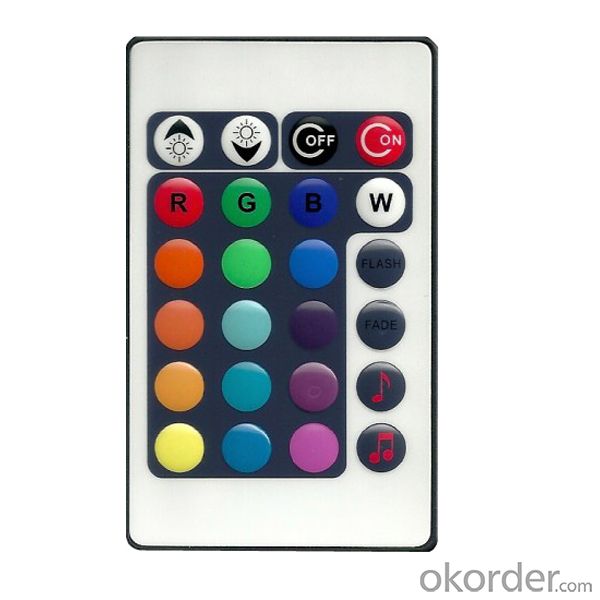

● The remote control button function are as thefollowing:
Typical Applications:
Cautions:
1、Thisproducts Input voltage is DC12-24V,other input voltage are not allowed.
2、Leadwire should be connected correctly,according to the wire color and the connectingdiagram offers.
3、Overloadare prohibited.
