Loading Port:Shanghai
Payment Terms:TT or LC
Min Order Qty:1 watt
Supply Capability:10000 watt/month
l Volumetric Energy Density increased by 23.5%
l LED power display screen and switch buttons
l Rugged stainless steel body ensures 5 years warranty
l High protection level IP65
l Support 1C charge / discharge and excellent heat dissipation design
l Quick connection and insulation protection
l Stainless steel handles guarantees 3000 fatigue tests
l Supports four external connections in series with voltage
Product Spec | |

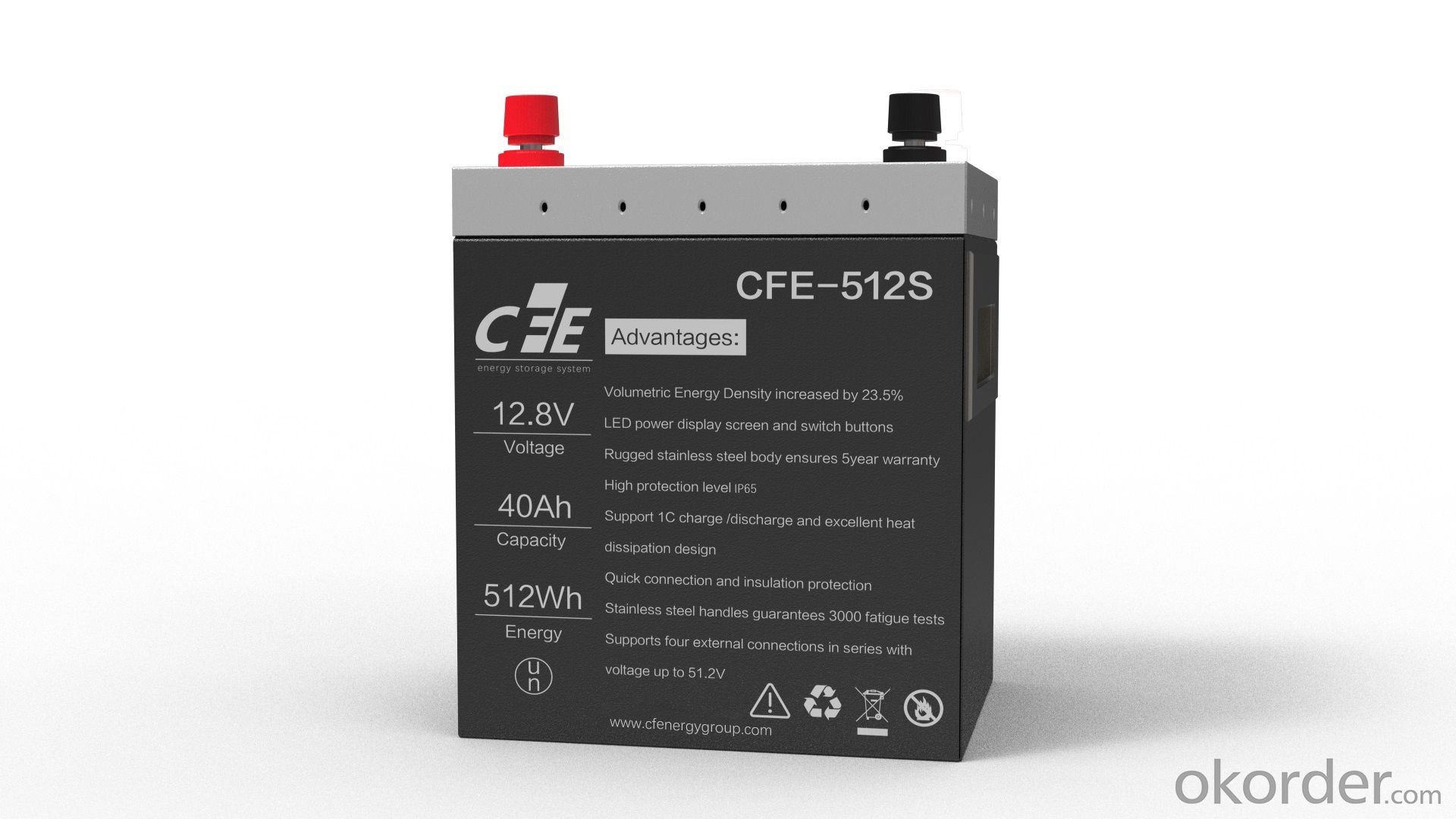

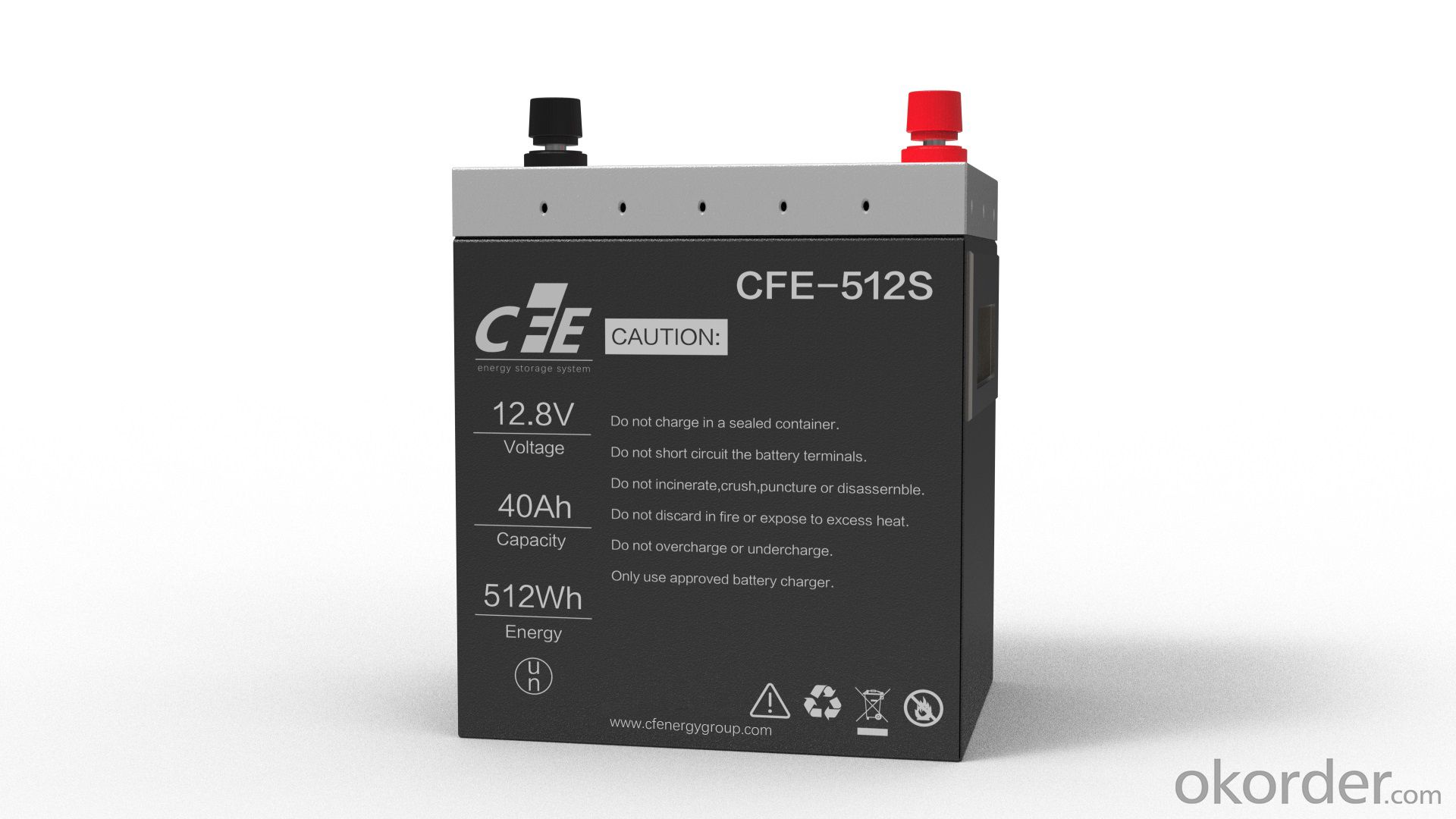

Name | CFE-512S |
Model | 12.8V40Ah |
Nominal Voltage | 12.8V |
Nominal Capacity @1C | 40Ah |
Charge Voltage | 14.8V |
Charge Current Max Continuous | 20A |
Discharge Current Max Continuous | 40A |
Discharge Voltage Minimum | 10.8V |
Pulse Current 5 Sec | 60A |
Weight | 5.9kg±0.5kg |
Dimensions L*W*H（mm） | 180*140*210 |
