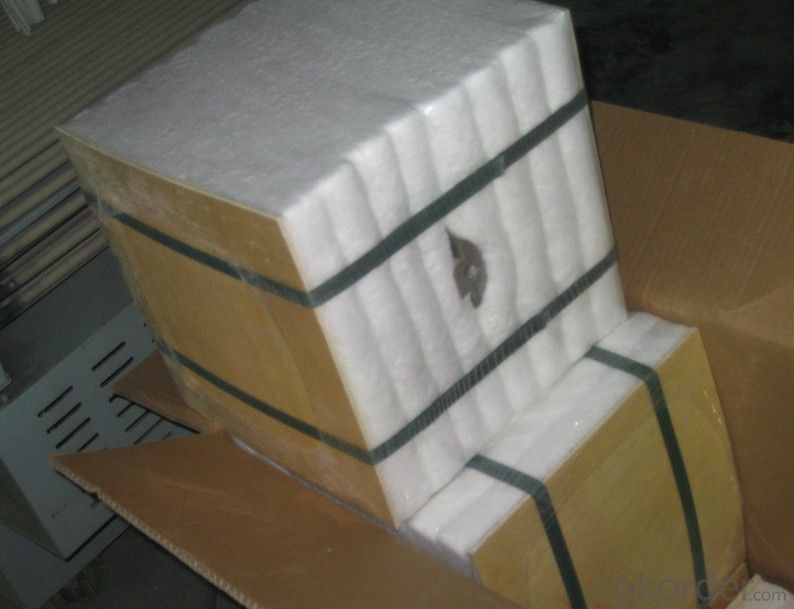

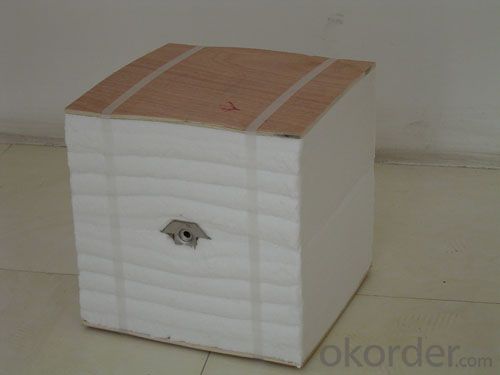

Ceramic fiber module, also called aluminum silicate fiber module, is a ceramic raw material coal gangue, after calcining, grinding, after electrify high temperature melt into liquid, with roller thrown into ceramic fiber cotton and further processed into ceramic fiber module. On the basis of the characteristics of ceramic materials, ceramic fiber module is fireproof, heat preservation, heat insulation, sound-absorbing, energy-saving features, widely used in petroleum chemical metallurgical machinery building materials and other industries.
Main Technical Property Indexes
Item | SYGX-289 | SYGX-389 | SYGX-489 | |
AL2O3 % | ≥45 | ≥45 | 52-55 | |
AL2O3+SIO2 | ≥97 | ≥99 | ≥99 | |
Fe2O3 % | ≤1.0 | ≤0.2 | ≤0.2 | |
Density(kg/m3): | 220±10 | |||
Maximum temperature (°C) | 1260°C | 1400°C | ||
Thermal conductivityW/m.k ≤ | 200°C | 0.045-0.060 | ||
400°C | 0.095-0.120 | |||
600°C | 0.160-0.195 | |||
Heat the permanent linear change(%) | 1000°Cx24h≤-3 | 1100°Cx24h≤-3 | 1200°Cx24h≤-3 | |
Typical Application
Ceramic fiber module can directly fixed on the industrial kiln furnace shell steel anchor nail, has good fireproof and heat insulation effect, improving the integrity of kiln refractory and heat insulation, promotes the progress of kiln lining technology classification temperature 1050-1400 ℃, it is widely used in petroleum chemical metallurgical machinery building materials and other industries.
