Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 pc
Supply Capability:100000 pc/month
Product description
Description | ||

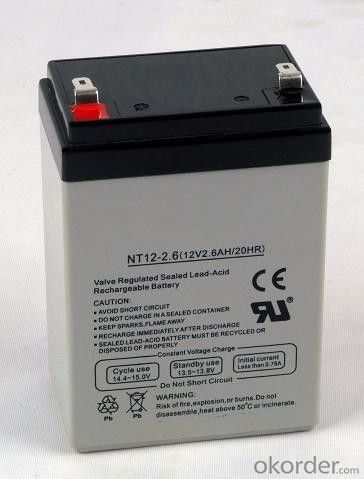

Model | 12v2.6ah | |
Nominal Voltage | 12V | |
Nominal Capacity (20hour rate) | 2.6Ah | |
Cyclic Life | 50%(C20) Depth of discharge | 600Times |
Capacity 25℃ (77°F) | 20 hour rate (0.13A) | 2.6Ah |
10 hour rate (0.247A) | 2.47Ah | |
5 hour rate (0.42A) | 2.08Ah | |
1 hour rate (1.69A) | 1.69Ah | |
internal Resistance | Full Charged Battery 25℃(77°F) | ≤60mΩ |
Capacity Affected By Temperature (20 Hour Rate) | 40℃ (104°F) | 102% |
25℃ (77°F) | 100% | |
0℃ (32°F) | 85% | |
-15℃ (5°F) | 65% | |
Self-Discharge at 25℃ (77°F) | Capacity after 3 month storage | 90% |
Capacity after 6 month storage | 80% | |
Capacity after 12 month storage | 62% | |
Float Life | 25℃(77°F) Float charge at 13.8V | About 3 Years |
Charge (Constant Voltage)25℃ (77°F) | Cycle | Initial Charging Current Less than0.78A Voltage14.6-15.0V |
Float | Voltage 13.5-13.8V | |
Float Charge(Constant Voltage) | Voltage13.5-13.8V | |
Usage | UPS/Solar/Wind/Alarm/Security/Telecommunication/Emergency Lighting System. | |
Electronic Instrument/ Fire-fighting Equipment/ Standby Power Supply/ Etc | ||
Warranty | 2 Years | |
OEM Service | Accept | |
Color | Black, Gray | |
Certificate | ISO/CE/UL/ROHS | |
Battery Construction | |||||||
Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw matterial | Lead dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
Dimension | ||
Battery (L×W×H) | mm±1 | 70×47×106 |
inch | 2.76×1.85×4.18 | |
Box (L×W×H) | mm±2 | 310×266×126 |
inch | 12.2×10.5×4.96 | |
Quantity Per Box | 20 PCS | |
Net weight Per Cell | 0.80 Kg±10g | |
Net weight Per Box | 16.0Kg | |
Gross Weight | 16.3Kg | |
Details
FAQ
Q1: What is your terms of payment?A: We accept T/T, L/C for big amount,PayPal, Western Union, Small-amount payment,
Q2: How's the delivery time ?
A:It will take about two weeks for production usually.
Q3: How about the standard of package?
A: For the small capacity, it use carton, but for big capacity, we should use strong wooden case
for protection.
Q4: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case, and you can offer your logo.
Q5: How to maintain the battery?
A:The battery should be stored in clean, dry, ventilated, dark environment when not using, keep it
after full charge, recharge it every 3 months or 6 months.
Q6: How can you tell if a battery is good or bad?
A: You should first check the battery for defects such as a broken circuit, a short, or a broken container.
If an outward problem is not apparent, then you will have to check the battery's capacity using known measuring techniques to ascertain the problem.
Q7: What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, ROHS,SGS.
