Loading Port:Shanghai
Payment Terms:TT or LC
Min Order Qty:20 kg
Supply Capability:100000000000000 kg/month
Technial Data Sheet of Ramming Mix for Induction Furnace for Iron & Steel Industry
CODE | MATERIAL | PHYSICAL PROPERTIES | CHEMICAL ANALYSIS (WEIGHT %) | |||||
Particle size（mm） | Fe2O3（%） | Cr2O3（%） | Al2O3（%） | CaO (%) | MgO (%) | SiO2 (%) | ||
IF-QZ | Quartz Ramming Mix | 0~6 | 98 | |||||
IF-Mg1 | Magnesia Ramming Mix | 0~10 | 4 | 1 | 2.5 | 91 | 1.5 | |
IF-Mg2 | Magnesia Ramming Mix | 0~10 | ＜ 1.5 | 2 | 96 | ＜ 2 | ||
IF-MgAl | Magnesia Alumina Ramming Mix | 0~6 | 0.5 | 8 | 1 | 90 | 0.5 | |
IF-MgAlS | Magnesia Alumina Mix powder Ramming Mix | 0~6 | 87 | 1 | 10 | 1 | ||
IF-MgCr | Magnesia Chrome Ramming Mix | 0~6 | 12 | 21 | 6 | 58 | 1.5 | |
IF-MgS | Magnesia Mix Ramming Mix | 0~6 | 17 | 80 | ||||
IF-Al | High Alumina Ramming Mix | 0~8 | ＞ 70 | ＜ 26 | ||||

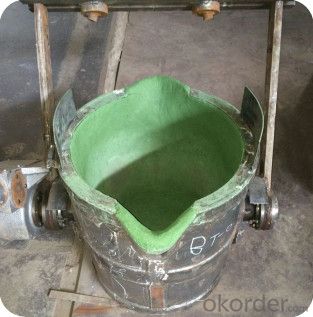

Product Photo of Ramming Mix
Installation of Ramming Mix
Questionnaire for Induction Furnace
ITEMS | CONTENT | ||
★Usually smelt metal types: | ( ) | ||
★Furnace Size/Ton | ( ) | ||
Furnace dimension | Inside diameter/mm | ( ) | |
Height/mm | ( ) | ||
Turnover rate (Tap to Tap time) | Normal heating up time: | ( ) | |
Continuous working? | |||
★Casting temp(Tapping Temp) | Max/℃ Min/℃ | ( ) ( ) | |
★Working Lining(Current) | Lining Materials type | ||
Additives for lining | □ yes ( ) Exp: Boric acid, sodium silicate etc. □ No | ||
Wall thickness | ( ) | ||
Bottom thickness | ( ) | ||
Construction form | ( ) Example: Dry Vibrating or Ramming, water required or not, additives required or not | ||
Steel former | ( ) Example: Take out or smelt into the first heat. | ||
Average life/heats
| ( ) Example: Total life:200-220 with one repair on 30 – 50 heats | ||
★Installation tools | □ Aerodynamic Vibrator □ Electronic Vibrator □ Other ( ) | ||
Induction Coil Grout(Current) | Materials type | ||
Life/heats | ( ) | ||
★The type and amount additives for the slag reduction | ( ) | ||
Damage cause | ( ) Example: Spalling , Corrosion, cracks, leakage | ||
