1.high quality
2 competitive price
3 CE and ISO certificate
4 long service life

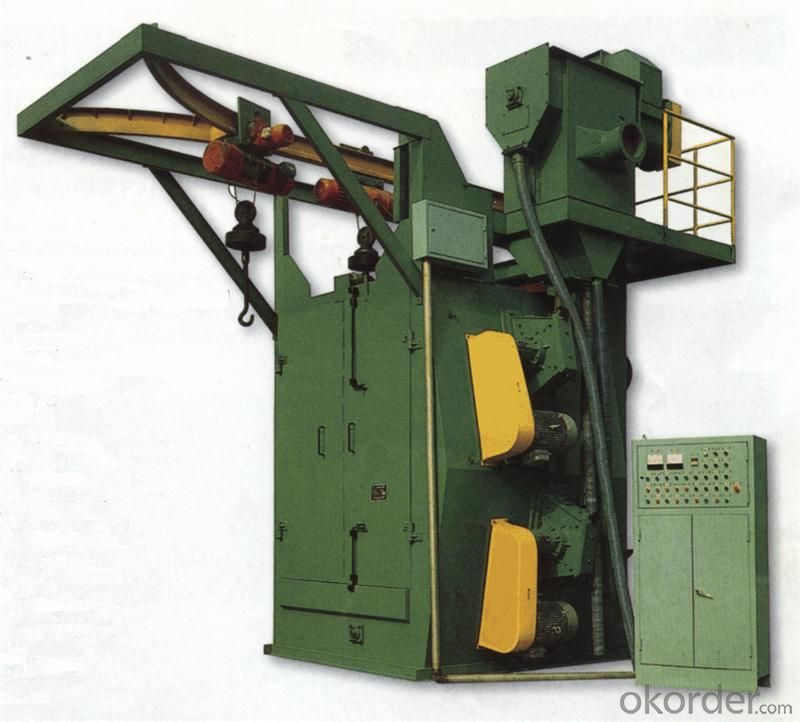

Q383 double route hanger chains shot-blasting machine
Product Description
This series uses multiple-step and rotating point fixed method to clean away the antiquated sand and oxidation layer from the surface quickly, and makes the surface bright and clean. It is mainly used for the fitting of vehicles such as the bolster, side frame, coupler and coupler yoked, also for cleaning the casting and workpieces with the similar size.
Main Parameters
diameter | Q383 | Q385 | Q3810 |
Cleaning workpiece size(mm) |
800*1200 |
1000*1500 |
1000*2500 |
Number of work position | 2 | 2 | 2 |
Quantity of impeller head | 4 | 4 | 6 |
Impeller head volume (KG/min) | 4*250 | 4*250 | 6*250 |
Impeller head power (KW) | 4*15 | 4*15 | 6*15 |
Max hangering weight (KG) | 300 | 300 | 1000 |
Productivity hanger/h | 30-60 | 30-60 | 40-60 |
Size of the cleaning room (mm) |
7680*2000*2900 |
7680*2000*2900 |
7680*2000*3800 |
Total air rate volume (m/h) | 17000 | 19000 | 19000 |
Total power( except for dust cleaning) KW |
73,15 |
73,15 |
114,72 |
