Loading Port:Guangzhou
Payment Terms:TT OR LC
Min Order Qty:1000 m²
Supply Capability:1000 m²/month

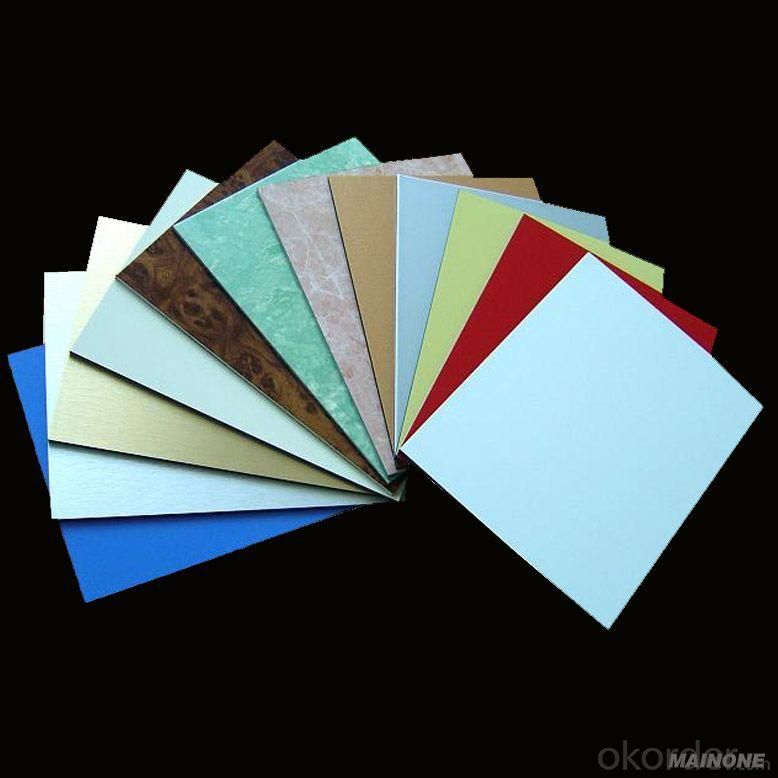

GLOBOND Plus PVDF ACP is exclusively made for exterior wall cladding, its excellent property comes from the front coating & its outstanding durability, PVDF (Polyvinylidene Flouride Carbon) Kynar 500 coating is achieved through the continuing roller coating system which is based on the most prestigious Durannar technology & the multiple layers are individually stoved at 220~260℃, the two cover sheets sandwich the same mineral core of polyethylene hardly inflammable.
Specification:
PRODUCT ITEM | TOTAL THICKNESS | ALU.THICKNESS | WIDTH | LENGTH | COLORS |
Standard | 4mm | 0.5mm | 1220,1250mm | 2440/3200mm | 10 kinds |
Option | 3,5,6mm | 0.3/0.4mm | 900,1270,1500mm | ≤4500mm | Custom colors |
Notes: Option items & custom colors are available subject to the respective minimum quantity.
size:2440*1220*2(mm)
GLOBOND Plus PVDF ACP’s Characteristics & Advantage
*Excellent coating property
GLOBOND Plus PVDF ACP, coated with Polyvinylidene Fluoride Resin from PPG Industries in U.S.A. & Becker Group in Sweden; it features no chromatism, good lightness, extreme rigidity & flatness; chemical salt spray; acid & alkali resistance for 20 years.
Quality Standard
The thickness of Aluminium Film is 0.5mm. The ACP with the total thickness of 4mm is fully satisfied to the GB/T 17748-2008 National quality system, and the others specification is fully satisfy to Globond's quality control system.
GLOBOND plus PVDF Application Scope
*Exterior curtain wall claddings, such as residential storied buildings. Hotels& commercial mansion etc.
